CNPM coupling panels
OPTOKON fiber optic coupling panels CNPM are manufactured from aluminum sheet metal and accommodate most common fiber optic couplings and hybrid adapters. OPTOKON offers a series of high density coupling panels that fit all OPTOKON´s fiber management products. These coupling panels are available with a variety of standard coupling styles in 6 and 8 counts. Custom coupling panels can be designed to suit your needs.
- All the most used adapters compatible
- High port density
- Single-mode and Multi-mode application
- SC footprint covers - LSH (E2000),
- SC, duplex LC types
- FC footprint covers - FC and ST types
- SC duplex covers - SC and LC quad types
- E2000 duplex footprint covers available
- PG9 covers (1, 2, 4 holes)
- Other types on request

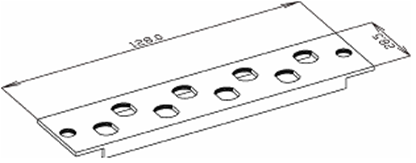

| Dimensions | 128 x 28.5 mm |  |

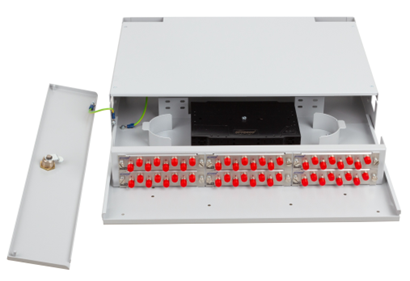

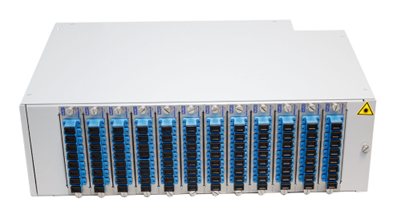

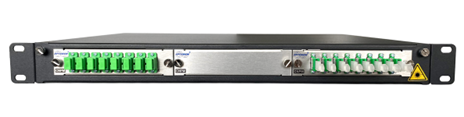

Examples of OPTOKON products:
 |
 |
| MCNP-3V-96-SC S-C-8 | OFDU-TS2-4-48-FC S-ZM/G |
 |
 |
| PUDOS-1E-128+2-SNMT/SC A | PUDOS-1E-128+8-SNMT/SC A |
|

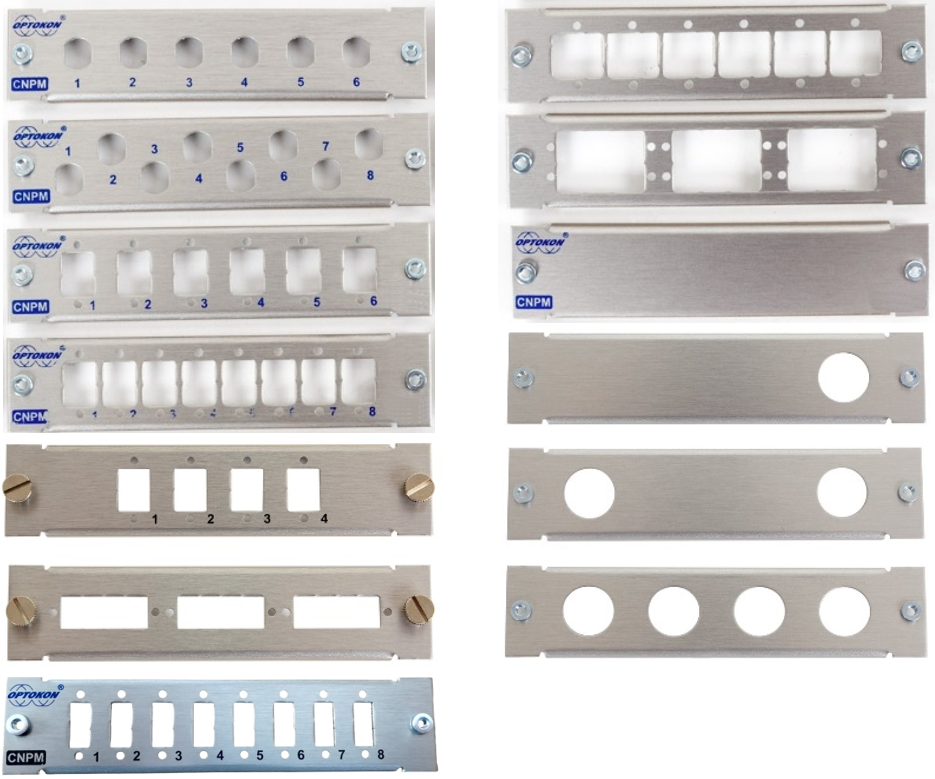

Fiber Optic Panels |
Number of Adapters |
Fiber Capacity |
|
STANDARD |
||
|
CNPM - ST/FC - 06, 08 |
6x, 8x ST and FC type |
6, 8 |
|
CNPM - E2/SC/DLC - 04, 06, 08 |
4x, 6x, 8x LSH (E2000) or SC type or Duplex LC type (all is SC footprint) |
E2, SC -> 4, 6, 8 DLC -> 12, 16 |
|
CNPM - DSC/QLC - 06 |
6x duplex SC or Quadruplex LC type |
DSC -> 12 / QLC -> 24 |
|
CNPM - DE2 - 06 |
6x duplex LSH (E2000) compact |
12 |
|
CNPM - 00 |
Blank panel |
– |
|
CNPM - PG |
Panel for one PG9 gland |
– |
|
CNPM - PG - 02 |
Panel for two PG9 gland |
– |
|
CNPM - PG - 04 |
Panel for four PG9 gland |
– |
|
CNPM - SNMT-1P |
Panel for 8x SENKO SN-MT-1port |
128 |
|
ON REQUEST |
||
|
CNPM - STP - 06 |
6x RJ-45 |
6 |
|
CNPM - MJ - 06 |
6x MT-RJ type |
12 |
|
CNPM - DMU - 06 |
6x duplex MU type |
12 |
|
CNPM - DSC/QLC - 03 |
3x duplex SC or Quadruplex LC type |
DSC -> 6 / QLC -> 12 |
|
CNPM - DLC - 06 |
6x LC duplex (not SC footprint) |
12 |
Notes: - All coupling panels are in silver color (Stainless Steel Look). The other color is available only on request with higher
amount of pieces.
- Adapters fixation is by mounting clip or by screw fixation (see order code).
- Other adapters type – only on special request with higher MOQ.

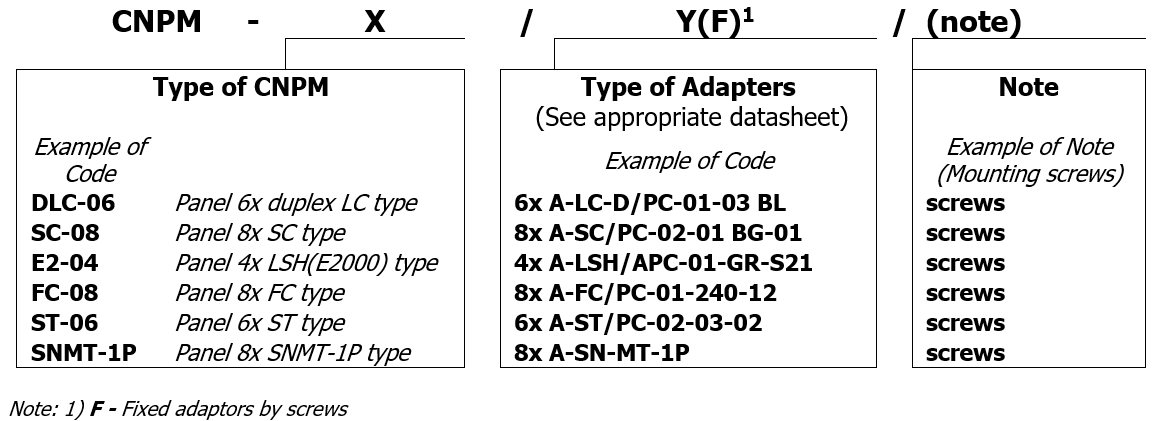

The Creation of CNPM Order Code with Adapters:
