TMVJ – Cabinet with slide-out shelf

TMVJ – Cabinet with slide-out shelf

The TMVJ Fixed Cabinet introduces a compact, low cost solution for fiber optic cable termination. The TMVJ series is ideal for rack-mounting in confined areas such as equipment enclosures where rack space is limited. The cabinet is equipped with slide-out shelf with splice tray holder. This allows easy access to the splicing area for optical network reconfiguration during operation and prevents damage to fibers prior to routing into adapters. The modular system allows splicing and termination up to 96 fibers in rack height 1U.

  • FTTH use - holder for minicables or microtubes
  • Designed for cable or microtubes termination
  • Compact robust design
  • Slide-out shelf provides unrestricted access
  • Changeable front panel, various adapters
  • Coupling adapters mounted on the face panel
  • Accommodates up to 96 fibers in 1 rack unit
  • Durable powder coat finish
  • Cable strain-relief and grounding provisions
  • Accepts the industry's most common connector types
  • Durable powder coat finish light grey colour (RAL 7038), optionally black colour (RAL 9005)
  • Material-Aluminium alloy - low weight and shipment costs

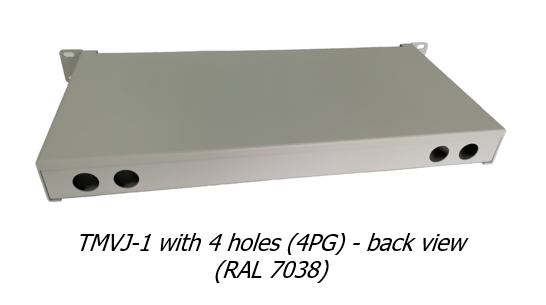

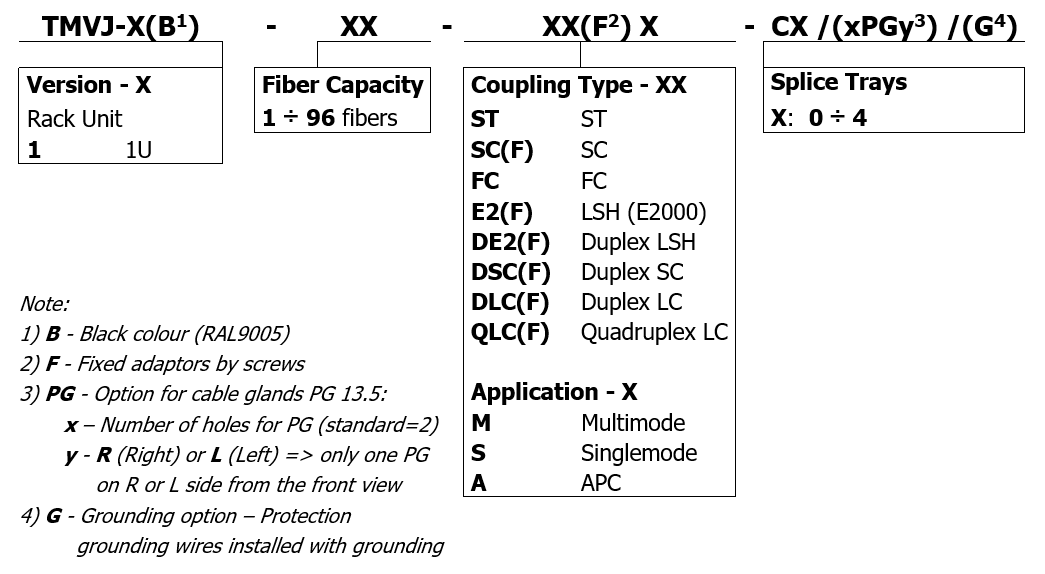

PART NUMBER

FIBER CAPACITY

RACK UNITS

DIMENSIONS (HxWxD) mm

SHIP WGT (kg)

FT-12-XX

FT-24-XX

TMVJ – 1

12 (24)1

24 (48, 96)1

1

44 x 432 x 221

1.4

Note:     1) Fiber capacity is valid for SFF connector types, double capacity for duplex adapters (DLC, DSC, QLC)



Coupling panels FT series available for the common used connector adapter types in following configuration:

FT-12-XX    12 pcs ST, FC, SC, DSC, DLC, QLC, E2000, ... adapters
FT-24-XX    24 pcs ST, FC, SC, DSC, DLC, QLC, E2000, ... adapters

Standard front panels:

FT-12-DSC

12x duplex SC adaptors

FT-24-DSC

24x duplex SC adaptors

FT-12-SC

12x single SC adaptors

FT-24-SC line

24x single SC adaptors in-line

FT-24-SC zigzag

24x single SC adaptors zigzag

FT-12-ST(FC)

12x single ST (FC) adaptors

FT-24-ST(FC)

24x single ST (FC) adaptors

FT-24-DE2

24x duplex E2000 adaptors



TMVJ-1-24-DLCF S-C-2/PGR RAL 7038
Internal layout – DLC/PC patch panel and 2 splice cassettes

Empty FT-24-DSC front panel

Grounding accessories

Plastic cable gland
PG 13.5

•    Rack-mount
•    FTTH networks
•    Customer premise remote cable drop
