SFP Transceivers - 1.25 Gbps

SFP Transceivers - 1.25 Gbps

The 1.25 Gbps series are hot pluggable Small-Form-Factor (SFP) duplex, bidirectional and CWDM transceiver modules expressly designed for high speed communica¬tion applications that requiring rates of up to 1.25 Gbps. The transceivers are manufactured with LC receptacle that is compatible with the industry LC connector standard. All SFP transceivers have the digital diagnostic monitor feature.



Unit

SX

LRM

LX03

LX

HX

ZX

UX

EZX

Average output power (min / max)

dBm

-9 / -3

-20 / -14

-11 / 3

-9 / -3

-5 / 0

0 / 5

0 / 5

1 / 6

Receiver sensitivity

dBm

-18

-28

-19

-20

-24

-26

-31[i]

-33

Overload

dBm

0

-3

-3

-3

-1

-6

-6

-6

Maximum distance

km

550

1,5

3

20

40

80

120

160

Fiber type

-

MMF

MMF

SMF

SMF

SMF

SMF

SMF

SMF

Optical link budget

dB

9

8

8

11

19

26

32

36

Wavelength / laser type

nm

850 / VCSEL

1310 / FP

1310 / FP

1310 / FP

1310/FP, 1550/DFB

1550 / DFB

1550 / DFB

1550 / DFB

Table 1: Basic technical specifications according to distance.

Temperature:
OPTOKON is always trying to satisfy as much market demand as possible and with this in mind, almost all OPTOKON SFP transceivers are manufactured in the commercial (D), extended (E) and industrial (I) temperature ranges to provide you all possibilities you need for your application.

Code

Temperature

D

0 °C to + 70 °C

E

-10°C to + 80 °C

I

-40°C to + 85 °C

Safety and regulatory compliance

Electrostatic discharge (ESD)

IEC/EN 61000-4-2

Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022, Class B (CISPR 22A)

Laser Eye Safety

Class 1 laser product

Component Recognition

IEC/EN 60950, UL

ROHS

2002/95/EC

EMC

EN 61000-3

Digital diagnostics:
All OPTOKON SFP transceiver are assembled with digital diagnostic feature as a standard.

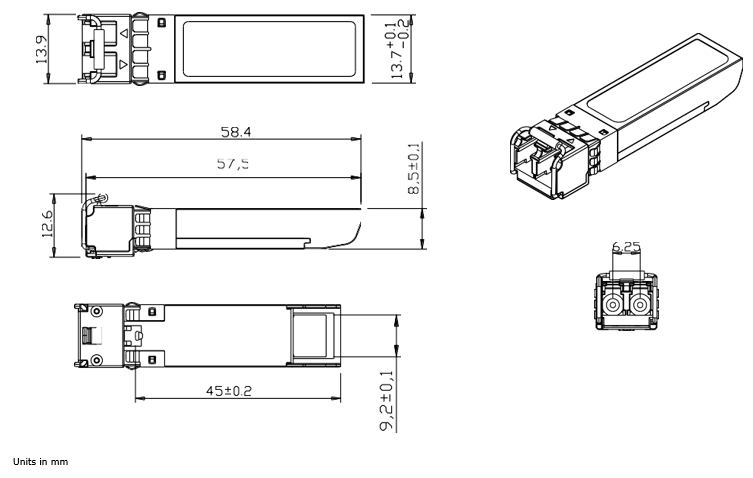

Transceiver dimensions schema

Standard series:

Part number:

Speed [Gbps]

Distance dd [-]

Wavelength [nm]

Temperature [-]

Fiber type [-]

Connector [-]

M125-V85-LP-SX-D-XX

1.25

0,550

850

D, E, I

MMF

LC

M125-F31-LP-LRM-D-XX

1.25

1,500

1310

D, E, I

MMF

LC

S125-F31-LP-LX-D-XX

1.25

20

1310

D, E, I

SMF

LC

S125-D31-LP-HX-D-XX

1.25

40

1310

D, E, I

SMF

LC

S125-D55-LP-HX-D-XX

1.25

40

1550

D, E, I

SMF

LC

S125-D55-LP-ZX-D-XX

1.25

80

1550

D, E, I

SMF

LC

S125-D55-LP-UX-D-XX

1.25

120

1550

D

SMF

LC

S125-D55-LP-EZX-D-XX

1.25

160

1550

D, E, I

SMF

LC

Bidirectional series:

Part number:

Speed [Gbps]

Distance - dd [-]

TX wavelength [nm]

Rx wavelength [nm]

Temperature [-]

Fiber [-]

Connector [-]

S125-W31/55-LP-LX03-D-XX

1.25

3

1310

1550

D, E, I

SMF

LC

S125-W55/31-LP-LX03-D-XX

1.25

3

1550

1310

D, E, I

SMF

LC

S125-W31/55-LP-LX-D-XX

1.25

20

1310

1550

D, E, I

SMF

LC

S125-W55/31-LP-LX-D-XX

1.25

20

1550

1310

D, E, I

SMF

LC

S125-W31/55-LP-HX-D-XX

1.25

40

1310

1550

D, E, I

SMF

LC

S125-W55/31-LP-HX-D-XX

1.25

40

1550

1310

D, E, I

SMF

LC

S125-W31/55-LP-ZX-D-XX

1.25

80

1310

1550

D, E, I

SMF

LC

S125-W55/31-LP-ZX-D-XX

1.25

80

1550

1310

D, E, I

SMF

LC

S125-W31/55-LP-UX-D-XX

1.25

120

1310

1550

D

SMF

LC

S125-W55/31-LP-UX-D-XX

1.25

120

1550

1310

D

SMF

LC

S125-W31/49-LP-LX-D-XX

1.25

20

1310

1490

D, E, I

SMF

LC

S125-W49/31-LP-LX-D-XX

1.25

20

1490

1310

D, E, I

SMF

LC

S125-W31/49-LP-HX-D-XX

1.25

40

1310

1490

D, E, I

SMF

LC

S125-W49/31-LP-HX-D-XX

1.25

40

1490

1310

D, E, I

SMF

LC

S125-W49/55-LP-HX-D-XX

1.25

40

1490

1550

D, E, I

SMF

LC

S125-W55/49-LP-HX-D-XX

1.25

40

1550

1490

D, E, I

SMF

LC

S125-W49/55-LP-ZX-D-XX

1.25

80

1490

1550

D, E, I

SMF

LC

S125-W55/49-LP-ZX-D-XX

1.25

80

1550

1490

D, E, I

SMF

LC

S125-W49/55-LP-UX-D-XX

1.25

120

1490

1550

D

SMF

LC

S125-W55/49-LP-UX-D-XX

1.25

120

1550

1490

D

SMF

LC

S125-B31/55-LP-LX03-D-XX

1,25

3

1310

1550

D, E, I

SMF

SC

S125-B55/31-LP-LX03-D-XX

1,25

3

1550

1310

D, E, I

SMF

SC

S125-B31/55-LP-LX-D-XX

1,25

20

1310

1550

D, E, I

SMF

SC

S125-B55/31-LP-LX-D-XX

1,25

20

1550

1310

D, E, I

SMF

SC

S125-B31/55-LP-HX-D-XX

1,25

40

1310

1550

D, E, I

SMF

SC

S125-B55/31-LP-HX-D-XX

1,25

40

1550

1310

D, E, I

SMF

SC

S125-B31/55-LP-ZX-D-XX

1,25

80

1310

1550

D, E, I

SMF

SC

S125-B55/31-LP-ZX-D-XX

1,25

80

1550

1310

D, E, I

SMF

SC

S125-B31/49-LP-20-D-XX

1,25

20

1310

1490

D, E, I

SMF

SC

S125-B49/31-LP-20-D-XX

1,25

20

1490

1310

D, E, I

SMF

SC

S125-B31/49-LP-HX-D-XX

1,25

40

1310

1490

D, E, I

SMF

SC

S125-B49/31-LP-HX-D-XX

1,25

40

1490

1310

D, E, I

SMF

SC

S125-B49/55-LP-ZX-D-XX

1,25

80

1490

1550

D, E, I

SMF

SC

S125-B55/49-LP-ZX-D-XX

1,25

80

1550

1490

D, E, I

SMF

SC

DWDM series:

Part number:

Speed [Gbps]

Distance dd [-]

Wavelength [-]

Temperature [-]

Fiber type [-]

Connector [-]

S125-Dyy yy[i]-LP-ZX-D-XX

1.25

80

DWDM

D, E, I

SMF

LC

S125-Dyy yy-LP-UX-D-XX

1.25

120

DWDM

D, E, I

SMF

LC

DWDM laser code:

yy  [-]

Frequency [THz]

Wavelength [nm]



yy [-]

Frequency [THz]

Wavelength [nm]



yy [-]

Frequency [THz]

Wavelength [nm]

yy [-]

Frequency [THz]

Wavelength [nm]

C17

191,7

1563,86



C29

192,9

1554,13



C40

194,0

1545,32

C51

195,1

1536,61

C18

191,8

1563,05



C30

193,0

1553,33



C41

194,1

1544,53

C52

195,2

1535,82

C19

191,9

1562,23



C31

193,1

1552,52



C42

194,2

1543,73

C53

195,3

1535,04

C20

192,0

1561,42



C32

193,2

1551,72



C43

194,3

1542,94

C54

195,4

1534,25

C21

192,1

1560,61



C33

193,3

1550,92



C44

194,4

1542,14

C55

195,5

1533,47

C22

192,2

1559,79



C34

193,4

1550,12



C45

194,5

1541,35

C56

195,6

1532,68

C23

192,3

1558,98



C35

193,5

1549,32



C46

194,6

1540,56

C57

195,7

1531,90

C24

192,4

1558,17



C36

193,6

1548,51



C47

194,7

1539,77

C58

195,8

1531,12

C25

192,5

1557,36



C37

193,7

1547,72



C48

194,8

1538,98

C59

195,9

1530,33

C26

192,6

1556,55



C38

193,8

1546,92



C49

194,9

1538,19

C60

196,0

1529,55

C27

192,7

1555,75



C39

193,9

1546,12



C50

195,0

1537,40

C61

196,1

1528,77

C28

192,8

1554,94























DWDM code examples:

Part number:

Speed [Gbps]

Distance dd [-]

Wavelength [nm]

Temperature [-]

Fiber type [-]

Connector [-]

S125-D63 86-LP-ZX-D-XX

1.25

80

1563,86  (channel 17)

D, E, I

SMF

LC

S125-D59 79-LP-ZX-D-XX

1.25

80

1559,79 (channel 22)

D, E, I

SMF

LC

S125-D58 98-LP-UX-D-XX

1.25

120

1558,98 (channel 23)

D, E, I

SMF

LC

S125-D54 94-LP-UX-D-XX

1.25

120

1554,94 (channel 28)

D, E, I

SMF

LC

S125-D53 33-LP-ZX-D-XX

1.25

120

1553,33  (channel 30)

D, E, I

SMF

LC

S125-D52 52-LP-ZX-D-XX

1.25

120

1552,52 (channel 31)

D, E, I

SMF

LC

CWDM series:

Part number:

Speed [Gbps]

Distance dd [-]

Wavelength [-]

Temperature [-]

Fiber type [-]

Connector [-]

S125-Cyy-LP-LX-D-XX

1.25

20

CWDM

D, E, I

SMF

LC

S125-Cyy-LP-HX-D-XX

1.25

40

CWDM

D, E, I

SMF

LC

S125-Cyy-LP-ZX-D-XX

1.25

80

CWDM

D, E, I

SMF

LC

S125-Cyy-LP-UX-D-XX

1.25

120

CWDM

D

SMF

LC

S125-Cyy-LP-EZX-D-XX

1.25

160

CWDM

D

SMF

LC

CWDM laser code:

yy/zz [-]

Wavelength [nm]

Clasp Color Code [-]

yy/zz [-]

Wavelength [nm]

Clasp Color Code [-]



dd code [-]

Distance [km]

27

1270

Gray

45

1450

Brown



SX

0.550

29

1290

Gray

47

1470

Gray



LRM

1,5

31

1310

Gray

49

1490

Purple



LX03

3

33

1330

Purple

51

1510

Blue



LX

20

35

1350

Blue

53

1530

Green



HX

40

37

1370

Green

55

1550

Yellow



ZX

80

39

1390

Yellow

57

1570

Orange



UX

120

41

1410

Orange

59

1590

Red



EZX

160

43

1430

Red

61

1610

Brown



Table 3: Distance code.

CWDM code examples:

Code

Description

S125-C27-LP-HX-D-XX

CWDM series,  1270nm, 40km, 0 °C to + 70 °C  operational temperature

S125-C55-LP-HX-I-XX

CWDM series,  1550nm, 40km, -40°C to +80°C operational temperature

S125-C31-LP-HX-D-XX

CWDM series,  1310nm, 40km, 0 °C to + 70 °C  operational temperature

S125-C33-LP-HX-D-XX

CWDM series,  1330nm, 40km, 0 °C to + 70 °C  operational temperature

S125-C53-LP-HX-D-XX

CWDM series,  1530nm, 40km, 0 °C to + 70 °C  operational temperature

S125-C59-LP-HX-D-XX

CWDM series,  1590nm, 40km, 0 °C to + 70 °C  operational temperature

Temperature code examples:

To order SFP with extended or industrial temperature, please replace the “D” mark with temperature mark in ordering number.

Code

Description

S125-D55-LP-HX-E-XX

Standard series,  1550nm, 40km, -10°C to +70°C operational temperature

S125-D55-LP-HX-I-XX

Standard series,  1550nm, 40km, -40°C to +80°C operational temperature

120 km DWDM SFP has different receiver sensitivity (-30  dBm)
yy yy means last 4 digits of DWDM wavelength. Example:  For channel C17 of DWDM use 63 86 in ordering code
