QSFP28 - 100G - BiDi 100Gbps LR 10km DDM Transceiver
OPTOKON 100G QSFP28 BiDi LR is designed for 10km optical communication applications. It is intended for the service with single mode fiber in 100Gb/s high speed data communications.
The optical signals are multiplexed to a single-mode fiber through commercial standard LC connector. The module incorporates one channel optical signal on 1271nm and 1331nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
- Supports 100GBASE-LR BiDi
- Lane signaling rate 106.25Gb/s with PAM4, 111.8Gb/s compatible
- Up to 10 km transmission on SMF
- EML Laser and PIN receiver
- 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
- Support KP4 FEC inside the module
- High speed I/O electrical interface
- I2C interface with integrated Digital Diagnostic Monitoring
- QSFP28 MSA package with simplex LC connector
- Single +3.3 V power supply
- Support HW TX_DIS and RX_LOS for Telecom application
- Maximum power consumption 4W
- Case operating temperature: 0°C to 70°C
Safety and regulatory compliance and standards:
- Compliant to IEEE 802.3cu, SFF-8636 & SFF-8679
- Complies with EU Directive 2015/863/EU
Recommended operating conditions:
|
Parameter |
Min |
Typ |
Max |
Unit |
Note |
|
Case Operating Temperature |
0 |
– |
+70 |
°C |
|
|
Relative Humidity |
– |
– |
85 |
% |
|
|
Power Supply Voltage |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
– |
– |
1.2 |
A |
|
|
Maximum Power Dissipation |
– |
– |
4 |
W |
|
|
Data Rate(optical) |
– |
106.25 |
111.8 |
Gbps |
|
|
Transmission Distance |
– |
– |
10 |
km |
Over 9/125um SMF |
Warnings:
|
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures. Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation. |
 |
Optical Characteristics:
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Transmitter |
||||||
|
Center Wavelength |
CW |
1264.5 |
1271 |
1277.5 |
nm |
|
|
1324.5 |
1331 |
1337.5 |
nm |
|
||
|
Average Launch Power |
PTX |
1.4 |
|
4.5 |
dBm |
1 |
|
Average Output Power (Laser Turn off) |
Pout-off |
– |
– |
-30 |
dBm |
|
|
Outer Optical Modulation Amplitude |
OMA |
0.7 |
– |
4.7 |
dBm |
1 |
|
Launch power in OMA minus TDECQ(min) |
OMA-TDECQ |
-0.7 |
– |
– |
dBm |
ER≧4.5 dB |
|
-0.6 |
– |
– |
dBm |
|
||
|
Transmitter and dispersion eye closure for PAM4 (TDECQ) (max) |
TDECQ |
– |
– |
3.4 |
dBm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
– |
– |
dB |
|
|
Extinction Ratio |
ER |
3.5 |
– |
– |
dB |
|
|
Optical Return Loss Tolerance |
ORLT |
– |
– |
15.6 |
dB |
|
|
Receiver |
||||||
|
Center Wavelength |
CW |
1324.5 |
1331 |
1337.5 |
nm |
|
|
1264.5 |
1271 |
1277.5 |
nm |
|
||
|
Damage threshold |
Pdamage |
5.5 |
– |
– |
dBm |
2 |
|
Average Rx Power |
PRx |
-7.7 |
– |
-4.5 |
dBm |
3 |
|
Receive power_OMAouter |
POMA |
– |
– |
-4.7 |
dBm |
|
|
Loss Assert |
LosA |
-26 |
– |
|
dBm |
|
|
Los De-Assert |
LosDA |
– |
– |
-10 |
dBm |
|
|
Los Hysteresis |
LosH |
0.5 |
– |
– |
dB |
|
Notes:
1) The optical power is launched into SMF
2) The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level. The receiver does not have to operate correctly at this input power.
3) Average receive power, each lane (min) is informative and not the principal indicator of signal strength.

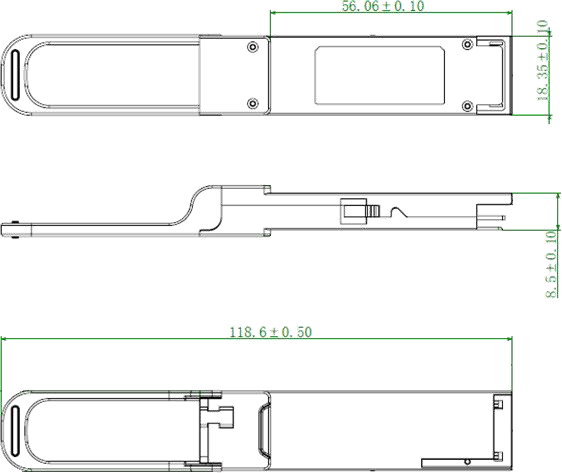

Dimension:
|
|
- 100G Ethernet, 100GBASE-LR1 BIDI
- Data centers, Enterprise networks, Telecommunications
Ordering code:
|
Code |
Description |
|
S100G-W1271/1331-QP28-LR-10-XX |
100 Gbps (TX 1271nm/RX 1331nm), QSFP28 housing, 10 km, |
|
S100G-W1331/1271-QP28-LR-10-XX |
100 Gbps (TX 1331nm/RX 1271nm), QSFP28 housing, 10 km, |
Remark: Full compatibility is conditioned by exact specification of the end device; compatibility of older SFPs is not guaranteed with new devices or updated SW.
