In-Line Attenuators
The In-Line attenuators provide a fixed level of attenuation and feature excellent return loss. Low cost and performance determine them for universal using in optical networks.
- Return loss > 50 dB
- Insertion loss on customer´s demands
- Fiber or cable version
- Pigtail with connector by specification
|
Loss |
5, 10, 15, 20, 25, 30 dB ±10% |
|
Wavelength SM |
1310 nm, 1550 nm, 1625 nm |
|
Wavelength MM |
1300 nm, 850 nm, 820 nm |
|
Return loss |
> 50 dB |
|
Type |
Fiber, Cable |
|
Length |
by specification |
|
Operation temperature |
-40 to 75 °C Temperature stability 0.005dB / °C |

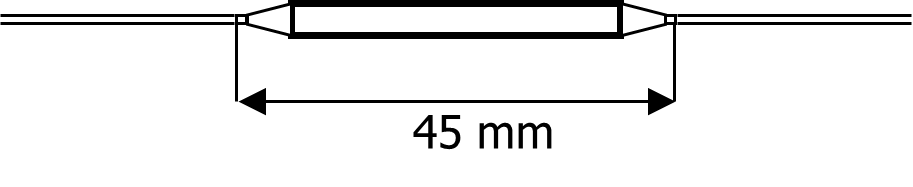

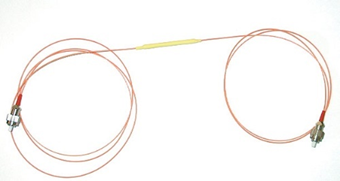

| Fiber Attenuator, Length - 45 mm, Æ - 3 mm |  |

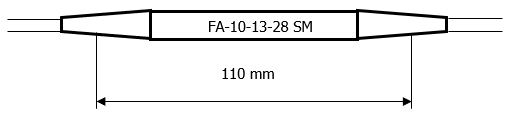

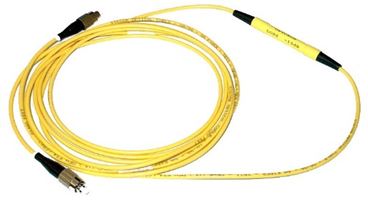

| Cable Attenuator , Length - 110 mm, Æ - 7 mm |  |
Sample of In-Line Attenuators :
1. standard 5 dB SM attenuator (1310 nm) FA – 05 – 13 – 28 S2D – UPC – 003
2. duplex 5 dB MM attenuator (850 nm) FAD – 05 – 50 – 28 OM1 – SL – 003
3. hybrid 5 dB SM attenuator (1550 nm) FA – 05 – 15 – 28 S2D – UPC/USC - 003
 |
 |
- Receiver padding for optical receiver protection
- Optical power equalization
- Linearity and dynamic range testing in laboratory equipment
|
FA(D) - |
XX |
- |
XX |
- |
XX XX |
- |
AAA |
- |
XXX |
- |
(C)* |
- |
YY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(D) Duplex |
|
|
|
|
|
|
|
|
Length (m) |
|
BU |
|
Blue |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN |
|
Green |
|
|
|
|
|
|
|
|
|
|
|
|
|
OG |
|
Orange |
|
|
|
|
|
|
|
|
|
|
|
|
|
YE |
|
Yellow |
|
|
Insertion Loss |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
05 |
5 dB |
|
|
|
|
|
LC |
|
LC/PC |
|
|
||
|
|
10 |
10 dB |
|
|
|
|
|
ULC |
|
LC/UPC |
|
|
||
|
|
15 |
15 dB1 |
|
|
|
|
|
NLC |
|
LC/APC |
|
|
||
|
|
other on request2 |
|
|
|
|
|
MU |
|
MU/PC |
|
|
|||
|
|
|
|
|
|
|
|
|
UMU |
|
MU/UPC |
|
|
||
|
Optimized Wavelength |
|
|
|
|
|
NMU |
|
MU/APC |
|
|
||||
|
13 |
SM laser 1310 nm |
|
|
|
|
|
PC |
|
FC/PC |
|
|
|||
|
15 |
SM laser 1550 nm |
|
|
|
|
|
UPC |
|
FC/UPC |
|
|
|||
|
16 |
SM laser 1625 nm |
|
|
|
|
|
NPC205 |
|
FC/APC standard Seikoh Giken, Methode, JDS |
|||||
|
50 |
MM LED 850 nm |
|
|
|
|
|
NPC215 |
|
FC/APC standard Seiko |
|||||
|
|
|
|
|
|
|
|
|
SC |
|
SC/PC |
||||
|
Performance |
|
USC |
|
SC/UPC |
||||||||||
|
09 |
fiber 0.9 mm |
OM2 |
MM 50/125 µm |
|
NSC |
|
SC/APC |
|||||||
|
17 |
cable 1.7 mm |
OM1 |
MM 62.5/125 µm |
|
SL |
|
ST/PC |
|||||||
|
20 |
cable 2.0 mm |
S2D |
SM 9/125 µm (G.652D) |
|
SSL |
|
ST/SPC |
|||||||
|
24 |
cable 2.4 mm |
S5X1 |
SM 9/125 µm (G.655X) |
|
PE2 |
|
LSH (E2000)/PC |
|||||||
|
|
|
|
|
|
NE2S |
|
LSH(E2000)/APC standard |
|||||||
|
|
|
|
|
|
NE2P |
|
LSH(E2000)/APC premium |
|||||||
|
|
|
|
|
|
DIN |
|
DIN/PC |
|||||||
|
|
|
|
|
|
NDIN |
|
DIN/APC |
|||||||
|
|
|
|
|
|
MJF |
|
MT/RJ - without pins |
|||||||
|
|
|
|
|
|
MJM |
|
MT/RJ - with guide pins |
|||||||
|
|
|
|
|
|
SK2 |
|
SMA905 |
|||||||
Note: Other connector types – on request (C)* Without this mark is standard position 1m from connector, with C is position in center.
