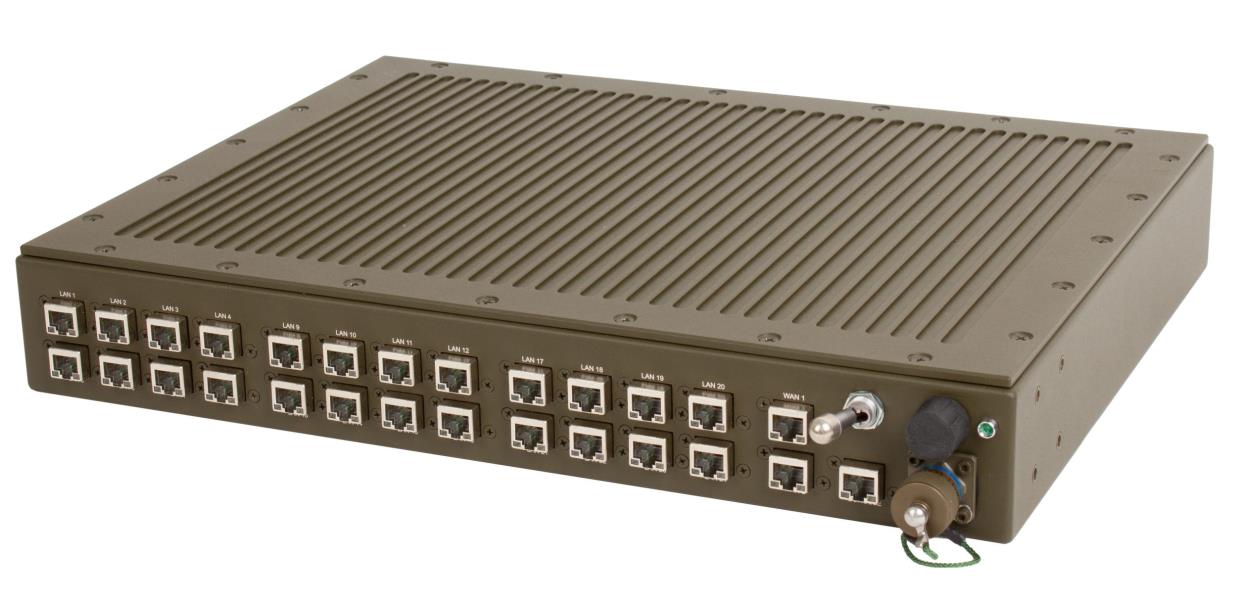

LMSW-E33 Ruggedized 1-10 Gigabit Ethernet Layer 2 Managed PoE Switch

The OPTOKON® LMSW-E33 ruggedized switch based on Cisco® Embedded Service Switch (ESS) 3300 extends switching capabilities to mobile and embedded networks that operate in extreme environments. The flexible, compact form factor of the switch, powered by Cisco IOS® Software, provides highly secure data, voice, and video communications to stationary and mobile network nodes, making it ideal for use in harsh environmental conditions. 10G fiber optic ports are terminated with HMA “Expanded Beam” connectors, which allows interconnection of the nodes of tactical network by the help of cables with optical fibers. The used “Expanded Beam” technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions.
The switch supports a variety of management functions, including Web UI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session
The switch is able to fit all the common 24 V DC power systems. The switch operates in wide operating temperature range -40 to +70°C. The switch can operate as standalone device or in addition the 19” brackets allow switch installation into 19” rack. Two switches can be connected on the side and mounted in a 19 "rack.
OPTOKON NATO supplier code: 1583G

LMSW-83M Ruggedized Gigabit Ethernet Layer 2 Managed PoE Switch

OPTOKON NATO supplier code: 1583G

3x 100/1000Base-X FO HMA
8x 10/100/1000Base-T, RJ-45 with PoE+

The LMSW-83M is Layer 2 military grade managed switch with 3x Fiber optic HMA-J ports (Gigabit or Fast Ethernet) and 8x 10/100/1000Base-X RJ-45 ports with PoE+ functionality that provides stable and reliable Ethernet transmission. The LMSW-M series models can provide excellent data optical network performance and rugged design.
The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 Ring<50 ms recovery time, advanced PoE management functions such as PoE device auto-checking and auto reset, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.
The switch is able to fit all the common 12/24 V DC and 230 V AC power systems simultaneously (redundant power supply). The switch operates in wide operating temperature range -40 to +70 °C. The switch can operate as stand alone device or in addition the 19” brackets allow switch installation into 19” rack.

LMSW-80MD Ruggedized Gigabit Ethernet Layer 2 Managed PoE Switch

OPTOKON NATO supplier code: 1583G

8x 10/100/1000Base-T, RJ-45 with PoE+

The LMSW-80MD is a ruggedized field switch, which has been developed according to the requirements for optical networks in harsh environmental conditions. It is designed for operation in military tactical networks, for installation in heavy industry enterprise, oil refineries and mining plants, or for rescue actions during natural disasters. The switch combines all advantages: excellent data network performance and rugged design.
The Gigabit Ethernet LMSW-80MD switch includes 8x RJ-45 LAN ports. The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 Ring<50 ms recovery time, advanced PoE management functions, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.
The switch is able to fit all the common 12/24 V DC and 230 V AC power systems simultaneously (redundant power supply). The switch operates in wide operating temperature range -40 to +70 °C. The switch can operate as stand alone device or in addition the 19” brackets allow switch installation into 19” rack.

LMSW-E1 Ruggedized Ethernet Layer 2 Managed Switch

2x 1G WAN, FO HMA or RJ-45
4x LAN 10/100BASE-T with PoE/PoE+

The OPTOKON® LMSW-E1 ruggedized switch based on Cisco® technology extends switching capabilities to mobile and embedded networks that operate in extreme environments. It is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces and is Power over Ethernet (PoE) capable with zero IT management.
The switch is able to fit all the common 24 V DC power systems. The switch operates in wide operating temperature range -40 to +60°C.


LMSW-E2U Ruggedized Ethernet Layer 2 Managed Switch

The OPTOKON® LMSW-E2U ruggedized switch based on Cisco® technology extends switching capabilities to mobile and embedded networks that operate in extreme environments. The flexible, compact form factor of the switch, powered by advanced Cisco IOS® Software, provides highly secure data, voice, and video communications to stationary and mobile network nodes, making it ideal for use in harsh environmental conditions.
The switch is able to fit all the common 24 V DC power systems. The switch operates in wide operating temperature range -40 to +75°C.
OPTOKON NATO supplier code: 1583G

LMSW-42 Ruggedized Unmanaged PoE Gigabit Ethernet Switch

OPTOKON NATO supplier code: 1583G

The LMSW-42 is a low cost ruggedized field switch with 2 fiber optic ports and 4 RJ-45 ports.  High Power PoE ruggedized switch is specifically designed to meet IEEE 802.3af/at standards for powering network devices with up to 30 W output per PoE port. With PoE function, it becomes simplified to install network devices such as IP phones, IP surveillance cameras, wireless access points, and other PoE enabled devices in outdoor or remote areas where are hard-to-reach power source.
The LMSW-42 switch supports 4-port Power-over-Ethernet on ports 1 to 4 and 2-port 1000Base-X optical fiber. The switch is classified as power source equipment (PSE) can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need of additional power cable wiring. Moreover, it built-in power input booster of 24 V DC and 48 V DC for PoE/PoE+ output without external power converters or power supplies, it is able to fit all the common 24/48 V DC and 230 V AC power system together (redundant). This PoE switch supports IEEE 802.3/802.3u/802.3x/802.3ab with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your ruggedized Ethernet network.

LMSW-42M Ruggedized Gigabit Ethernet Managed PoE Switch

OPTOKON NATO supplier code: 1583G

The LMSW-42M is a small version of ruggedized field switch, which has been developed according to the requirements for optical networks in harsh environmental conditions. It is designed for operation in military tactical networks, for installation in heavy industry enterprise, oil refineries and mining plants, or for rescue actions during natural disasters. The switch combines all advantages: excellent optical network performance and rugged construction.
The Gigabit Ethernet LMSW-42M switch includes 4x RJ-45 LAN ports and 2x optical fiber ports. The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 Ring<50 ms recovery time, advanced PoE management functions such as PoE device auto-checking and auto reset, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.
The switch is classified as power source equipment (PSE) and can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need of additional power cable wiring. It is able to fit all the common 24/48 VDC and 230 VAC power systems simultanously (redundant power supply). The switch operates in wide operating temperature range -40 +75 °C.

LMSW-10 Ruggedized Field Switch

LMSW 10 ruggedized switch has been developed as a part of solution: Integrated System (ISSŘ) for Armed Forces of the Czech Republic
OPTOKON NATO supplier code: 1583G
Czech Army Technical specifications: TP-LMSW10-OPT01-08

The interconnection networks, based on fiber optic components, are designed to connect the nodes of tactical networks with the help of optical fiber cables. The Expanded Beam technology used preserves all advantages of signal transmissions through optical lines in harsh environmental field conditions.

For example, the tactical fiber optic cables with Expanded Beam connectors allow arranging the connection between headquarters and subaltern points in field conditions in a very short time. The flexible 2 – 6 fiber 6 mm outer diameter optical cables have a high crush and strain relief resistance and a rugged field repairable connector design. The wide range of cable drums has been developed to facilitate storage and handling with cable coils. The drums are designed to store up to 500 m tactical cable and the low weight of the cable coils allows easy network reconfiguration in field conditions. The optical interface of the active networking device should be based on the same Expanded Beam technology, preferably on the same standards used for installation of the passive infrastructure of the tactical fiber optic network. The LMSW-10 ruggedized field switch has been developed according to the above mentioned requirements. The switch combines all advantages: excellent optical network performance and rugged construction designed for operation in harsh environmental conditions. The LMSW-10-282 includes a 10 port switch (2 fiber optic, 8 UTP LAN ports) and a VoIP gateway with 2 FXS ports. The LAN1-4 ports offer PoE (Power over Ethernet) capability.
