MOTB-DG03 Termination Box
Termination box MOTB-DG03 provides protection splice with optical fibre and pigtail, and can storage remaining cable inside the closure. Applying in the condition optical fiber connect into indoor termination. Termination box MOTB-DG03 is designed for FTTx application, which is suitable for jointing optical cables and pigtails, protects fiber optic splices and helps to distribute drop cables.
- Compact design (450 x 150 x 180 mm)
- Free breathing box for indoor use
- In-line and butt configuration possible for main cable
- Wrap around cable seals for main cable and drops
- Not required to cut loop-through fibers from riser cable
- Compatible with mechanical splice and heat shrink protective sleeves
- LSZH material
- Transient free customer provisioning
- Drop cables are terminated individually
- Separate storage of un-connected fibers from spliced drop fibers
- Possibillity to integrate PON splitters
- Main cable up to 16 mm
- Easy drop cable termination on strain relief device
|
Model |
Cable port |
Spliced fiber storagecapacity |
PLC splitter |
Adaptors |
Protection |
|
MOTB-DG03 |
4 cable ports (for cables up to 16 mm diameter) |
144 splices (6 trays) |
1:8, 1:16 |
48x SC |
IP54 |
Physical parameters:
Outside Dimensions: 450 × 150 × 180 (mm)
Net weight: 2.3 kg
Sealing type: Mechanical
Working temperature: -40℃ ÷ +65℃
Splicing capacity per splice tray: 24
Max. splice capacity (single fiber): 144
Material: ABS
|
|
|
|

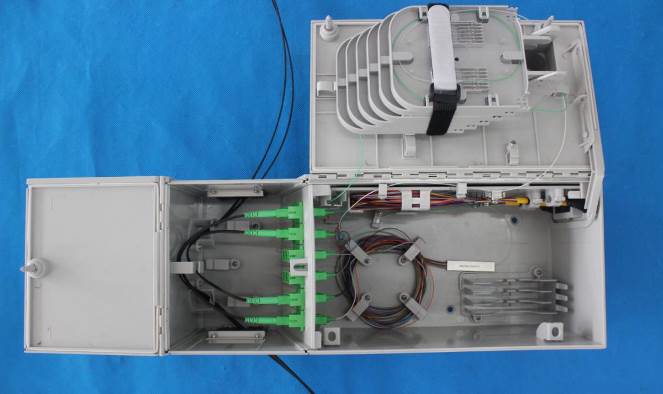

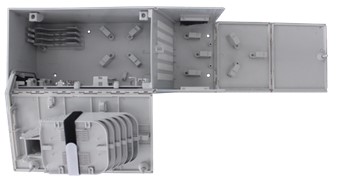

Opened MOTB-DG03 termination box |

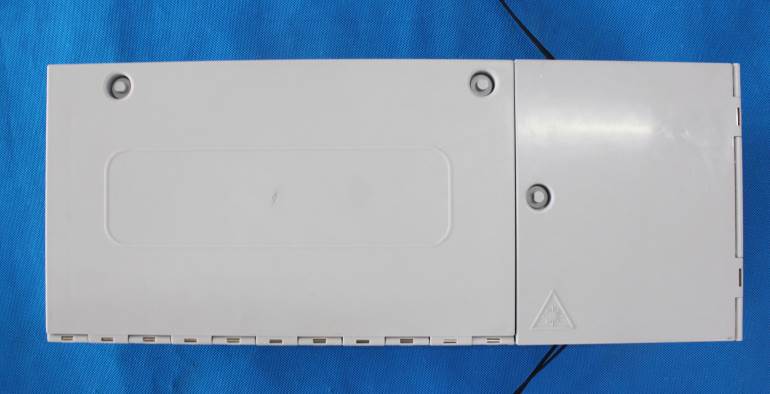

Closed MOTB-DG03 termination box |
|
MOTB-DG03 |
- |
XX |
- |
XX X |
|||
|
|
|
|
|
|
|||
|
|
|
# of Adaptors |
|
Adaptors Type |
|||
|
|
|
Up to 48 |
|
SC |
SC |
M |
Multimode |
|
|
|
|
|
DLC |
LC duplex |
S |
Single mode |
|
|
|
|
|
|
|
A |
APC |
|
|
|
|
|
|
|
X |
No adaptors |
