SN-MT Patchcord

SN-MT Patchcord

The SN-MT patchcord provides quick connection specifically for multifiber cable, up to 16 fibers. The SN®-MT is a next generation multifiber connector available in 8 and 16 fibers in one row. It allows 2.7x increase density compared to MTP/MPO-16 fibers. The new multifiber SN®-MT connector is the same footprint as duplex SN connector. Available SN-MT trunk cables or fan-out from SN®-MT to single fibers connectors: FC, LC, SC, etc.

  • Carries a maximum of 16-fiber in a row
  • Same connector footprint as SN duplex
  • Carries many features from the SN Duplex
  • The industry’s highest density connector
  • Fiber density per 1RU is improved by 2.7x over MPO-16F & 1.3x over MPO-32F
  • Insertion loss targeted 0.35 dB max for SM

Specifications of connector1:

Single mode, 12/16 fibers, low loss

Typical Insertion Loss (dB)

0.15

Max Insertion Loss (dB)

0.35

Typical Return Loss (dB)

≥60

Operating Temperature (°C)

– 40 to +75

Durability

SM <0.3 dB typical change, 50 matings

Note: 1) Parameters listed are target specifications.



Examples of SN-MT non-shuttered adapter:



SM SN-MT 1ch adapter SM SN-MT 4ch adapter MM SN-MT 4ch adapter



Dimensions of SN®-MT connector:

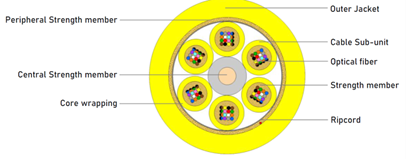

SN-MT Fan-out cord 96 fibers (6 x 16F) Data Center Cable 96F (6 × 16F)



  • Patchords - high density up to 16 fibers

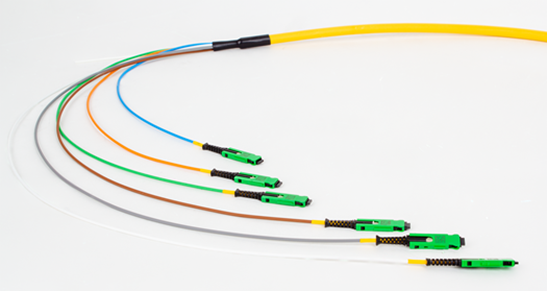

  • Fan-out cord with single fiber connectors
  • Pluggable transceiver interface - 4x SN-MT fit in QSFP footprint
  • Direct coupling to emerging 16 fiber parallel optic links (8 Tx / 8 Rx, e.g. 400G QSFP-DD, OSFP)
  • Inside box mid-board interconnect

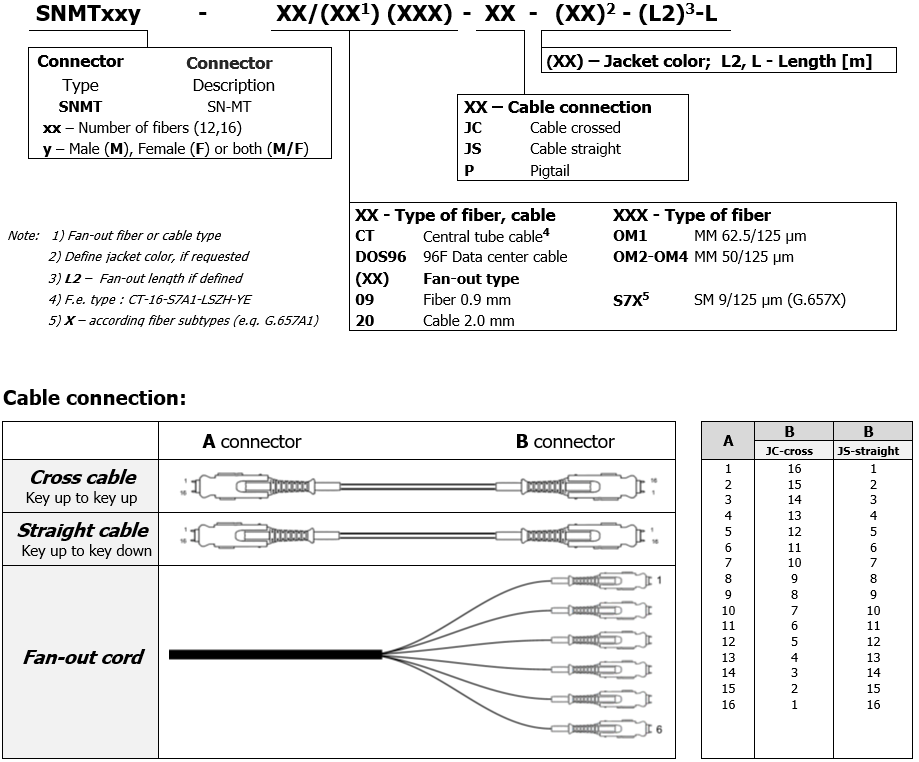

Examples of code:

6xSNMT16M-DOS96-P-1-29         Fan-out (1m) with SN-MT16 Male connector, length 29 m
SNMT16M/F-CT-JC-30                  SN-MT16 patchcord, Cross connection , Male and Female connector, length 30 m
