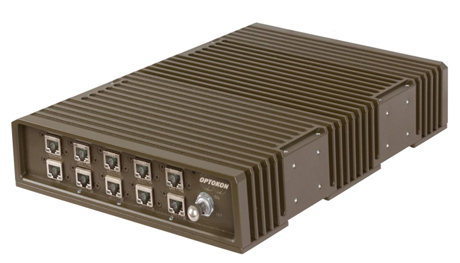

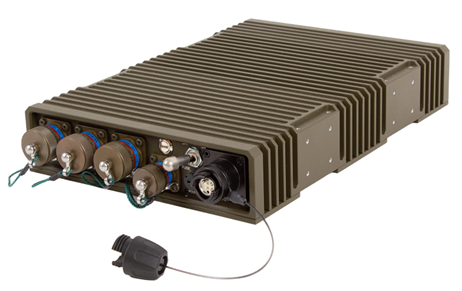

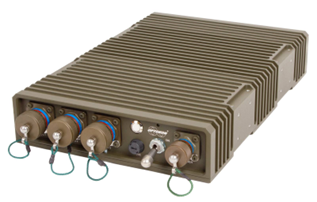

LMSW-82T Ruggedized Gigabit Ethernet Layer 2/3 Managed PoE Switch
2x 1G WAN, FO HMA or copper wires multipin D38999 connector
8x LAN 10/100/1000Base-T, PoE
The OPTOKON® LMSW-82T ruggedized switch extends switching capabilities to mobile and embedded networks that operate in extreme environments. The switch's flexible, compact form factor provides highly secure data, voice, and video communications to stationary and mobile network nodes, making it ideal for use in harsh environmental conditions. 1G fibre optic ports are terminated with HMA “Expanded Beam” connectors, which allow interconnection of the nodes of the tactical network with the help of cables with optical fibres. The “Expanded Beam” technology preserves all the advantages of signal transmission through the optical lines in harsh environmental conditions in the field.
The switch supports a variety of management functions, including Web UI, MIB, SmartPort, SNMP, Syslog, DHCP server, SPAN session
The switch can fit all the common 24 V DC power systems. The switch operates in a wide operating temperature range of -40 to +70 °C. The switch can operate as a standalone device or in addition the 19” brackets allow switch installation into a 19” rack. Two switches can be connected on the side and mounted in a 19 "rack.
- Robust compact design resistant to harsh environmental conditions and rough handling
- L2/L3 functionality
- 1G uplinks, 1G downlinks
- 2x WAN FO in HMA-J or copper D38999 connector
- 8x LAN with PoE, D38999 multi-pin connectors
- PoE on all LAN ports available
- Standards IEEE 802.1p, IEEE 802.1Q, 802.3az, 802.3af and 802.3at
- 20 – 40 V DC power supply
For more detailed information contact our sales department at SALES@OPTOKON.COM
 |
 |
| LMSW-82T-FO 2x 1G WAN – Fiber optic in one HMA-J connector |
LMSW-82T-CT/MRJ WAN, LAN – MRJ connectors |
