SC Shuttered Connector Patchcord
OPTOKON offers patchcords, optical connection modules designed for home use in FTTH networks. Patchcords are equipped with SC connectors with a shutter, which protects the connector itself from contamination or damage that could occur during manipulation in the end user's conditions. The shutter also protects the operator from the effects of laser radiation when connecting the user's end device to the FTTH network. During the connection process, the shutter in the connection port moves away and does not prevent the transmission of the optical signal. When the connector is disconnected and removed from the coupling, the shutter closes again automatically.
The Shuttered SC Connector offers eye protection with a unique internal shutter mechanism that blocks the light path when it is not installed. Ideal for applications where the user may be untrained or connecting to energized equipment.
- Integral laser shutter mechanism
- Interface complies with IEC 61754-4
- Boot type 3 mm
- UL-Rated housing and boots
- Excellent transmission parameters
- High mechanical resistance – pull proof
- Meets SC connector standards
|
Specifications: |
|||
|
Insertion loss (IL) (IEC 61300-3-34) |
SM Angle PC Grade C |
SM Angle PC Grade B |
SM Angle PC Grade A |
|
0.25 dB typ 0.50 dB 97% |
0.15 dB typ 0.25 dB 97% |
0.06 dB typ 0.15 dB 97% |
|
|
Return loss (RL)1 (IEC 61300-3-6) |
>60 dB |
>65 dB |
>65 dB |
|
Operating temperature |
-40°C to +75°C |
||
|
Storage temperature |
-40°C to +75°C |
||
|
Tensile strength |
100 N |
||
|
Durability |
<0.1 dB typical change, 500 matings |
||
|
Strain relief |
100 N |
||
|
Assembly procedure |
glue and polish |
||
|
Connection |
physical contact |
||
|
Lock mechanism |
snap-on |
||
|
Standards |
ISO/IEC 11801, TIA 568A, IEC 61755-4, ČSN/EN/IEC 61754-15, EN-50377-4 |
||
|
Ferrule material |
full ceramic zirconia |
||
|
Connector material |
thermoplastic |
||
|
Adapter material |
polymer composite, zinc alloy |
||
Note: 1) Mated connectors, over full temperature range
Application:

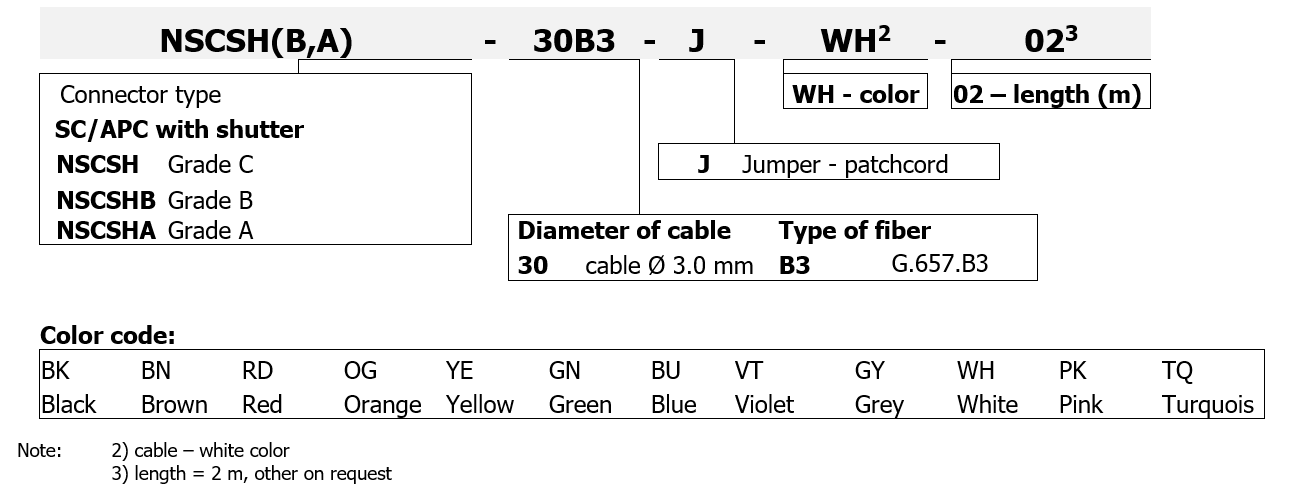

NSCSH-30B3-J-WH-02
SC/APC grade C connector with shutter, white cable Ø 3.0 mm, G.657.B3 fiber, 2 m length
