CVR-40_QP-10G QSFP+ to SFP+ Adapter
The QSFP+ to SFP+ adapter-converter module provides 10G Ethernet connectivity for QSFP+ 40G ports. This module is compliant with QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8431. The built-in MCU enables I2C reading of SFP+ registers by reading QSA registers. The SFP+ receptacle is connected to lane 1 of the QSFP+ connector. The other three channels on the QSFP+ connector are not connected
The CVR-40_QP-10G compatible QSFP+ to SFP+ adapter-converter module provides conversion from QSFP+ to SFP+ form factors. The module is a high performance, cost effective device that allows for 40G QSFP+ host ports to seamlessly operate as single lane 10GBase-X SFP+ ports.
The converter operates using standard MSA compliant SFP+ transceivers that can be selected based on the network’s operational requirements.
- Trouble-free installation and network bring-up
- Precision process control for minimization of pair-to-pair skew
- 1 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
- All-metal housing for superior EMI performance
- 100 Ohm differential impedance system
- Operating case temperature: -20 to 85℃
- Low crosstalk
- Secure latching mechanism
- RoHS compliant
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|
Operating Case Temperature |
Top |
-20 |
– |
+85 |
°C |
|
Storage Temperature |
Tst |
-40 |
– |
+125 |
°C |
|
Relative Humidity (non-condensation) |
RS |
– |
– |
85 |
% |
|
Power Supply Voltage |
VC |
3.15 |
3.3 |
3.45 |
V |
|
Power Supply Current |
Icc |
– |
– |
570 |
mA |
|
Data Rate (Total) |
DRt |
– |
– |
10.3125 |
Gbps |
|
Characteristic impedance |
CHi |
90 |
100 |
110 |
Ohm |

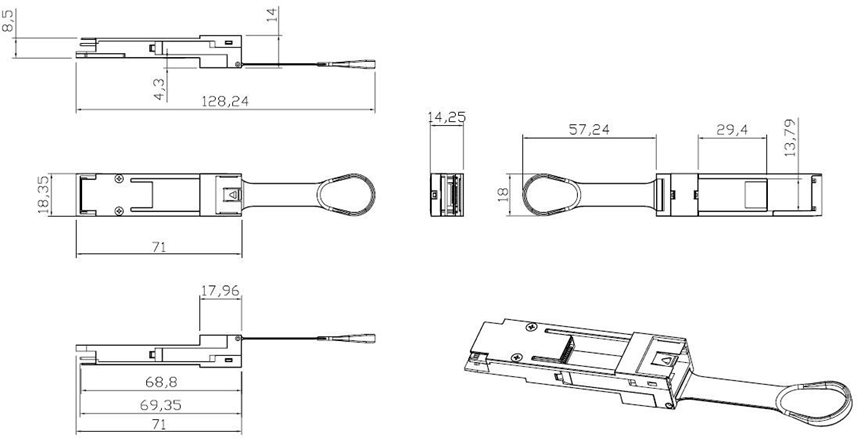

Mechanical dimensions:
|
 |
|
Code |
Description |
|
CVR-40_QP-10G |
QSFP+ to SFP+ Adapter Module |
