OPTOKON offers complimentary high quality deployable cable drums. Users can select the appropriate design and style for their particular application. The drums are ideally suited to Harsh environmental network, Industrial, Broadcast and pro Audio applications. All drums are supplied with a third flange allowing full access to each end of the cable assembly.

The drums are delivered in standard black color RAL 9005 mat. Other - green khaki RAL 6014 mat color is available upon request1.

BBD-500NR, BBD-1000, BBD-1500N  - (60141)
Heavy duty drum with direct crank rewind permanently attached to the axle. Designed for installation on vehicle or TBD-500 type trolley suitable for mobile applications.


BBD-1000


TBD-500NR-6014

TBD-500NR - (60141)

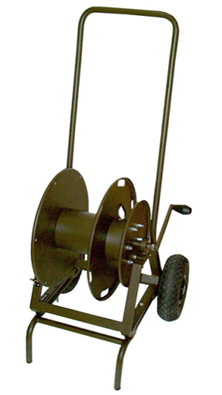

Trolley drum with one-piece foot, rubber tyres and removable steel handlebars for long term shipping and storage. Large wheel diameter allows easy field operations.



BBD-500NR

SBD-200 - (60141)
Small, lightweight and durable design for quick and easy use, ideal for applications where 200 m lengths of cable are deployed out over large areas.


SBD-200-6014



MBD-200,  MBD-500 - (60141)
These reels are stackable for maximum transport and storage efficiency, rugged steel construction throughout, including square tubular frame.



MBD-500



RBD-200,  RBD-500 - (60141)
Mobile drum, with strap belts for shoulder wear. Suitable for use in the field. Weight with HMA connectors 200 m cable is 15 kg. The drum is available in two versions, for 200 m and 500 m of 5.5 mm tactical cable.


RBD-200-6014


RBD-500

BBD-500NR, BBD-1000, BBD-1500N
The drum BBD-500NR is designed for winding of up to 500 m cable diameter 5.5 mm. Type BBD-1000/1500N is wider and allows storage up to 1/1.5 km cable diameter 5.5 mm. Weight: BBD-500NR:11.4 kg, BBD-1000:13.3 kg, BBD-1500N:15.5 kg

Reel Dimensions BBD-500NR, BBD-1000/1500N (mm)

A

B

C

D

E

F

G

H

360

210

140

330

410

480

490

280

600

450

140

330

410

690

490

280

780

630

140

330

410

890

490

280

TBD-500NR
The BBD drum is installed on a mobile chassis.
Weight: TBD-500NR: 23 kg

Reel Dimensions TBD-500NR (mm)

A

B

C

D

E

F

G

H

470

210

140

510

410

500

1090

390

SBD-200
For a typical cable diameter of 5.5 mm, the SBD drum will accept 250 m of cable. Weight: SBD-200: 6.2 kg

Reel Dimensions SBD-200 (mm)

B

C

D

E

F

G

H

200

110

325

305

300

390

30

MBD-200, MBD-500
Two different drums dimensions. The MBD-200 drum will accept 200 m, the MBD-500 up to 500 m cable of 5.5 mm diameter. Weight: MBD-200: 8.0 kg, MBD-500: 10.8 kg

Reel Dimensions MBD-200, MBD-500 (mm)

A

B

C

D

E

F

G

H

290

200

110

375

305

385

370

185

340

210

140

465

410

420

470

235

RBD-200, RBD-500
For a typical cable diameter of 5.5 mm, the RBD drum will accept 200 m, the RBD-500 up to 500 m of cable. Weight: RBD-200: 9.7 kg, RBD-500: 10.7 kg

Reel Dimensions RBD-200, RBD-500 (mm)

A

B

C

D

E

F

G

H

-

200

110

310

305

360

570

-

-

325

110

320

305

430

570

-

Note: 1) Standard black color RAL 9005 mat, use code -6014 if green khaki RAL 6014 mat color is required.
          2) Dimenssions tolerance: ±20 mm
