OPTOKON

Optical Distribution Frames and Cable Closures

OPTOKON manufactures comprehensive fiber optic cable management systems (ODF) delivering high-performance solutions for passive network installations. OPTOKON systems meet today’s requirements for tomorrow’s applications. These advanced modular fiber optic systems include the full range of passive components for single mode and multimode applications that when combined, provide complete solutions for today’s applications, and maximize physical infrastructure performance, reliability, modularity, and scalability.

OPTOKON CABLE MANAGEMENT 10 YEAR WARRANTY

The OPTOKON standard 10-year warranty is valid for all cable management components from the OPTOKON range manufactured from ALUMINIUM. This includes all racks, cabinets, shelves, and connector panels. The warranty does not extend to any cables, connectors, adaptors, pigtails, or any other component fitted into the cable management system as an accessory. This warranty is valid and effective from 1/5/2006 and does not apply to any aforementioned product purchased from OPTOKON before this date. Any OPTOKON cable management product purchased before 1/5/2006 is governed by the standard OPTOKON one year warranty valid at the date of purchase. Terms and conditions for the standard ten-year warranty are available from SALES@OPTOKON.COM

MCNP - Rack Mount Connector Network Panel

The MCNP Connector Network Panel is an economical rack mountable ODF – optical distribution frame for use with splicing of manufactured pigtails, pre terminated cables and field-installable connectors. Made of lightweight and resistant aluminum alloy the MCNP offers user friendly handling during installation and operation and low transportation costs. The incoming cables are strain-relieved at the rear panel of the unit. The pivoting shelf can be equipped with either a splice tray holder or bend radius protection which guides, stores and organizes excess slack. This prevents damage to fibers prior to routing into couplings. The MCNP is used in installations where space is limited.

OFVJ – Cabinet with slide-out shelf

The OFVJ cabinet with slide-out shelf introduces a compact, low cost solution for fiber optic cable termination. The OFVJ series with reduced depth is ideal for 19" rack-mounting in confined areas such as equipment enclosures where rack space is limited. The cabinet is equipped with slide-out shelf with splice tray holder. This allows easy access to the splicing area for optical network reconfiguration during operation and prevents damage to fibers prior to routing into adapters. Changeable front panel allows use of wide range of connector – adapters. The modular system allows splicing and termination up to 48 fibers in 19" rack height 1U.

MFSS - fiber storage shelf

The MFSS is a rack-mountable swing-out shelf for the guidance and storage of excessive cable lengths and patchcords.

VJ6 - Cabinet with slide-out shelf

The VJ6 cabinet introduces a compact, low cost solution for fiber optic cable termination. The VJ6 series is ideal for rack-mounting in confined areas such as equipment enclosures where rack space is limited. The cabinet is delivered unequipped. Slide-out shelf allows easy access to the splicing area for optical network reconfiguration during operation and prevents damage to fibers prior to routing into adapters. On the pin you can place up to 4 splicing cassettes. Maximal fiber capacity depends on number of optical adaptors (24 or 48 fibers). The VJ6 cabinet is produced from Aluminium alloy 5754 material. Benefits are excellent corrosion resistance and very high strength.

MCNP-L Rack Mount Connector Network Panel

The MCNP-L Connector network panel is an economical rack mountable ODF – optical distribution frame for use with splicing of manufactured pigtails, pre terminated cables and field-installable connectors. Made of lightweight and resistant aluminum alloy the MCNP-L offers user friendly handling during installation and operation and low transportation costs. The incoming cables are strain-relieved at the rear panel of the unit. The pivoting shelf can be equipped with either a splice tray holder or bend radius protection which guides, stores and organizes excess slack. This prevents damage to fibers prior to routing into couplings. The MCNP-L is used in installations where space is limited.

MVFS-1 – Vented Fiber Shelf

The MVFS-1 is a 1U rack-mountable vented fiber storage shelf for the guidance and storage of excessive cable lengths and patchcords.

TMVJ – Cabinet with slide-out shelf

The TMVJ Fixed Cabinet introduces a compact, low cost solution for fiber optic cable termination. The TMVJ series is ideal for rack-mounting in confined areas such as equipment enclosures where rack space is limited. The cabinet is equipped with slide-out shelf with splice tray holder. This allows easy access to the splicing area for optical network reconfiguration during operation and prevents damage to fibers prior to routing into adapters. The modular system allows splicing and termination up to 48 fibers in rack height 1U.

ECE3 ETSI Splice & Termination Cabinet

The ECE3 is series designed for 300 mm depth ETSI racks. It provides splicing and termination within one convenient housing unit. The ECE3 terminates up to 144 fibers in a 7SU (ETSI height) distribution frame. This unit contains angled panel for mounting various optical adaptors (SC, LC, E2000, ...). It allows decreasing the depth of cabinet.  The swing-out shelf enables unrestricted front, rear and top access to the splicing area and termination panels.
ETSI philosophy is completely different. It is based on metrical system. Height of SU (System Unit) is 25 mm. This type cannot be used in common 19” racks.

OFDU-CAP Rack Mount Cabinet for CAPM Cassette

The OFDU-CAP cabinet is primarily intended for convenient placement of CAPM cassettes. The unified modular system enables easy storage and fastening CAPM cassettes and can be extended according to operator needs. The OFDU-CAP terminates up to 144 fibers in a 3U distribution frame. This unit can take up to 12 prewired CAPM cassettes.

OFDU-TS Rack Mount Splice and Termination Cabinet

The OFDU-TS cabinet is based on universal optical distribution frames. The unified modular system enables easy reconfiguration and can be extended according to operator needs. The OFDU-TS provides splicing and termination within one convenient housing unit. The OFDU-TS terminates up to 192 fibers in a 3U distribution frame. This unit can take up to 12 snap-in coupling panels or prewired cassettes. The slide-out and swing down shelf enables unrestricted front, rear and top access to the splicing area and termination panels. Various types of splice trays can be used.

MCNL - MCNR (SSL) series Splice and Termination Cabinet

The MCNR / MCNL series are an economical 19” rack mountable splice & termination cabinet with reduced depth for use with splicing of manufactured pigtails, preterminated cables and field-installable connectors. The cables are strain-relieved at the rear of the unit. MCNR – Right side / MCNL – Left side pivoting shelf can be equipped with either a splice tray holder or bend radius protection which guides, stores and organizes excess slack. This prevents damage to fibers prior to routing into couplings. The MCNR is used in installations where space is limited.

OFDU-S Rack Mount Splice Cabinet

The OFDU-S cabinet is based on universal optical distribution frames. The unified modular system enables easy reconfiguration and can be extended according to operator requirements. The OFDU-S provides splicing, storage and protection of up to 288 (576) fiber splices in individually accessible trays. The slide-out and swing down shelf enables unrestricted front, rear and top access to the splicing area. Various types of splice trays can be used.

OFDU-T Rack Mount Termination Cabinet

The OFDU-T cabinet is based on universal optical distribution frames. The unified modular system enables easy reconfiguration and can be extended according to operator needs. The OFDU-T provides termination in convenient housing unit. The OFDU-T terminates up to 144 fibers in a 3U distribution frame. This unit can take up to 12 snap-in coupling panels or prewired cassettes. The slide-out and swing down shelf enables unrestricted front, rear and top access to termination panels and cable reserve.

ZMPJ – Fixed Cabinet

The ZMPJ Fixed Cabinet introduces a compact, low cost solution for fiber optic cable termination. The ZMPJ series is ideal for rack-mounting in confined areas such as equipment enclosures where rack space is limited. The modular system allows splicing and termination up to 48 fibers in rack height 1U. The ZMPJ cabinet is produced from Aluminium alloy 5754 material. Benefits are excellent corrosion resistance and very high strength.

OD1-LC-SC-24 Rack Mount pivoting ODF

The optical cabinet OD1-LC/SC-24 introduces an 1U optical distribution frame, designed for termination for up to 48 optical fibers. Terminated with LC, SC or E2000 footprint cutout in pivoting optical distribution frame is an economical rack mountable patch panel for use with splicing of manufactured pigtails, preterminated cables and field-installable connectors. The cables are strain-relieved at the rear panel of the unit. The pivoting shelf is equipped with a splice tray holder and protection which guides, stores and OD1-LC/SC-24 is used in installations where space is limited.

MFDC – Splice and Termination Cabinet

The MFDC Cabinets offers termination and splicing within one convenient housing. The MFDC terminates up to 144 fibers in 6U frame. This unit accepts 12 snap-in coupling panels or prewired cassettes. Fibers are routed to the lower section of the unit where splice trays, fiber bundles, and buffer tubes are stored.  Various types of splice trays, blocks of 8 splice cassettes can be located on a pullout shelf, allowing easy access to the buffer tube, fiber storage and splicing area.

FO 22 - Splice and Termination Box

The FO 22 is a cost effective wall mount interconnect indoor cabinet designed for splice, storage and protection of 4 to 12 fiber optic connections. These compact, modular units are ideal for use in locations such as building entrance terminals, telecommunications closets and other controlled environments where wall space is at premium. The FO 22 allows capacity up to 12 fibers.

CMS_06-18_EN-FOH-Hybrid splice box

Splicing and termination, Power connectors for LEMO 3K.93C
The FOH-Hybrid Splice Box is ideal wall mount interconnect indoor cabinet designed for splice, storage and protection up to 4 LEMO 3K.93C Pigtail connectors (using DLC adaptors) and with 4 power connectors MATE-N-LOK (6 way). These compact, modular units are ideal for use in Brioadcast Infrastructure Network inside the Wall Boes and Patch Panles. FOH designed with compact size wich can fit for cabinates with minimum depth of 15 cm. The FOH allows to use different types of optical adapters (SC, LC, E2, etc).

MPIC - Interconnect Cabinet

The double-door Premise Interconnect Cabinet (MPIC) is available from 6 to 144 (192) fiber capacities. The cabinet is ideal in building entrance terminals, telecommunications closets, computer rooms and other controlled environments where space is limited. This double door cabinet provides segregated access for the end-user and the installer. Both doors are fully removable from base, which allows easy access during installation works and optical network reconfiguration. End-users can reconfigure the connections without exposing the installation workspace. The cable strain-relief is facilitated with dual cable tie "brackets".

MOMB series Outdoor metal fiber optic box, IP66

The OPTOKON MOMB metal box is designed for optical fiber cables termination outdoors. It is an IP66 design that resists moisture and dust entry. A single door box with lock is provided. Provision for up to 4 optical fiber cables to enter or leave the enclosure through weatherproof cable glands is provided. Four cable anchoring points are provided. The MOMB includes a set of individually removable splice trays according to the customer request; each tray can accept 12 fusion splices. The splice tray stack is secured by a long length hook and loop tie. The housing contains standard CNPM coupling panels with connector adaptors of all most industry used standards.

MOTB-X24A Termination Box

Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

MOTB-X30 Termination Box

The MOTB-X30 termination box is designed to be used in distribution nodes of FTTH network, MDU building cabinet for example. It allows termination of optical cable by splicing of pigtails, including connection passive optical splitters 1:4, 1:8 and 1:12 into passive fiber optic infrastructure. The ruggedized box is designed for both indoor and outdoor applications.
The MOTB-X30 box includes a holder for SC (E2, DLC) type coupling adapters and splice cassette for heat shrinkable or mechanical splice protection sleeves and holder for passive splitter. Provision for 2 (MOTB-X30B) or 3 (MOTB-X30A) optical fiber cables to enter and 12 smaller entries to leave the enclosure through weatherproof cable glands is provided. Outlet ports allow installation of 24 connectorized patchords.


MOTB-X12 Termination Box

MOTB-X12 is designed for the FTTH application and widely used in Telecommunication networks, CATV Networks, Data communications networks and Local area networks. MOTB-X12 is suitable for wall-mounting and pole-mounting.

MOTB-002 Indoor Termination Box

Termination box MOTB-002 suits for jointing fibers with fiber pigtail and it protects fiber optic splices and helps to distribute. The termination box is either a wall-mounting type or desktop type, which is mainly used in telecommunication equipment room and network equipment room. Termination box MOTB-002 is suitable to connect the drop cables to the raiser fibers splices. It is also suitable to connect cable and pigtails.The termination box is for indoor wall mounting. MOTB-002 is applicable for splicing 2 pieces of fiber cable with max. diameter Ø16mm.

MOTB-Y24A Termination Box

Multipurpose fiber optic distribution-termination box MOTB-Y24A is designed to provide a flexible platform to address the multitude of applications that exist in residential and commercial FTTx installations. Can deliver with pre-installed SC adapters. Easy to install and is capable of being mounted directly to standard electrical junction boxes or directly to wall. The box interior can be configured to address slack storage, splicing, cross connect, hardened adapter applications or any combination. The Distribution box kit includes all the necessary accessories –parts for complete box installation.

MOTB-X48A Termination Box

The MOTB-X48A distribution box is designed to be used in distribution nodes of FTTH network, MDU building cabinet for example. It allows termination of optical cable by splicing of pigtails, including connection passive optical splitters 1:8, 1:16, 1:32 into passive fiber optic infrastructure. The ruggedized box is designed for both indoor and outdoor applications. The MOTB-X48A box includes a holder for SC type coupling adapters and splice cassette for heat shrinkable or mechanical splice protection sleeves and holder for passive splitter. Provision for 2 optical fiber cables to enter and 12 smaller entries to leave the enclosure through weatherproof cable glands is provided. Outlet ports allow installation of 48 connectorized patchords.

MOTB-X04 Wall mount Distribution Box

The MOTB-X04 small distribution box is designed to be used in distribution nodes of FTTH network, floor cabinet for example. It allows termination of optical cable by splicing of pigtails, including connection passive optical splitters 1:4 into passive fiber optic infrastructure. The ruggedized box is designed for both indoor and outdoor applications. The MOTB box includes a holder for SC type coupling adapters and splice cassette for heat shrinkable or mechanical splice protection sleeves and holder for passive splitter. Provision for optical fiber cable to enter and 4 smaller entries to leave the enclosure through weatherproof cable glands is provided. Outlet ports allow installation of 4 / 8 connectorized patchords.

MOTB-X20 Wall mount Distribution Box

The MOTB-X20 distribution box is designed to be used in distribution nodes of FTTH network, MDU building cabinet for example. It allows termination of optical cable by splicing of pigtails, including connection passive optical splitters 1:16 into passive fiber optic infrastructure. The ruggedized box is designed for both indoor and outdoor applications. The MOTB box includes a holder for SC type coupling adapters and splice cassette for heat shrinkable or mechanical splice protection sleeves and holder for passive splitter. Provision for 2 optical fiber cables to enter and 16 smaller entries to leave the enclosure through weatherproof cable glands is provided. Outlet ports allow installation of 16 connectorized patchords. Upon request the number of Duplex LC type adapters might be increased up to 32.

FP – Front Panel

The FP front panel introduces a low cost solution for fiber optic cable termination. The modular design can accept wide range of optical fibers capacity with various connector types.

OFMP - Fiber Management Panel

The OFMP is a rack mountable panel with brackets for easy vertical cable routing.

MK-1 and MK-2 Mounting Kit

The MK-1 mounting kit contains:

  • 8x cable tie 100 x 2.5 mm
  • 2x cable tie 190 x 4.8
  • 4x cable guide
  • 0.6 m wrapping spiral 6/8
  • 0.6 m wrapping spiral 10/11
  • Manual

The MK-2 mounting kit contains:

  • 8x cable tie 100 x 2.5 mm
  • 2x cable tie 200 x 4.6 with the narrower profile (designed for TMVJ, ZMPJ cabinets)
  • 4x cable guide
  • 0.6 m wrapping spiral 6/8
  • 0.6 m wrapping spiral 10/11
  • Manual


UHV – Vertical Unit Holder

The UHV unit holder combines the standard unit holder and patchcord organizer thus allowing vertical cable organization.

UH-X – Unit Holder

The unit holder is designed to hold whole ODF in the 19” rack

CH-X – Cable Holder

The cable holder is designed to ensure right position of cable inside ODF

KNS-12 Splice trays

The splice trays are designed for installation into the OPTOKON system of optical rack mount distribution frames and wall mount optical boxes. The splice trays are equipped with fixed internal fiber bend radius protectors, which allow storage and organization of spare fiber, both primary 250 µm and 900 µm coating. The KNS-SH-D splice holders can be used in the splice cassettes, designed for standard heat shrinkable protection sleeves.  The capacity depending on outer diameter of protection sleeves  after heating is 6 to 12 splices. The KNS-12S stackable series allows installation hinges at the sides of the cassette, which are designed for opening the block of cassettes and enabling easy access to the spliced fibers during fiber optic systems operation. The lid – optional accessories for each cassette type can be used to cover a single or block of cassettes.

GK- Grounding Kit

Grounding kit is designed for ensuring proper conductive connection of all ODF metal parts with grounding rod to prevent even dangerous difference of potential and consequently to avoid human injury or device damage…

Due to this reason, there is a possibility to provide grounding wires by using /G option in ordering code of ODF

CAPM cassettes

The OPTOKON CAPM cassette offers a convenient and much more reliable alternative to unprotected pigtail splicing or field termination. The CAPM cassettes accept passive fiber optic components such as attenuators, couplers/splitters, WDM and CWDM multiplexers, filters, circulators and many other networking devices. As the fiber optic components have been installed into the CAPM cassettes it is possible to include them into fiber optic networks by using the standard system of Optical Distribution Frames without  any need for special distribution frames.

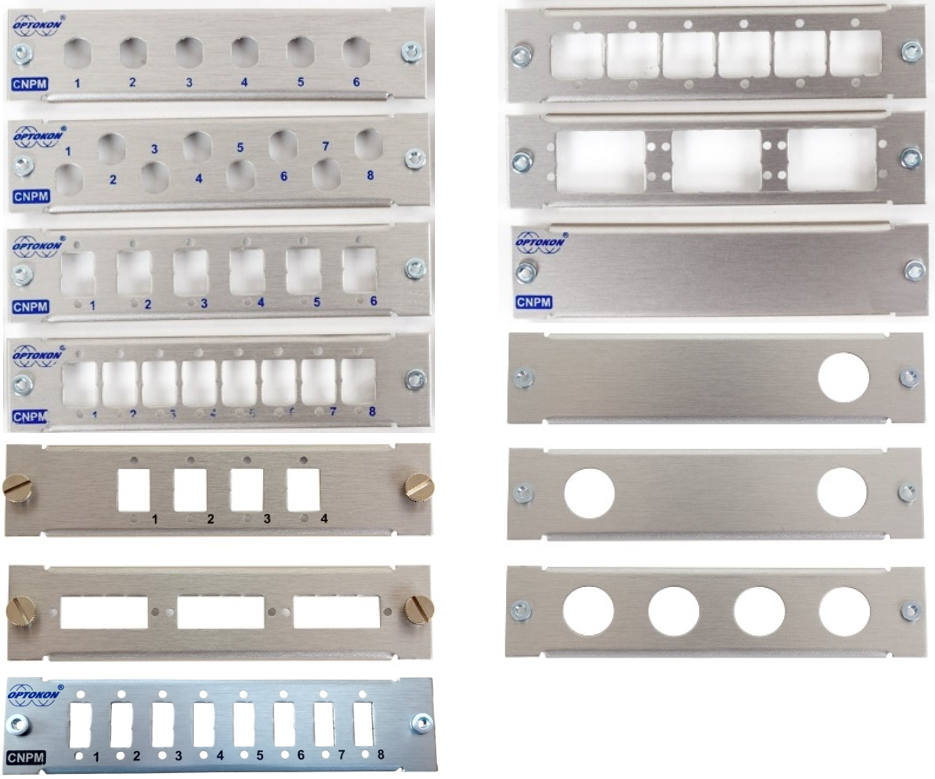

CNPM coupling panels

OPTOKON fiber optic coupling panels CNPM are manufactured from aluminum sheet metal and accommodate most common fiber optic couplings and hybrid adapters. OPTOKON offers a series of high density coupling panels that fit all OPTOKON´s fiber management products. These coupling panels are available with a variety of standard coupling styles in 6 and 8 counts. Custom coupling panels can be designed to suit your needs.

OPT-ER-2 IP41 Generic Rack

OPTOKON Generic Racks OPT-ER-2 are an exceptionally rugged and strong cabinet enabling it to be used for all application. OPTOKON Generic Rack OPT-ER-2 offers a highly cost-effective and assembly-friendly solutions for numerous applications in the field of fiber. The OPT-ER-2 is highly-configurable to the end-user’s requirements and provides unique features to benefit system designers, installers and network managers. Completely assembled standard cabinet can be delivered as a single enclosure with side panels or as a side by side cabinet. The rigidly welded frame construction can be dismantled and assembles easily without any special tools.

RS series 19" open frames (two-four post)

The RS series frames are used in closed rooms with controlled access and with suitable operating environment for installed components or wherever racks cannot be used for any reason. These frames are available either in single version (one frame), or in double version (two frames). It differs from the RSM series by its positioning on the base with adjustable feet (castors optionally).

ROV series Distribution racks 19" Optimal

19" Distribution Telecommunication and Data Racks are designed for installing patch panels, active components, servers, etc.

MCPE-04Y Fiber Optic Terminal Box (Wall mounted)

MCPE-04Y is an indoor wall mounted FTTH mini optic terminal box, made of high quality ABS plastic, small size, with plastic splice tray inside. It provides an economical way for terminating optical fibers.

MCPE-02 End User Terminating Box

The OPTOKON MCPE-02 box introduces the wall mount, two fibers box, which is designed for optical cable termination in the customer premises – end user site in FTTH projects. The MCPE-02 box includes the holder for two splice protection sleeves. The internal fiber guides ensure the arrangement of the fiber reserve and its protection against smaller bending radius than allowed. The MCPE-02 allows installation of two SC single coupling adapters.

MCPE-04F End User Terminating Box (Wall Outlet)

End User Terminating Box (Wall Outlet)

MCPE-02F End user terminating box

End user terminating box

MCPE-01T End user terminating box

Wall outlet MCPE-01T is designed for FTTH applications, it is used to terminate optical cables to pigtails at customer premises. It is mounted on the wall. The MCPE-01T provides mechanical protection and managed fiber control in an attractive format. The cable is fed to the wall outlet from top side, bottom side or from the back. A patchcord leads from the wall outlet to the active equipment (CPE –Customer Premises Equipment). The MCPE-01T allows installation of one or two adapters, based on standard SC footprint.

MCPE-01F End user terminating box

Wall mount outlet MCPE-01F is designed for use in residential and business applications for the termination of up to 2 fibers. It can hold max 2 SC adapters. The unit can be quickly installed within an office or house.
