OFT-4212R Fiber optic 4 channels optical test station
docx_7a5ec128e81b712a53e22ac13787efc5

OFT-4212R Fiber optic 4 channels optical test station

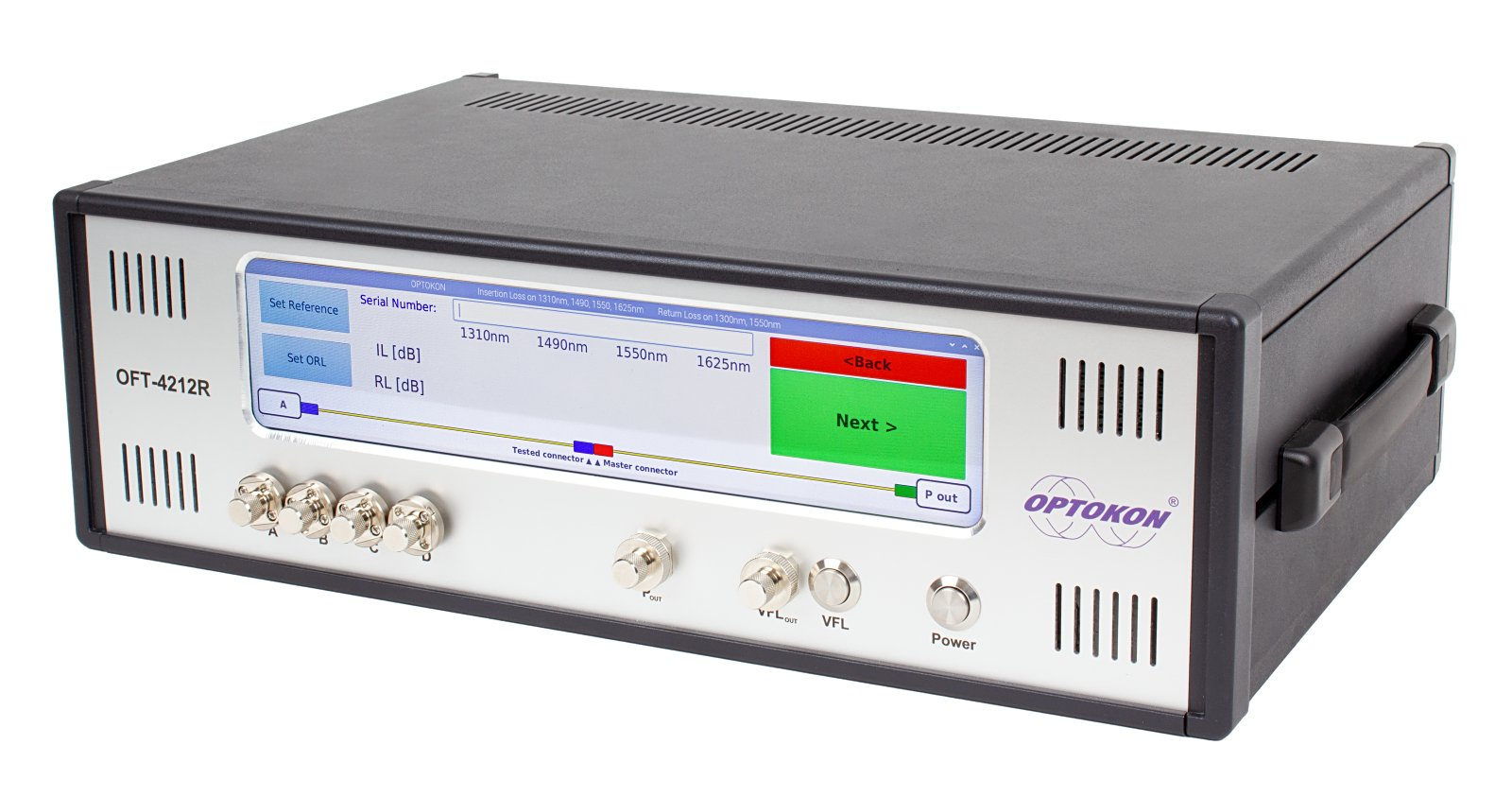

OFT4212R is a connector assembly test station, equipped with set of Light sources, Optical Return Loss module, four channel power meter and control unit with touch display.

This solution provides full automated test of connector with graphical guidance.

Serial numbers of tested connectors can be entered manually or by QR code reader.

Measured values are checked if they are within expected range, then displayed in GREEN or RED color as a warning.

If there is a warning, the measurement can be easily repeated.

All measured data are automatically stored on local SSD.

  • Features
  • Specifications
  • Application
  • Documents

Connector test with Insertion loss at 1310, 1490, 1550 and 1625 nm, Return loss at 1310 and 1550 nm:

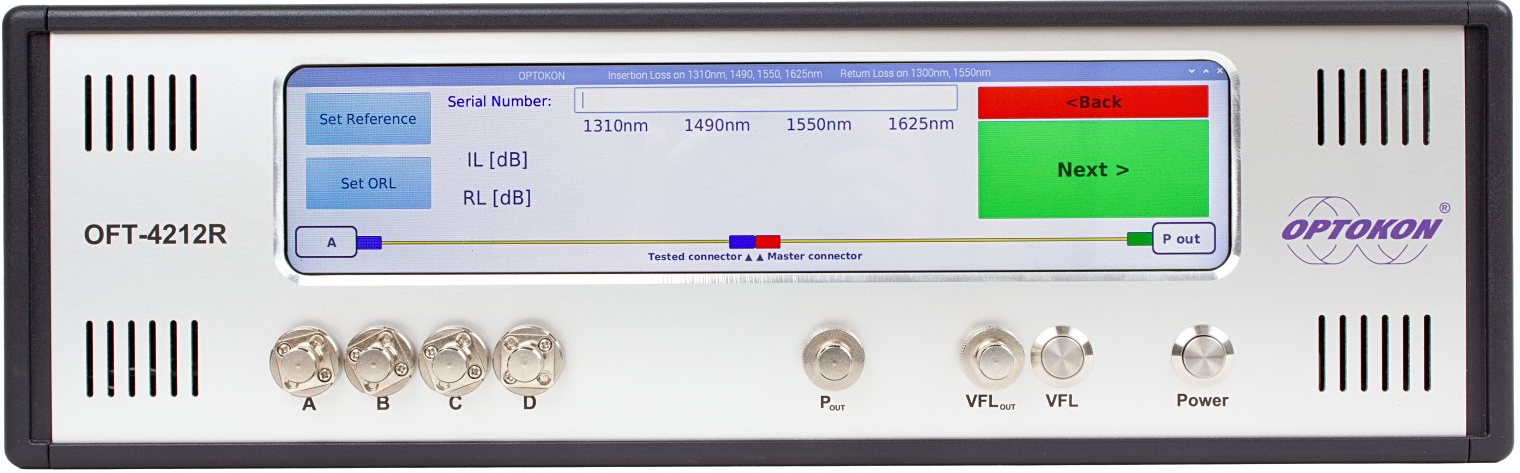

Front panel view – comfortable testing procedure:

Light source



Interface

FC/APC

Working wavelengths

850, 980, 1310, 1383, 1490, 1550, 1625 nm

Wavelength accuracy

± 2.0 nm

Wavelength stability, 24 hrs

± 0.1 nm

Output power

0 dBm

Accuracy

± 0.3 dB

VFL – visual fault locator, wavelength

650 nm

Power meter



Interface

FC, SC, LC, universal 2.5 mm, 1.25 mm

Photodetector

InGaAs

Spectral wavelength

850-1700 nm

Calibrated wavelengths for SM measurement

1310, 1383, 1550, 1625 nm

Dynamical range

-50 to +10 dBm

Uncertainty

± 5 %

Resolution

0.01

Displayed units

dBm, dB, W

Return loss meter



Dynamic range

0-70 dB

Working wavelength

1550 nm

Accuracy

0-50 dB:           0.5 dB

50-70 dB:         1.0 dB

Other functionality



SW for temporal data collection and storage

4 channels

Memory capacity

5000

Display results simultaneously in all 4 channels

Text / graphical

OFT4212R is a connector assembly test station, equipped with set of Light sources, Optical Return Loss module, four channel power meter and control unit with touch display.
