The OLC-AF, attenuation reference fiber is designed for the calibration of the attenuation scale of SM OTDR. The OLC-AF is wind from defined length of G.652 Single mode fiber or OM2 Multimode fiber.

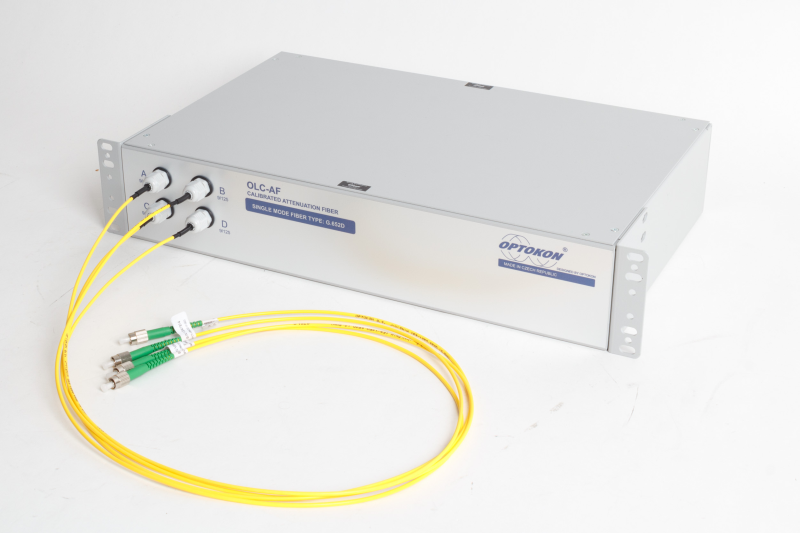

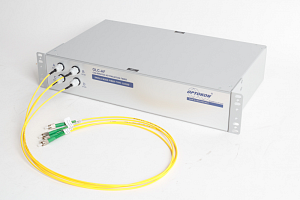

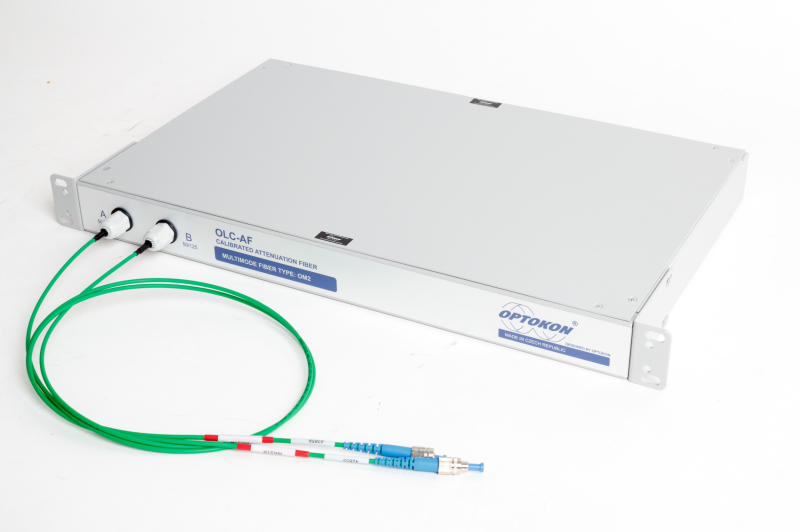

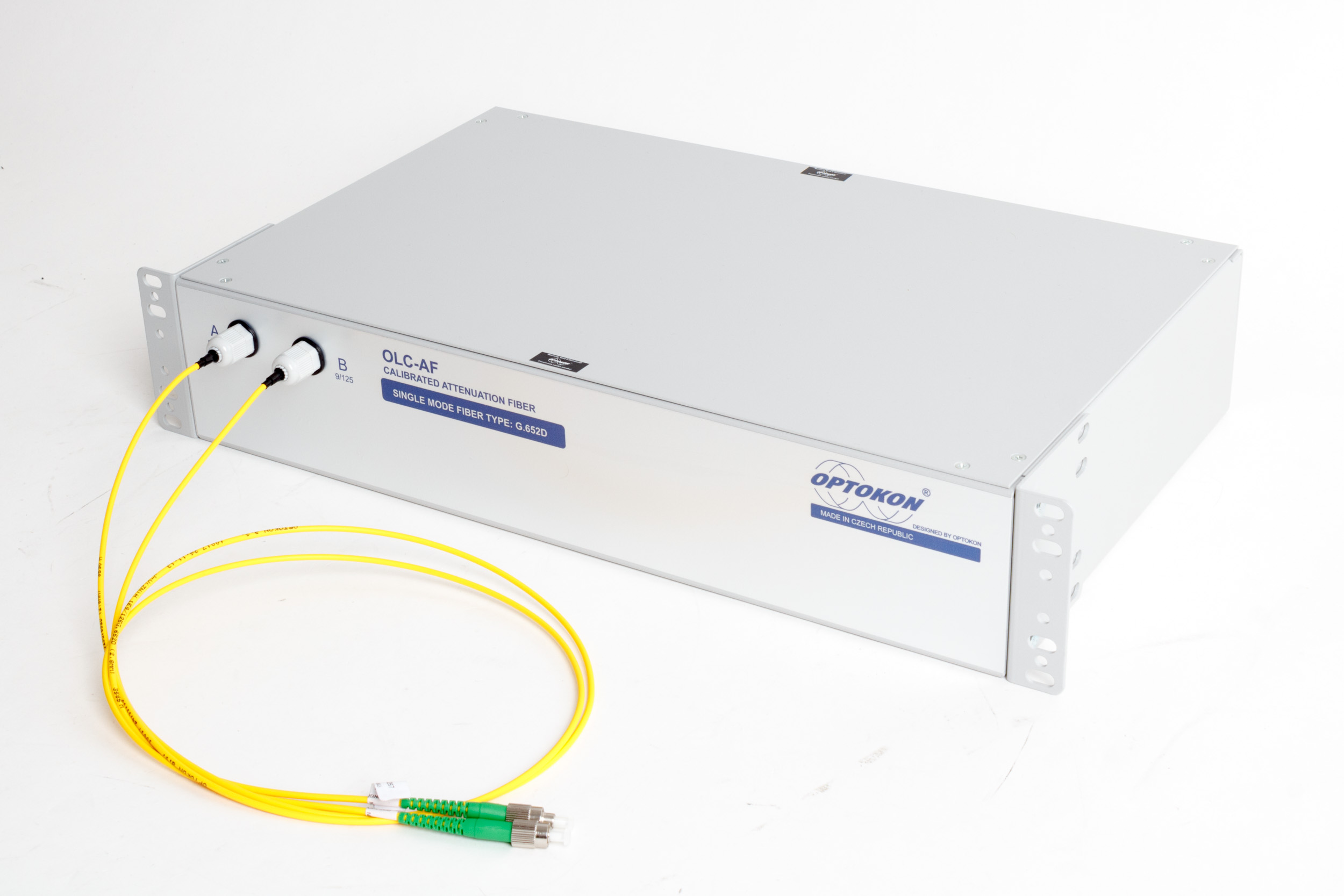

The OLC-AF consists in a fiber spool of a defined attenuation at required wavelength, which is installed in a thermally shielded rack mount optical distribution frame for better stability. The reference fiber is fitted with two APC connectors for single mode and PC connectors for multimode. The attenuation is calibrated at 1310 nm for SM or at 850 nm for MM.
OLC-AF Attenuation Reference Fiber (ARF) Single mode / Multimode
• Fiber attenuation 2, 4, 8, 16 dB
• Wavelength 1310 nm SM, 850 nm MM
• Fiber length up to 50 km
• Thermally shielded packaging in ODF
• Various types of optical connectors offer increased versatility and convenience.
• Optical connectors are dust and drop protected by a snap-on cover.
|
Parameter |
unit |
Note |
|
Fiber length |
m |
Up to 50 000 (250 µm bare fiber) |
|
Fiber type |
|
SM: G.652.D MM: OM2 |
|
Attenuation |
dB |
2, 4, 8, 16 dB |
|
Connectors Return loss |
dB |
>60 dB (APC) |
|
Wavelengths |
nm |
1310 850 |
|
Attenuation uniformity D (ʎ) |
dB |
Bidirectional Uni-directional |
|
19” box dimension |
mm |
1U (HxWxD) 44 x 432 x 265 2U (HxWxD) 88 x 432 x 265 |
Calibration of the attenuation scale of SM OTDR
TEQ_06-14_EN-OLC-ARF
