The LMC series introduces the media converter housed in a robust metal box. It provides Expanded Beam connectors for fiber optic cable and copper twisted pairs ports for harsh environmental conditions. The LMC rugged design extends the use of Ethernet in harsh environmental conditions – heavy industry, petrochemical, mines, broadcasting and other field applications. It meets the demands for mobility, easy installation and the mechanical resistance necessary for deployment in the field. The LMC converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by allowing connectivity up to 2 km over MM fiber, up to 50 kilometers if use the SM fiber. LED indicators show the power status of the converter, LAN port and fiber activity.
The basic LMC-01.BC configuration includes the media converter in ruggedized box. Data transmission and power supply are ensured via the same connectors, PoE (PD – powered device) or unused wires in data cable. Optical and copper wires cables might be ordered as accessories.

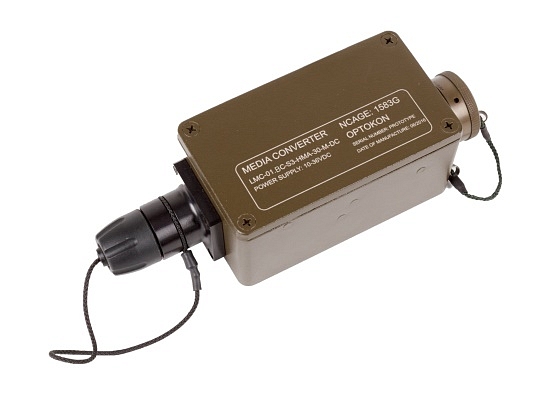

LMC-01.BC Fast Ethernet Media Converter
• 10/100Base-TX to 100Base-FX Converter
• Designed for interconnection of LANs in harsh environment conditions
• Fiber connectivity up to 2 km for MM, 10 km for SM
• HMA fiber optic connector
• Auto-Negotiation
• Auto MDI/MDIX
• Operation in Store and forward mode1
Note: 1) Pass through mode on request
| Standards | IEEE 802.3 10Base-T, 802.3u 100Base-TXIEEE 802.3u 100Base-FX |
| Protocol | CSMA/CD |
| Interface |
Rugged RJ-45 port using copper twisted pair cable2: data transmission & power supply HMA connector: 62.5/125 µm or 50/125 µm MM fiber optic cable 9/125 µm SM fiber optic cable |
| Wavelength |
MM:1300 nm SM: 1310 nm |
|
Maximum Segment Length3 |
UTP cable (10Base-T, 100Base-TX): 100 m MM fiber optic cable, full duplex: 2 km SM fiber optic cable, full duplex: 10 km |
|
Environmental Temperature4 Humidity |
According to MIL-STD 810E Operating -30°C to +70°C, Storage -50°C to + 85°C 10% to 95% |
| Mechanical | According to MIL-STD 810G and ČOS 999902 |
| EMC | EN 55022, EN 61000-6-3 |
| Power Supply | PoE (PD – powered device) |
| Dimension | 115 x 65 x 55 mm |
| Weight | 0.5 kg |
Note: 2) Copper wires cable, which ensures data connection – can be delivered on request
3) Longer distance in case of SM fiber possible
4) extended operating temperature -30°C to +80°C available on request
Typical applications:
• temporary installations
• field networks
• petrochemical and heavy industry
• disaster control
