Durable Universal Cable for indoor and outdoor applications, for plenum and riser installations.

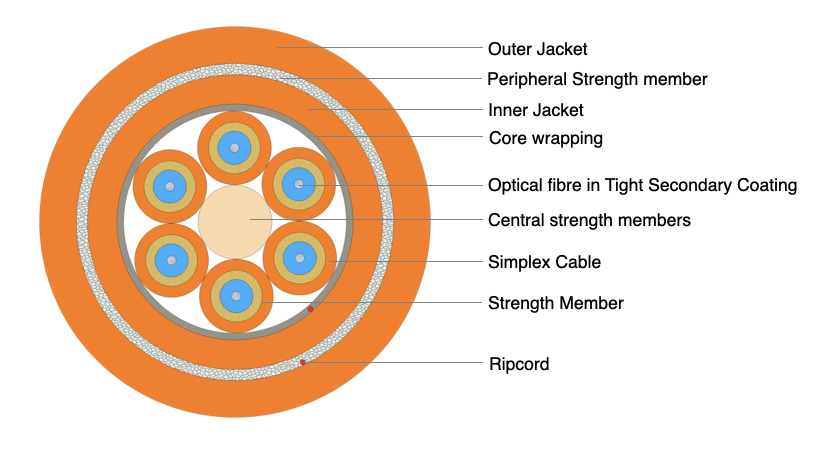

Universal Breakout Cable - Double Jacket 6F
Durable universal cable for indoor and outdoor use—suitable for plenum ceilings and riser pathways.
| Fiber count | 6 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fiber colour | Natural |
| Buffer material | Halogen-free flame-retardant thermoplastic compound |
| Simplex jacket material | Halogen-free flame-retardant thermoplastic compound |
| Simplex Diameter | 2.0 mm |
| Central Strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Inner jacket | Halogen-free flame-retardant thermoplastic compound |
| Inner Jacket thickness | 0.8 mm |
| Peripheral strength members | Water-swellable Glass yarns |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer Jacket thickness | 1.0 mm |
| Ripcord | 1x under inner and outer jacket |
| Cable outer diameter | 10.6 [mm] |
| Max. Loading (Short Term) | 2100 [N] EN 60794-1-21-E1 |
| Max. Loading (Long Term) | 400 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 2000 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 10 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius not load | 15 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 20 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Installation temperature range | 0 to +50 [°C] EN 60794-1-22-F1 |
| Cable Weight (calc.) | 121 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-U-BRCS-6(6x2.0)x9AHHGH-yy-zz |
| x – buffer stripability yy – fiber type zz – jacket color (see Cable code datasheet) |
0099_OPK-U-BRCS-6(6×2.0)x9AHHGH
