The cable is suitable for indoor or outdoor use. Cable is for a wide range of applications in FTTx networks.
FTTx Drop Cable 1-4F

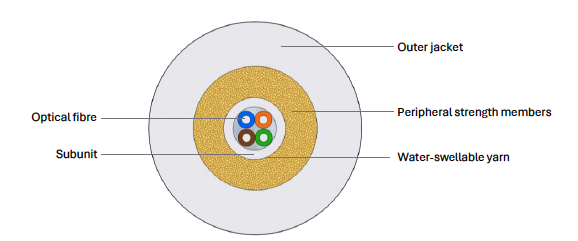

| Fibre Type | G.657.A1, G.657.A2, G.657.B3 |
| Fibre colour | EIA/TIA-598A |
| Subunit colour | Natural / Transparent |
| Peripheral strength members | Water-swellable Aramid Yarn |
| Outer jacket material | UV resistant, Halogen-free flame-retardant thermoplastic compound |
| Parameter | 1 fibre | 2 fibres | 4 fibres |
|---|---|---|---|
| Fibres in subunit | 1 | 2 | 4 |
| Number of subunits | 1 | 1 | 1 |
| Subunit diameter (mm) | 0.9 | 0.9 | 0.9 |
| Outer jacket thickness (mm) | 0.6 | 0.6 | 0.6 |
| Max. outer diameter (mm) | 3.1 | 3.1 | 3.1 |
| Calculated cable weight (kg/km) | 9.7 | 9.8 | 10.0 |
| Parameter | Value | Standard |
|---|---|---|
| Short-term tensile strength (N) | 900 | IEC 60794-1-101 |
| Long-term tensile strength (N) | 270 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 500 | IEC 60794-1-103 |
| Long-term crush resistance (N/100 mm) | 80 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 1 | IEC 60794-1-104 |
| Min. bend radius, no load (mm) | 5* | IEC 60794-1-111 |
| Min. bend radius, load (mm) | 60 | IEC 60794-1-111 |
| Operating temperature (°C) | −40 to +70 | IEC 60794-1-201 |
| Storage temperature (°C) | −40 to +70 | IEC 60794-1-201 |
| Installation temperature (°C) | +5 to +50 | IEC 60794-1-201 |
| Water tightness (1 m / 24 h) | No leakage | IEC 60794-1-205 |
| Fire reaction class | Eca | EN 50575, EN 13501-6 |
0023_FTTx Drop Cable 1-4F
