The cable is suitable for indoor or outdoor use. Cable is for a wide range of applications in FTTx networks.

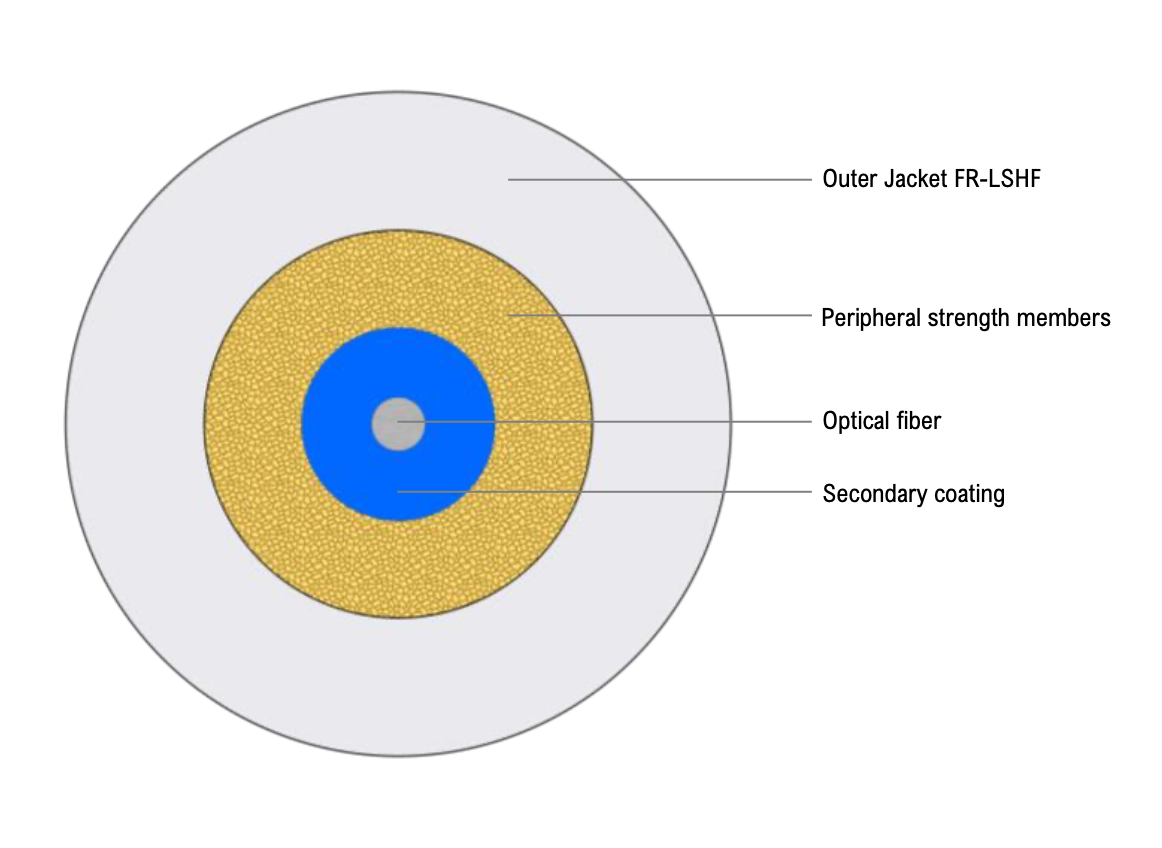

FTTx Drop Cable 1F
| Fiber Type | G.657.A1, G.657.A2, G.657.B3 |
| Fiber color | Natural |
| Buffer diameter | 0.9 mm |
| Buffer material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability (20 cm in one step). |
| Buffer colour | Blue |
| Peripheral strength member | Water-swellable aramid yarn |
| Outer jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Outer jacket colour | White |
| Outer jacket thickness | 0.6 mm |
| Cable outer diameter | 3.1 [mm] |
| Max. tensile loading | 400 [N] |
| Max. compressive loading | 500 [N] |
| Max. Impact loading | 1 [Nm] |
| Min. bend radius not load | 5* [mm] |
| Min. bend radius load | 60 [mm] |
| Operating temperature range | -40 to +70 [°C] |
| Installation temperature range | +5 to +50 [°C] |
| Storage temperature range | -40 to +70 [°C] |
| Cable Weight | 9.7 [kg/km] |
| Class of fire reaction | Eca |
| Test standards | EN 60793-1, EN 60794-1-21, EN 60794-1-22, EN 13501-6 |
0023_FTTx Drop Cable
