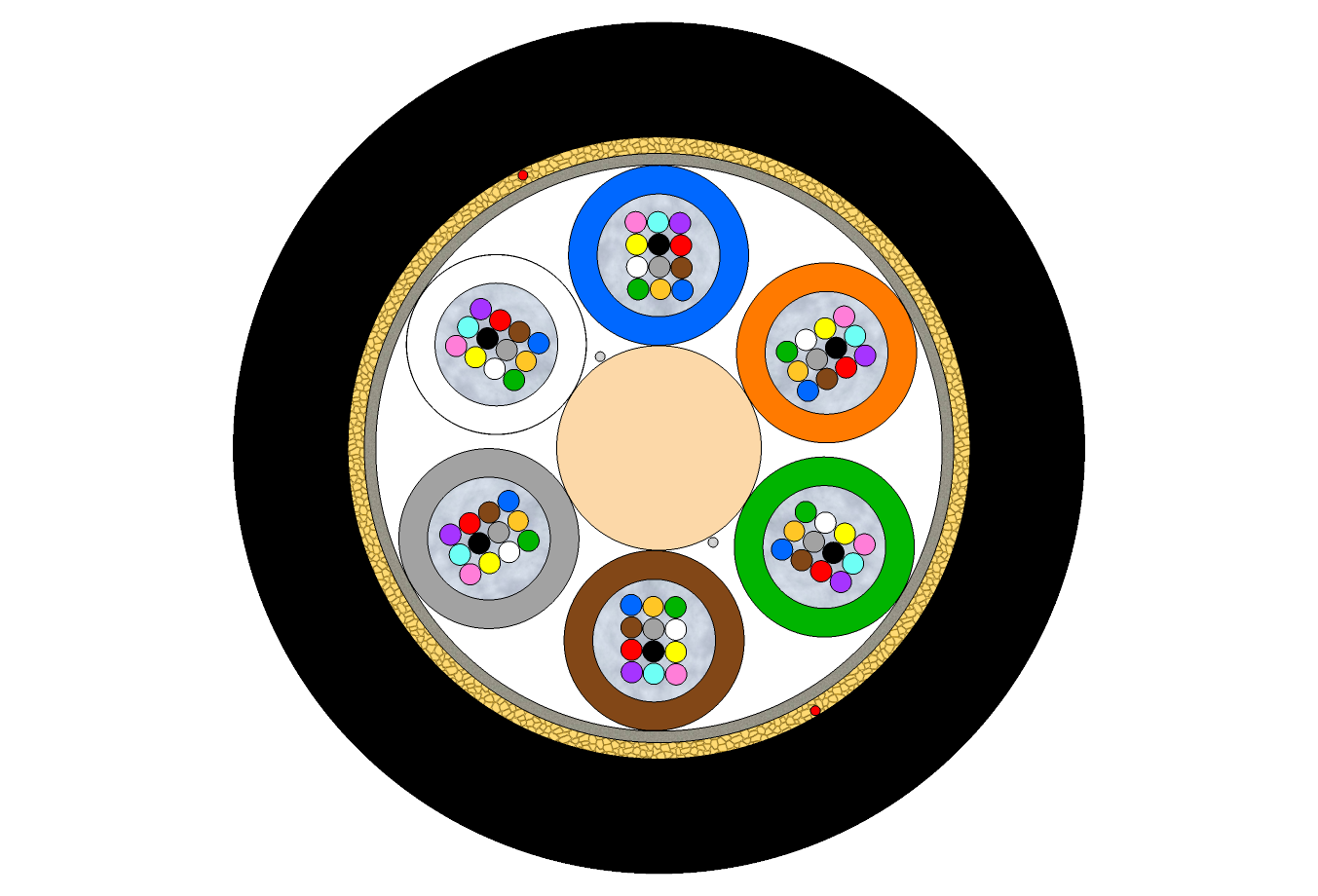

All dielectric self-supporting (ADSS) cable for overhead installations

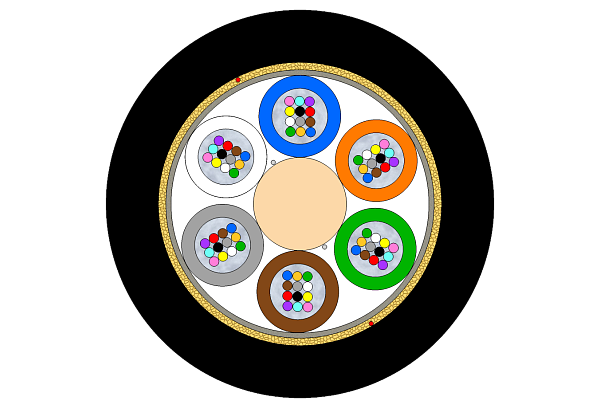

OPK-O-MTFDA-72(6x2.2)LTAP
| Fiber Type | G.652.D, G.657.A1, G.657.A2 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown, Grey, White |
| Tube filling compound | Low-viscosity filling compound |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 2x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Outer jacket thickness | 1.4 mm |
| Parameter | Value | Unit |
|---|---|---|
| Nominal outer diameter | 10.4 | mm |
| Maximum allowable tension | 4520 | N |
| Maximum operational tension | 2540 | N |
| Temperature coefficient | 13.7 | ppm/K |
| Modulus | 10.26 | GPa |
| Maximum compressive loading | 1500 | N/10 cm |
| Maximum impact loading | 10 | Nm |
| Minimum bend radius (no load) | 15 | × OD |
| Minimum bend radius (load) | 20 | × OD |
| Operating temperature range | −45 to +70 | °C |
| Storage temperature range | −45 to +70 | °C |
| Installation temperature range | −15 to +50 | °C |
| Calculated cable weight | 83 | kg/km |
| Class of fire reaction | Fca | — |
