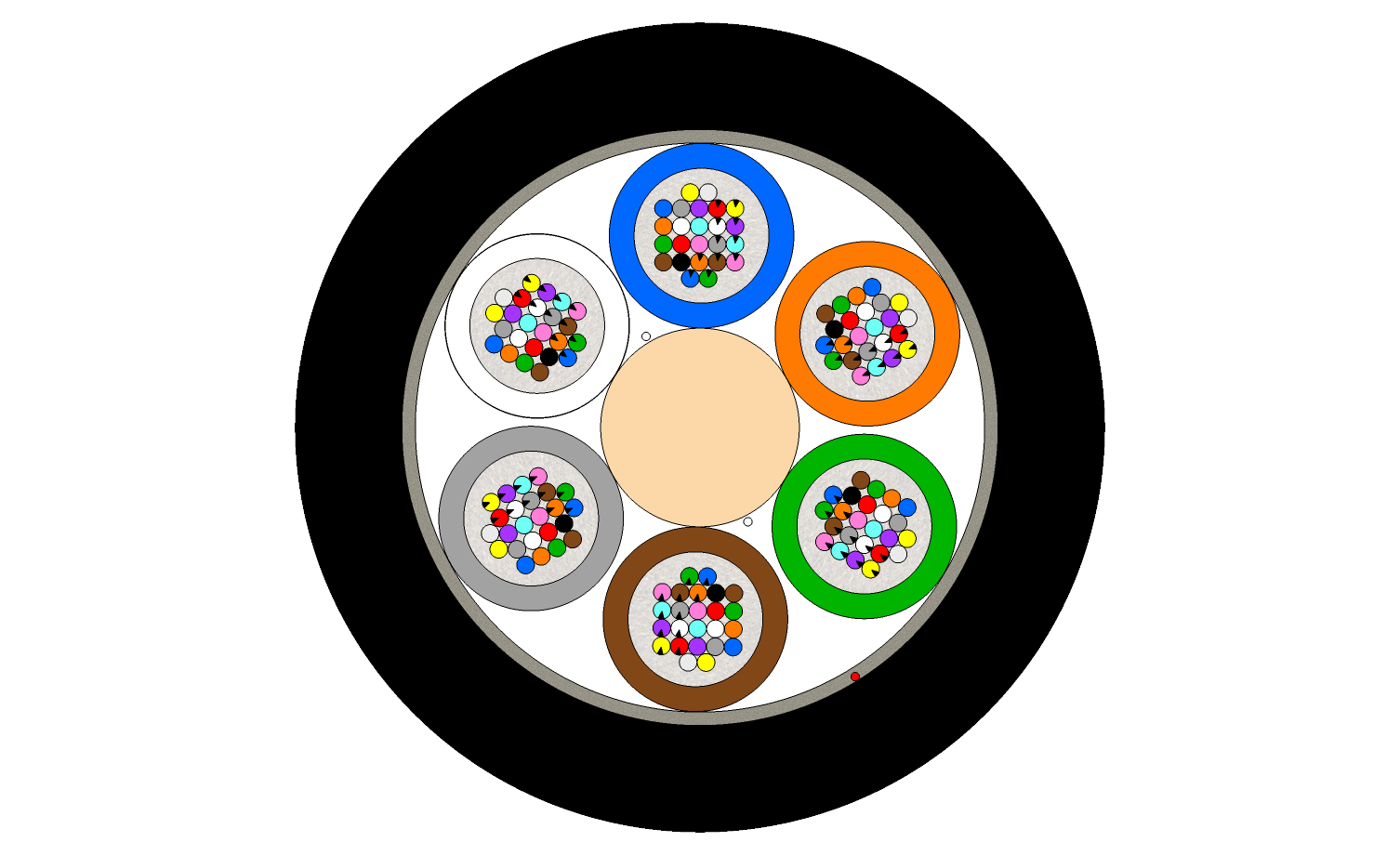

Outdoor Multitube Cable 144F (ZC)

ISO Certified

EN ISO 9001:2015
EN ISO 14001:2015
ČOS 051672 (AQAP 2110) Certified

Calibration Laboratory

Accredited Calibration Laboratory No. 2315
In Czech Republic & Malaysia

Testing Laboratory

Accredited Testing Laboratory No. 1755

NATO Supplier

OPTOKON NATO
Supplier Code: 1583G

National Security Certified

National Security Authority Certified: CONFIDENTAL

Member Of Cenelec

Member of CENELEC European Comittee for Electrotechnical Standardization

AOBP

Member of Defence and Security Industry Association

Chamber of Commerce

Member of the Czech Chamber of Commerce

STI Industry Partner

OPTOKON is a CISCO Solution Technology Integrator

Fiber count	144 (6x24)
Fiber Type	G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4, OM5
Fiber color 1-12	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Fiber color 13-24	Blue^BS, Orange^BS, Green^BS, Brown^BS, Grey^BS, White^BS, Red^BS, Natural, Yellow^BS, Violet^BS, Pink^BS, Aqua^BS
(^BS Black strip)
Tube	Gel-Filled PBT buffer tube
Tube color	Blue, Orange, Green, Brown, Grey, White
Tube filling compound	Low-viscosity filling gel
Central strength member	FRP rod
Core wrapping	Water-swellable tape
Ripcord	1x under outer jacket
Outer jacket	UV resistant black MDPE
Jacket thickness	1.5 mm
Nominal outer diameter	11.3 mm
Cable Weight (calc.)	99 kg/km

Max. Tensile Loading (Short Term)	2500 N
Max. Tensile Loading (Long Term)	1050 N
Max. compressive loading	1000 N/100 mm
Max. Impact loading	5 Nm
Min. bend radius not load	15 x OD
Min. bend radius load	20 x OD
Operating temperature range	-40°C to +70°C
Storage temperature range	-40°C to +70°C
Installation temperature range	-15°C to +50°C
Water tightness	No water detected on free end
Class of fire reaction	Fca
