Multitube fibre optic cable for external installation with insulated copper conductor for easy detection of the cable from the surface of the ground above the cable.

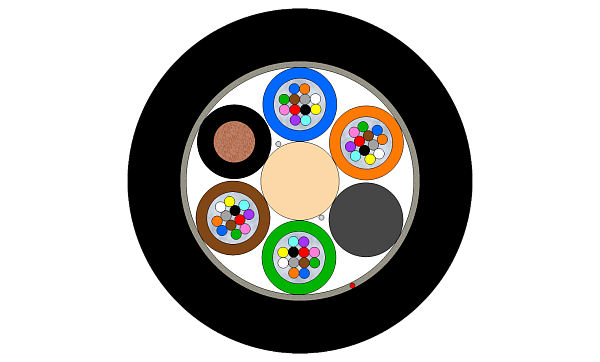

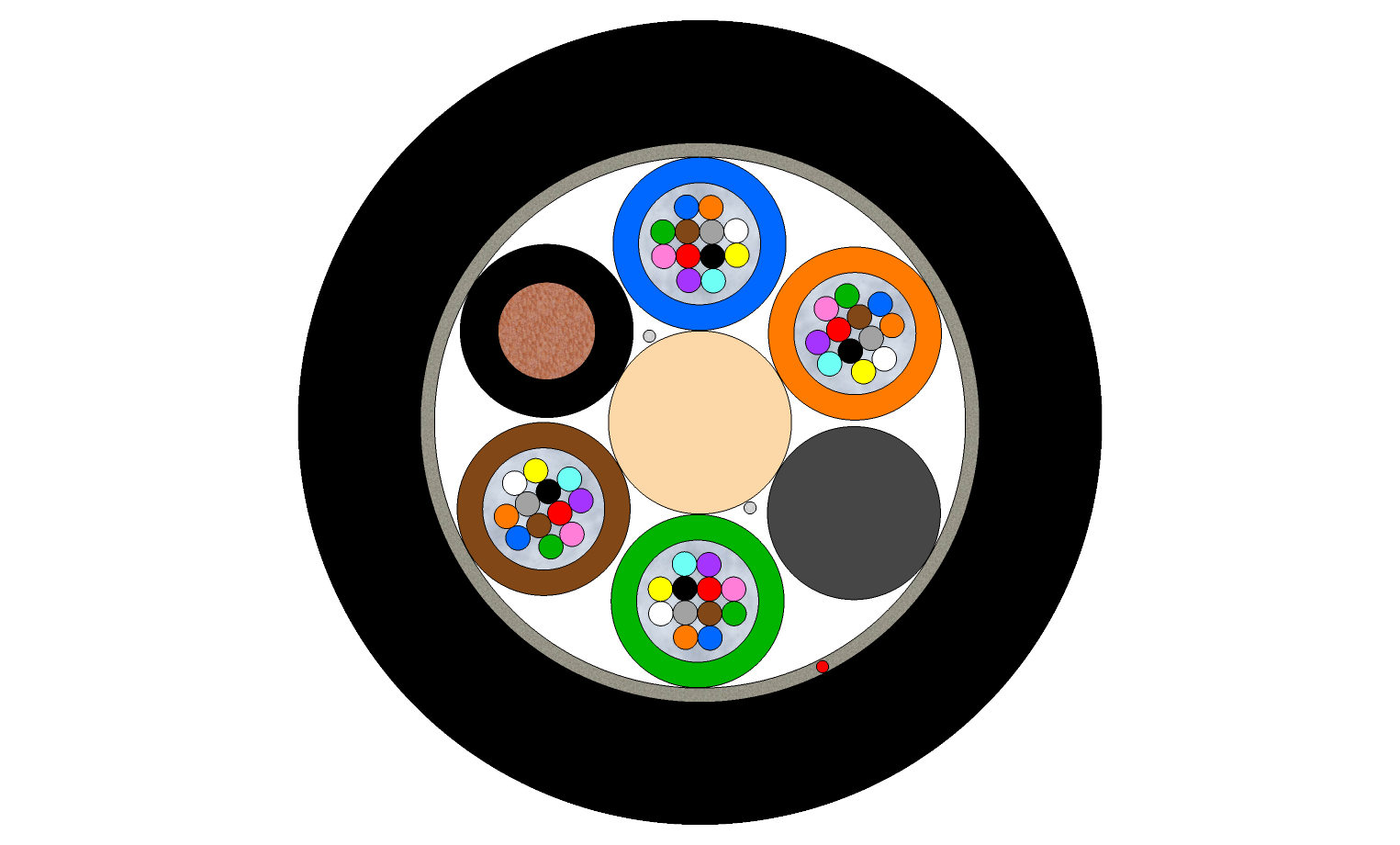

OPK-O-MTFDS-48(6x1.7)LTEP
| Fibre count | 48 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fibre colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube colour | Blue, Orange, Green, Brown |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Outer jacket | UV resistant black HDPE |
| Jacket thickness | 1.2 mm |
| Nominal outer diameter | 7.9 mm |
| Cable Weight (calc.) | 54 kg/km |
| Tensile strength (Short Term) | 950 N IEC 60794-1-101 |
| Tensile strength (Long Term) | 500 N IEC 60794-1-101 |
| Crush resistance | 1500 N/100mm IEC 60794-1-103 |
| Max. Impact loading | 10 Nm IEC 60794-1-104 |
| Min. bend radius not load | 15 x OD IEC 60794-1-111 |
| Min. bend radius load | 20 x OD IEC 60794-1-111 |
| Operating temperature range | -40°C to +70°C IEC 60794-1-201 |
| Storage temperature range | -40°C to +70°C IEC 60794-1-201 |
| Installation temperature range | -15°C to +50°C IEC 60794-1-201 |
| Water tightness (1 m / 24 hrs.) | No leakage IEC 60794-1-205 |
| Class of fire reaction | Fca EN 50575, EN 13501-6 |
0314_OPK-O-MTFDS-48(6x1,7)LTEP
