Fibre optic cable with full protection against rodents for direct burial installation.

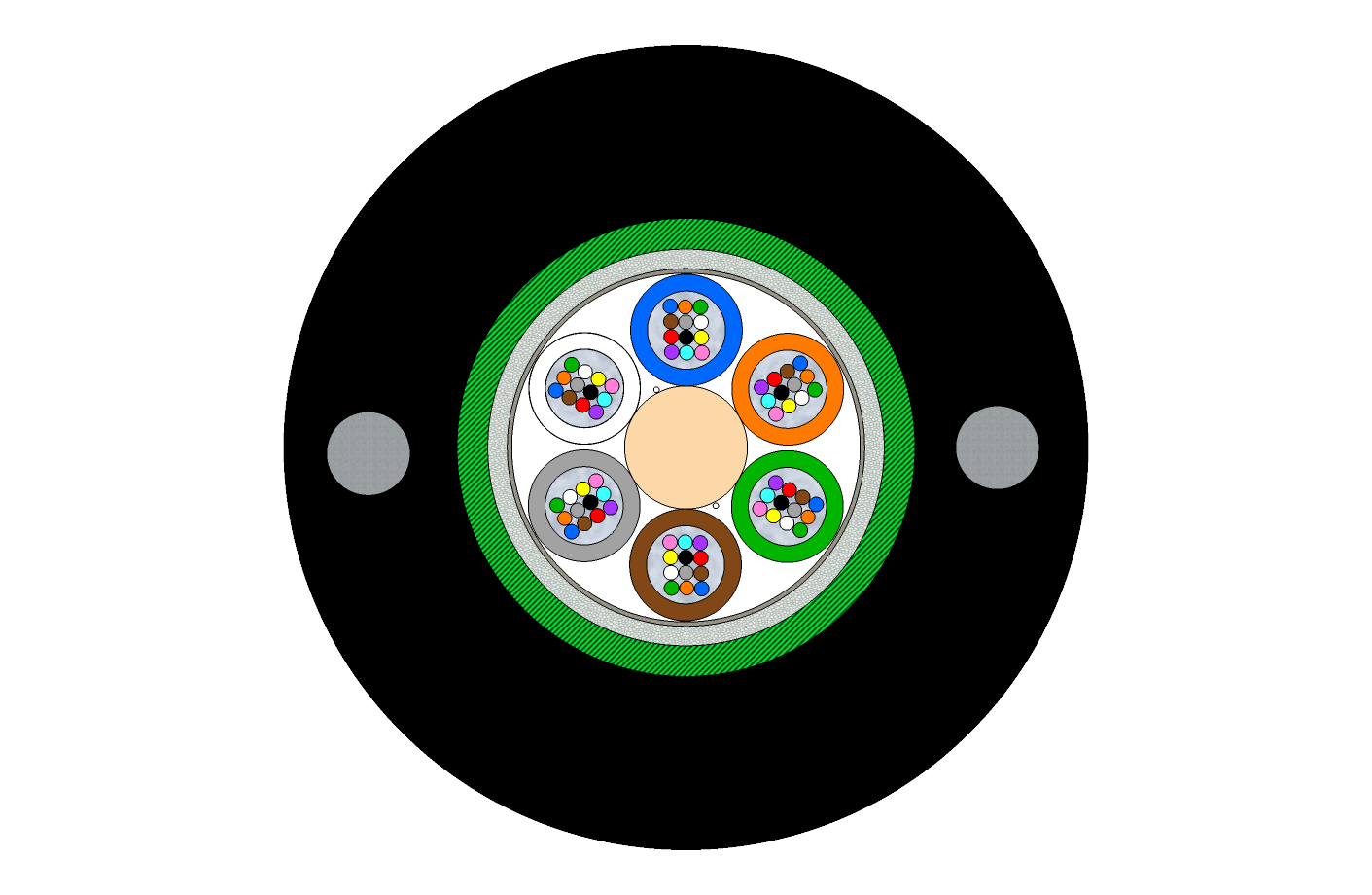

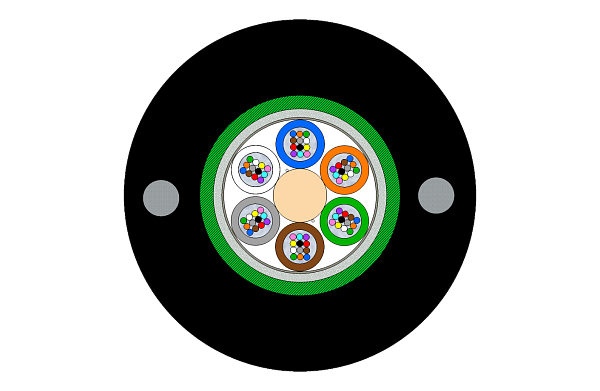

OPK-O-MTFDS-72(6x2.0)LTGXZP
| Parameter | Value |
|---|---|
| Fibre count | 72 |
| Fibre type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fibre colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube colour | Blue, Orange, Green, Brown, Grey, White |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarn |
| Armouring | Corrugated steel tape, longitudinally under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Jacket thickness | 2.5 mm |
| Nominal outer diameter | 13.4 mm |
| Cable weight (calc.) 2–12F | 200 kg/km |
| Max. Tensile Strength (Short Term) | 4200 N |
| Max. Tensile Strength (Long Term) | 1300 N |
| Crush resistance | 3500 N/100 mm |
| Max. Impact loading | 25 Nm |
| Min. bend radius not load | 20 x OD |
| Min. bend radius load | 30 x OD |
| Operating temperature range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| Installation temperature range | -15°C to +50°C |
| Water tightness | No water detected on free end |
| Class of fire reaction | Fca |
| Print legend | Manufacturer - Cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m ±5% on plywood reel |
| Cable Code (Ordering Code) | OPK-O-MTFDS-72(6x2.0)LTGXZP-xx-BK xx – fiber type (see Cable code datasheet) |
0342-23/39
0342_OPK-O-MTFDS-72(6x2,0)LTGXZP
