Indoor / Outdoor Cable for inter-building and intra-building backbone cabling
Indoor Distribution Cable
Indoor/Outdoor backbone cable for inter-building and intra-building links—reliable connectivity across your facility and campus.

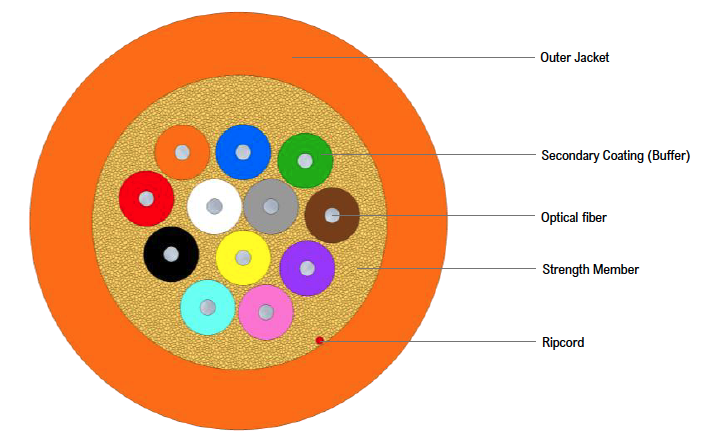

| Parameter | Value |
|---|---|
| Fiber count | Up to 12 |
| Fiber type | G.652.D, G.657 A1, G.657 A2, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fiber color | Natural |
| Buffer color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Buffer material | Thermoplastic FR-LSHF compound or UV curable resin |
| Buffer diameter | 0,9 mm |
| Strength member | Water-swellable Aramid yarns |
| Outer jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Outer jacket thickness | 1.0 mm |
| Outer jacket colour | see Color Codes specification |
| Ripcord | 1× under outer jacket |
| Fibre count | Cable Code (Ordering Code) | Cable outer diameter | Cable weight (calc.) |
|---|---|---|---|
| 2 | OPK-I-DSTS-2(2x0.9)x9AH-xx-yy | 4.6 mm | 20 kg/km |
| 4 | OPK-I-DSTS-4(4x0.9)x9AH-xx-yy | 5.5 mm | 27 kg/km |
| 6 | OPK-I-DSTS-6(6x0.9)x9AH-xx-yy | 5.9 mm | 31 kg/km |
| 8 | OPK-I-DSTS-8(8x0.9)x9AH-xx-yy | 6.2 mm | 34 kg/km |
| 12 | OPK-I-DSTS-12(12x0.9)x9AH-xx-yy | 6.8 mm | 41 kg/km |
| Parameter | Value | Unit | Standard |
|---|---|---|---|
| Maximum tensile loading | 1100 | N | EN 60794-1-21-E1 |
| Max. compressive loading | 1500 | N | EN 60794-1-21-E3 |
| Max. impact loading | 5 | Nm | EN 60794-1-21-E4 |
| Min. bend radius (not load) | 10 | OD | EN 60794-1-21-E11 |
| Operating temperature range (T9 buffer type) | −20 to +60 | °C | EN 60794-1-22-F1 |
| Operating temperature range (F9 buffer type) | −5 to +50 | °C | EN 60794-1-22-F1 |
| Storage temperature range (T9 buffer type) | −20 to +60 | °C | EN 60794-1-22-F1 |
| Storage temperature range (F9 buffer type) | −20 to +60 | °C | EN 60794-1-22-F1 |
| Installation temperature range | 0 to +50 | °C | EN 60794-1-22-F1 |
| Class of fire reaction | Fca | — | EN 13501-6 |
