FOI-400AG AutoGetWiFi Microscope
FOI-400AG AutoGetWiFi Microscope
FOI-400AG AutoGetWiFi Microscope
FOI-400AG AutoGetWiFi Microscope

FOI-400AG AutoGetWiFi Microscope

•    Over 5 hour duration time
•    Full series adapters
•    PASS/FAIL indicator
•    White LED for illumination

  • Features
  • Specifications
  • Application
  • Documents

Standard accessories:
FOI-400AG AutoGetWiFi,  1pc;
2.5 mm universal tip for male UPC, 1pc;
1.25 mm universal tip for male UPC, 1pc;
Tip for female FC/UPC, LC/UPC, SC/UPC - each 1pc;
AC battery charger, incl. USB 5 to mini-pin cable, 1pc; Micro SD card, 1pc; USB 2.0 WIFI module, 1pc; User manual, 1 copy;


Item Parameters
Size (H x W x D) mm 281 x 201 x 57 (Folded), 341 x 60 x 57 (Straight)
Weight 565 g
Resolution 0.52 µm
Image Sensor 1/1.8" CMOS
Optical Magnification X 8.72
Display 480*800 3.2 " LCD Touch Screen
Live lmage 25 fps
Field of View

620 µm x 620 µm (Preview Mode)

250 µm x 250 µm (Measure Mode)

130 µm x 130 µm (Fiber Care Mode)
Digital ZOOM 3 levels
Measurement time 2 sec (exclude Auto Focus)
Light Source Blue LED
Lighting Coaxial
Communication Port WiFi USB Type C
Power Internal Li-ion, battery (rechargeable, replaceable)
Duration Time More than 5 hours
Recharge Time 4 hours (Current: 2 A)
Power Supplier USB AC adaptor 5 V/ 2 A include plugs for US, EU, UK, AU
Aux Functions white LED for illumination, Pass/ Fail indicator, 60° fold-able body
Working Temperature -10°C to 40°C
Storage Temperature -20°C to 50°C
Humidity 90% non-condensing



All-ln-One Design
Based on embedded Linux system, a 3.2 inch high density LCD is integrated into the AutoGetWiFi probe. AutoGetWiFi can inspect and analyze individually. No connections to other devices are required.

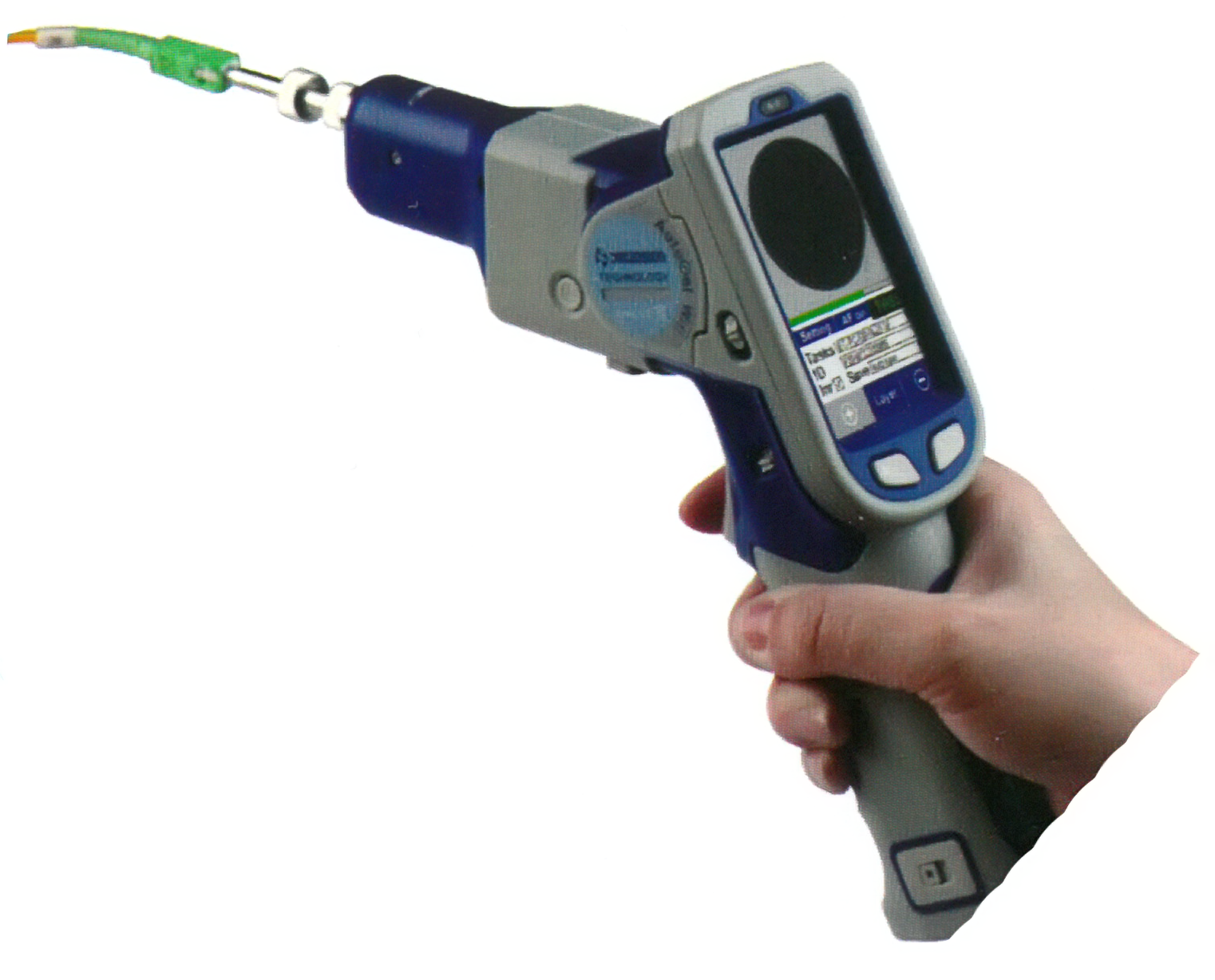

Fold-able & Flexible
With unique Rotational Axle Structure, AutoGetWiFi can be used in straight or be folded to measure devices in different heights or conditions.

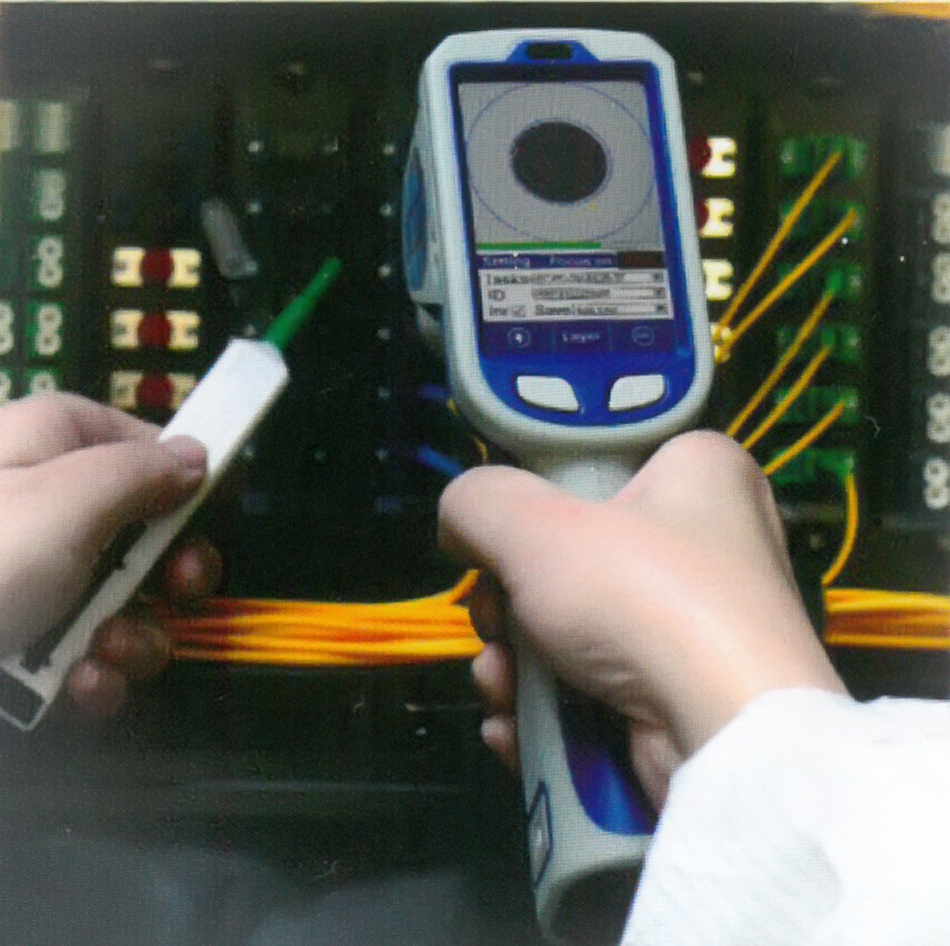

Single Hand Operation
With integrated 3.2 inch LCD touch screen is the interaction easy and effective. One hand operation is easy with using two push buttons which cover most setting functions.

One Click Measurement
Just click the trigger button, AutoGetWiFi will complete the whole measurement automatically. Dimension software will identify the DUT, auto-center and auto focus. The fiber end face will be analyzed accurately following IEC or customized standard. The testing results will be saved for future reference


Before

after

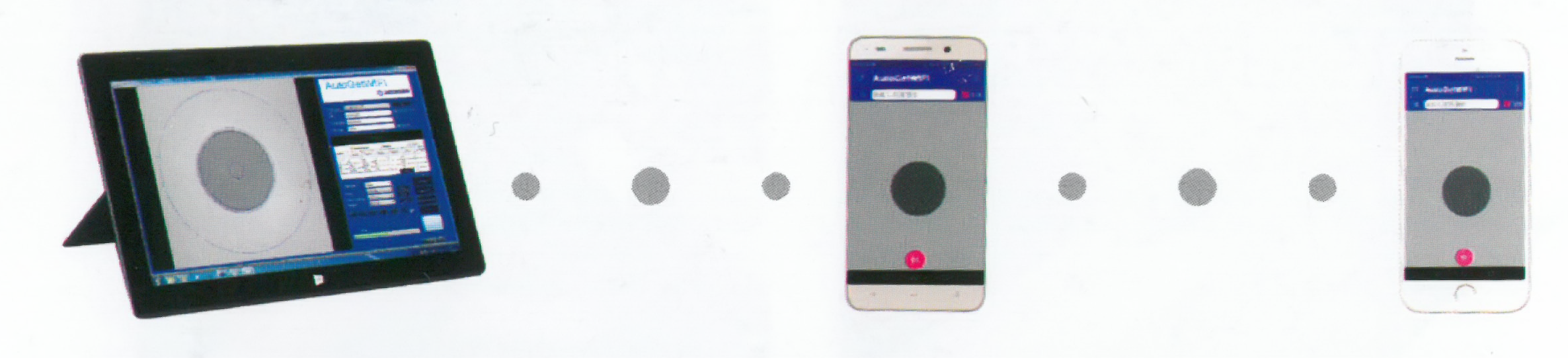

Wireless Data Transmit
Via wireless connection, AutoGetWiFi can transmit the real-time image, bulk data and single reports to intelligent terminal equipment on iOS, Android or Windows platforms. USB cable mode is also supported. The testing results can be also saved in embedded Micro SD card.

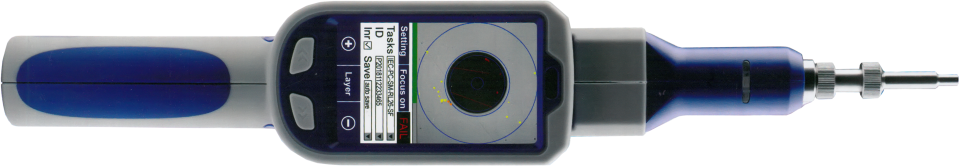

Can be used in straight or be folded to measure devices in different heights or conditions
