Full dielectric cable for external installation on cable trays or into duct by pulling

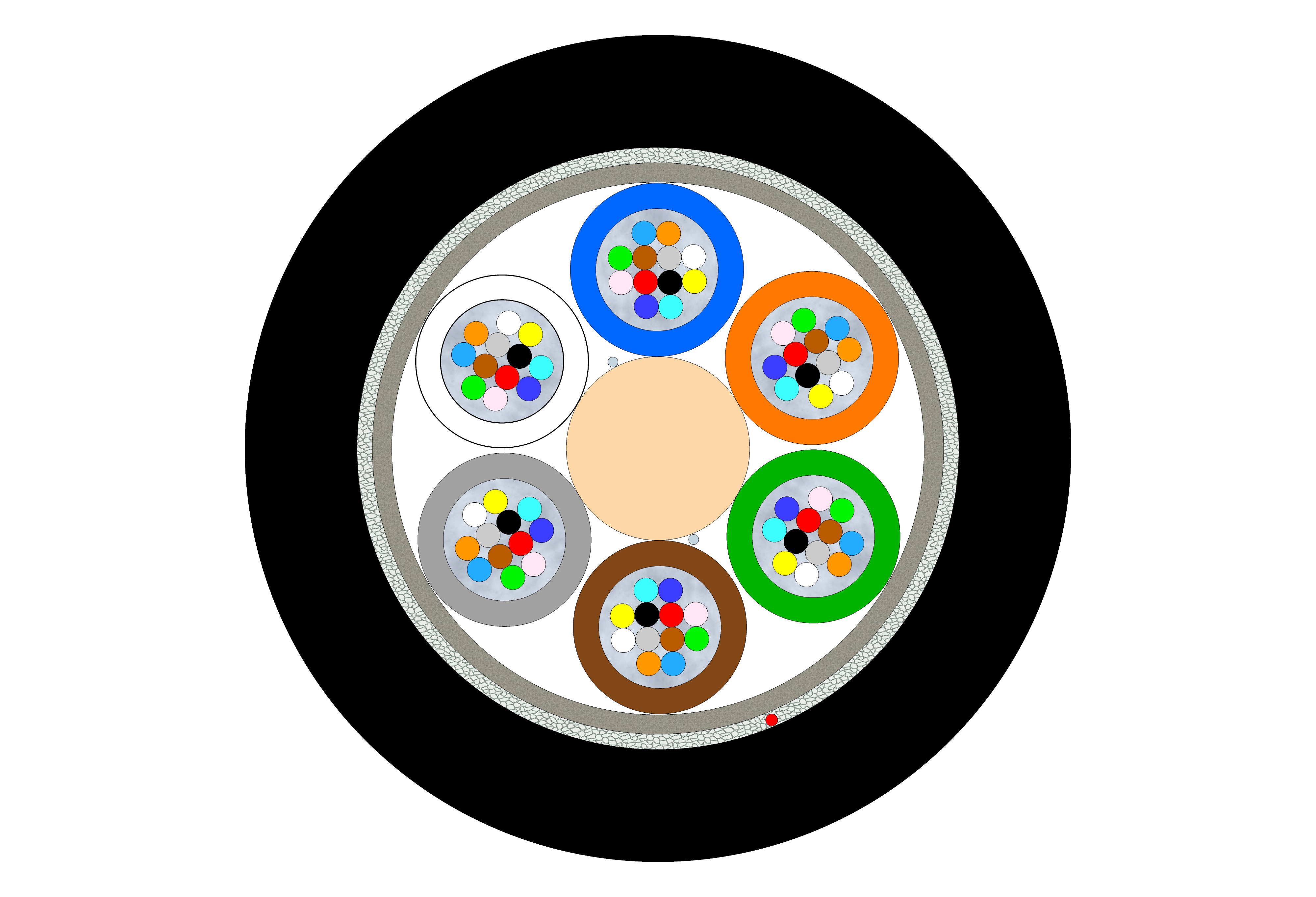

Outdoor Multitube Cable 72F (NC)
| Fiber count | 72 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown, Grey, White |
| Tube filling compound | Low-viscosity filling gel |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Jacket thickness | 1.1 mm |
| Cable outer diameter | 8.1 [mm] |
| Tube count | 6 |
| Filler count | 0 |
| Max. Tensile Loading (Short Term) | 1900 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 500 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 2000 [N] EN 60794-1-21-E3 |
| Max. Impact loading | 10 [Nm] EN 60794-1-21-E4 |
| Min. bend radius (no load) | 15 [OD] EN 60794-1-21-E11 |
| Min. bend radius (maximum load) | 20 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 56 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-O-MTFDS-72(6x1.7)LTGP-xx-BK xx – fiber type (see Cable code datasheet) |
| Marking Method | Ink-Jet |
| Print legend | OPK –cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2000 m, 4000 m ±5% on plywood reel or solid wooden non-returnable drum |
