0150-21/35

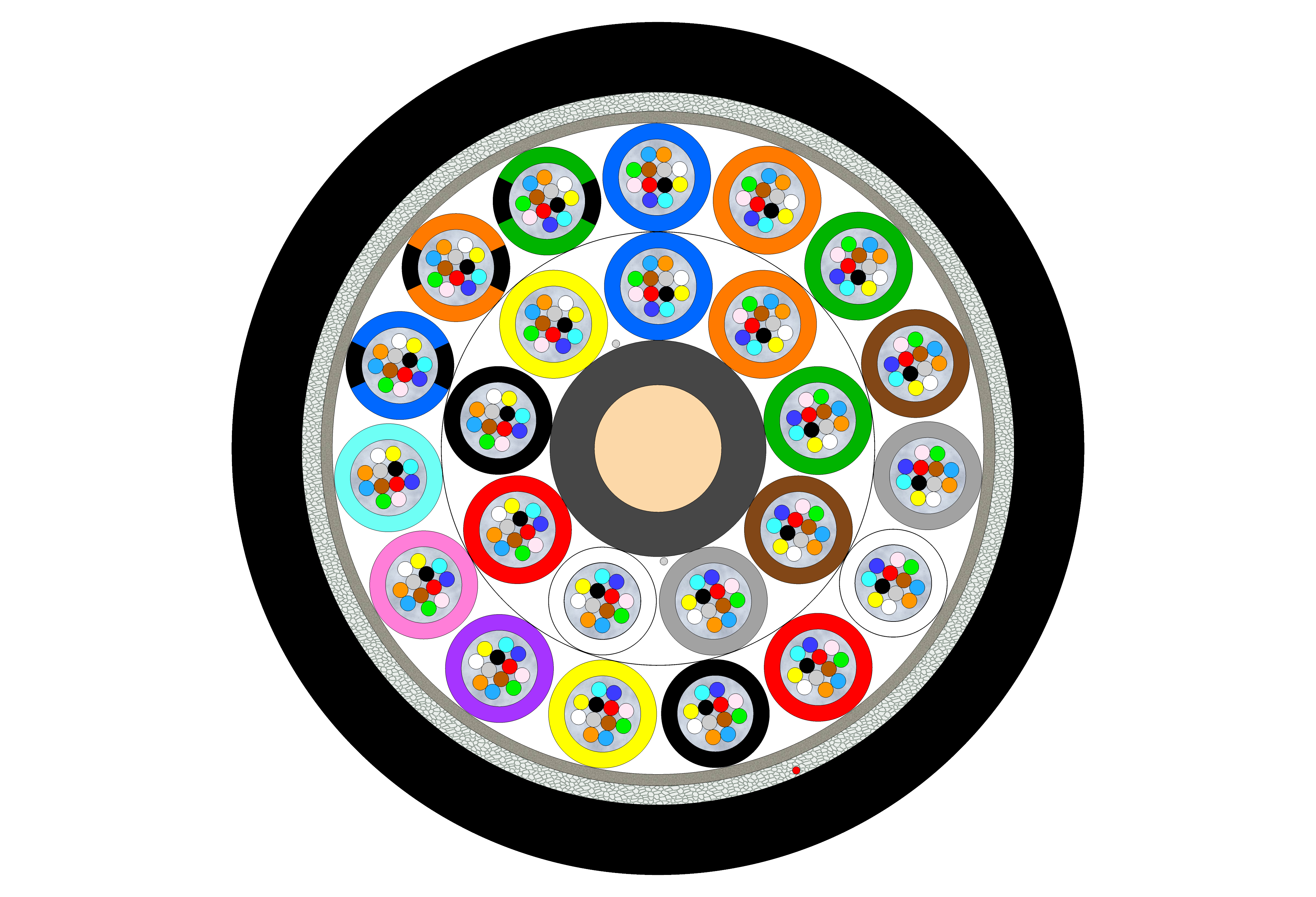

Full dielectric cable for external installation on cable trays or into duct by pulling

Fiber count	288
Fiber Type	G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4
Fiber color	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Tube	Gel-Filled PBT buffer tube
Tube color – inner layer	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow
Tube color – outer layer	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua, Blue^BS, Orange^BS, Green^BS (^BS= Black strip)
Tube filling compound	Low-viscosity filling gel
Central strength member	PE coated FRP rod
Core wrapping	Water-swellable tape
Peripheral strength members	Water-swellable glass yarns
Ripcord	1x under outer jacket
Outer jacket	UV resistant black HDPE
Jacket thickness	1.1 mm

Cable outer diameter	13.4 [mm]
Tube count	9+15
Filler count	0
Max. Tensile Loading (Short Term)	3300 [N] EN 60794-1-21-E1
Max. Tensile Loading (Long Term)	1700 [N] EN 60794-1-21-E1
Max. compressive loading	2000 [N] EN 60794-1-21-E3
Max. Impact loading	10 [Nm] EN 60794-1-21-E4
Min. bend radius (no load)	15 [OD] EN 60794-1-21-E11
Min. bend radius (maximum load)	20 [OD] EN 60794-1-21-E11
Operating temperature range	-40 to +70 [°C] EN 60794-1-22-F1
Storage temperature range	-40 to +70 [°C] EN 60794-1-22-F1
Installation temperature range	-15 to +50 [°C] EN 60794-1-22-F1
Water tightness	No water detected on free end EN 60794-1-22-F5
Cable Weight (calc.)	139 [kg/km]
Class of fire reaction	F_ca EN 13501-6

Cable Code (Ordering Code)	OPK-O-MTFDS-288(24x1.7)LTGP-xx-BK xx – fiber type (see Cable code datasheet)
Marking Method	Ink-Jet
Print legend	OPK –cable type – lot number- length marking per 1 m (customer print legend available on request)
Delivery length	2000 m, 4000 m ±5% on plywood reel or solid wooden non-returnable drum
