Outdoor glass yarn armoured Multitube Cable
Durable outdoor fiber optic cable with a higher level of protection against rodents for installing into ducts or on grids
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fibre colour | EIA/TIA-598A |
| Tube colour | EIA/TIA-598A |

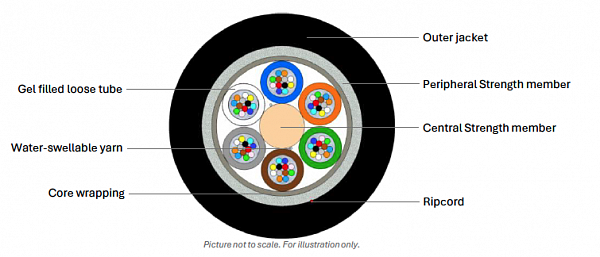

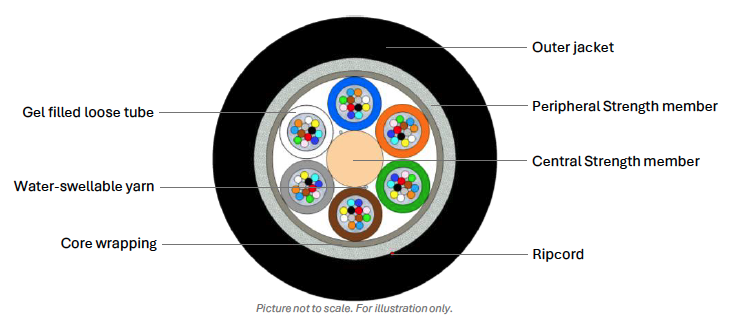

| Central strength member | FRP rod (coated if necessary) |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Parametr | 12 fibres | 24 fibres | 48 fibres | 60 fibres | 72 fibres | 96 fibres | 144 fibres |
|---|---|---|---|---|---|---|---|
| Number of fibres | 12 | 24 | 48 | 60 | 72 | 96 | 144 |
| Number of fibres in tube | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Tube count (layers) | 1 | 2 | 4 | 5 | 6 | 8 | 12 |
| Filler count | 5 | 4 | 2 | 1 | 0 | 0 | 0 |
| Nominal outer diameter (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 10.0 | 12.2 |
| Outer jacket thickness (mm) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| Calc. cable weight (kg/km) | 64 | 65 | 67 | 68 | 69 | 91 | 127 |
| Short-term tensile strength (N) | 3300 | 3300 | 3300 | 3300 | 3300 | 6400 | 9000 |
| Long-term tensile strength (N) | 1000 | 1000 | 1000 | 1000 | 1000 | 2000 | 2700 |
0157_Outdoor Glass Yarn Armoured Multitube Cable 12-144F (NC)
