Full dielectric cable for external installation on cable trays or into duct by pulling

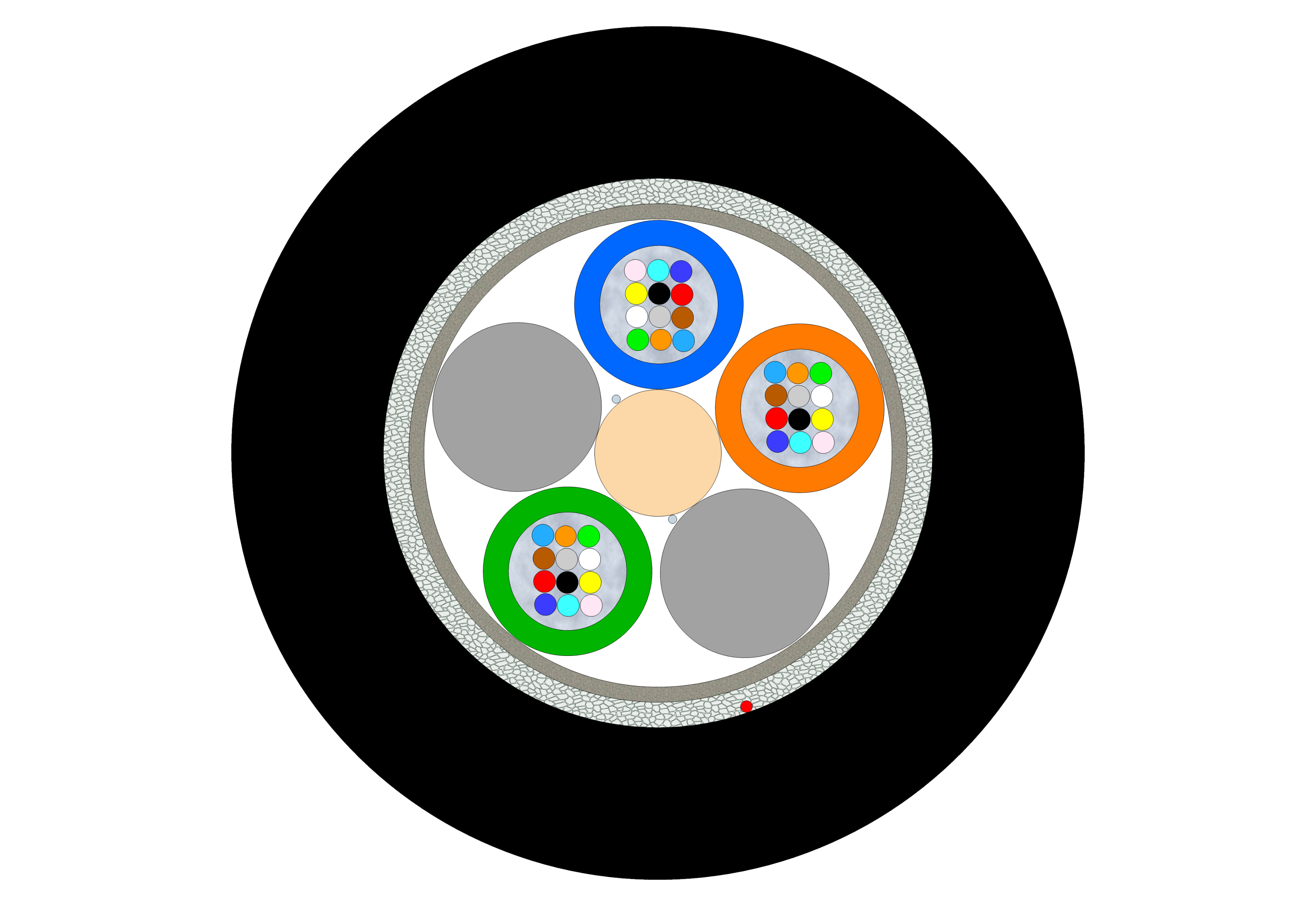

Outdoor Multitube Cable 36F (SC)
| Fiber count | 36 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green |
| Tube filling compound | Thixotropic Jelly Compound |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Jacket thickness | 1.5 mm |
| Cable outer diameter | 9.5 [mm] |
| Tube count | 2 |
| Filler count | 3 |
| Max. Loading (Short Term) | 1300 [N] |
| Max. Loading (Long Term) | 400 [N] |
| Max. compressive loading | 2000 [N] |
| Max. Impact loading | 20 [Nm ] |
| Min. bend radius not load | 15 [OD] |
| Min. bend radius load | 20 [OD] |
| Operating temperature range | -40 to +70 [°C] |
| Storage temperature range | -40 to +70 [°C] |
| Installation temperature range | -15 to +50 [°C] |
| Cable Weight (calc.) | 60 [kg/km] |
| Class of fire reaction | Fca |
| Test standards | EN 60790-1, EN 60794-1-21, EN 60794-1-22, EN 13501-6 |
0200_Outdoor_Multitube_Cable_36F(SC)
