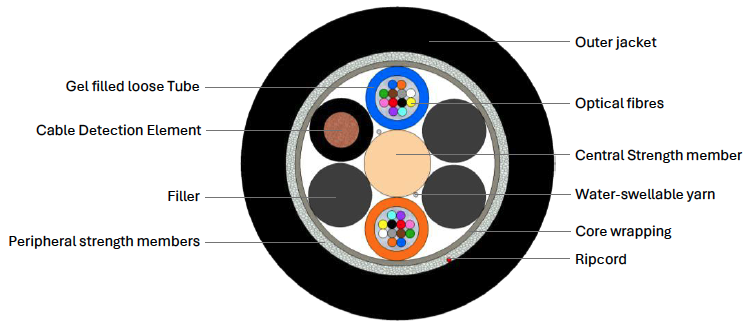

Multitube fibre optic cable for external installation with insulated copper conductor for easy detection of the cable from the surface of the ground above the cable.
OPK-O-MTFDS-24(6x1.7)LTEGP
| Parameter | Value |
|---|---|
| Fibre count | 24 |
| Fibre type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fibre colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube colour | Blue, Orange |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarn |
| Outer jacket | UV-resistant black HDPE |
| Jacket thickness | 1.2 mm |
| Nominal outer diameter | 8.4 mm |
| Cable weight (calc.) | 59 kg/km |
| Parameter | Value | Standard |
|---|---|---|
| Tensile strength (short-term) | 2000 N | IEC 60794-1-101 |
| Tensile strength (long-term) | 1100 N | IEC 60794-1-101 |
| Crush resistance | 2000 N/100 mm | IEC 60794-1-103 |
| Max. impact loading | 10 Nm | IEC 60794-1-104 |
| Min. bend radius (no load) | 15 × OD | IEC 60794-1-111 |
| Min. bend radius (under load) | 20 × OD | IEC 60794-1-111 |
| Operating temperature range | −40°C to +70°C | IEC 60794-1-201 |
| Storage temperature range | −40°C to +70°C | IEC 60794-1-201 |
| Installation temperature range | −15°C to +50°C | IEC 60794-1-201 |
| Water tightness (1 m / 24 h) | No leakage | IEC 60794-1-205 |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
0023_OPK-O-MTFDS-24(6x1,7)LTEGP
