Multitube micro cable for external installation by air-blowing technique

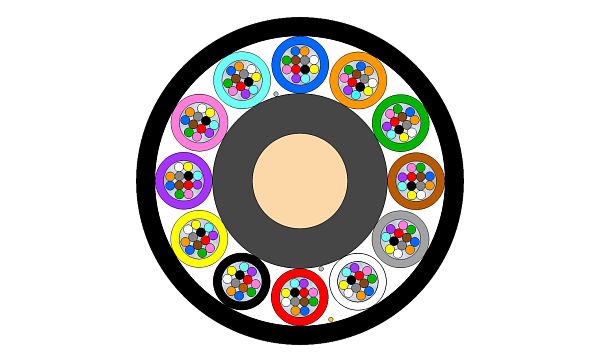

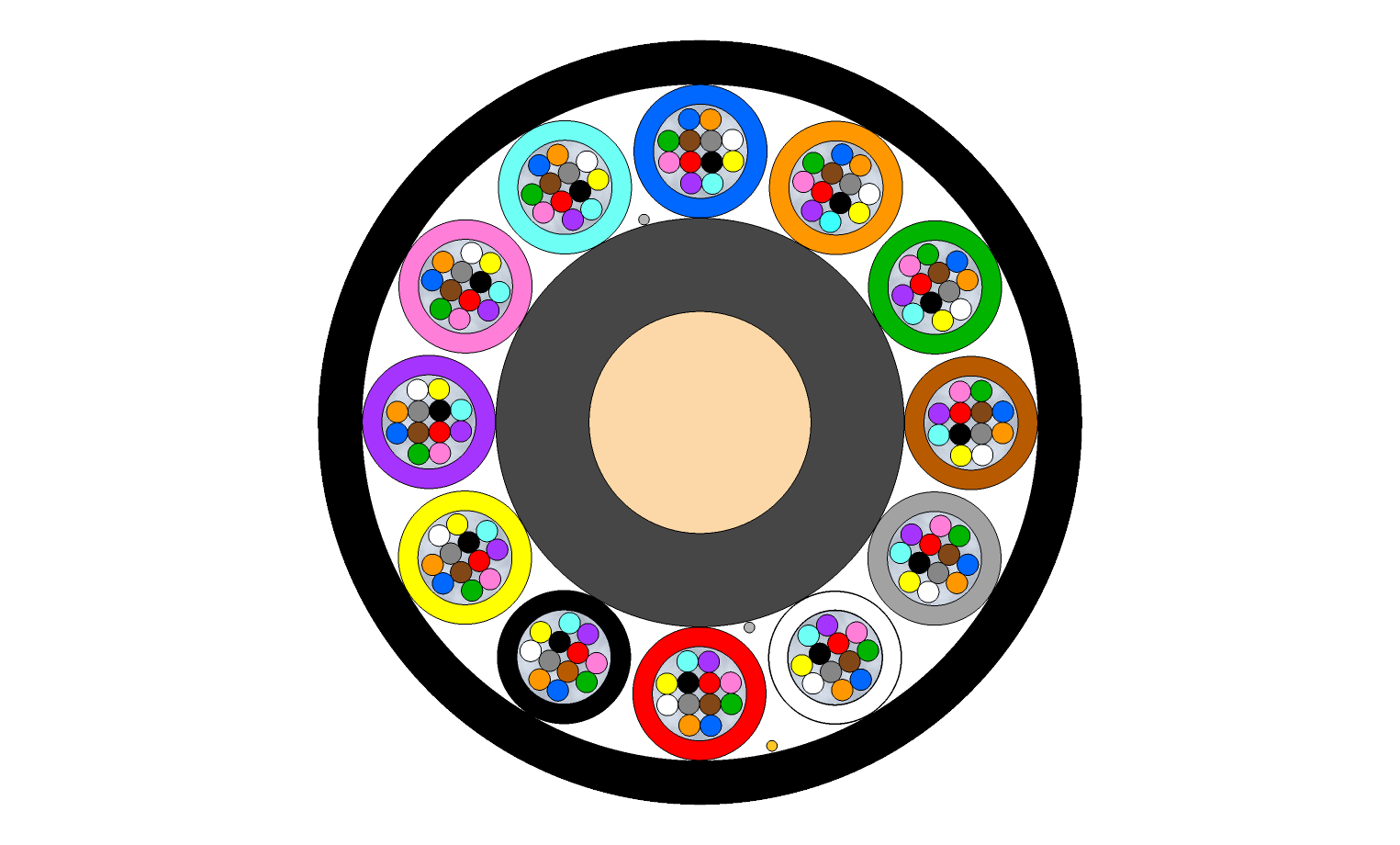

Multitube Microcable (CC)
Multitube micro cable for outdoor installation using the air-blowing technique—fast, clean deployment in microducts.
|
Fibre Type |
G.657.A1, G.657.A2, OM1, OM2, OM3, OM4 |
|
Fibre colour |
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
|
Tube colour 1-12 |
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
|
Tube colour 13 - 18 |
BlueBS, OrangeBS, GreenBS,BrownBS, GreyBS, WhiteBS |
|
Central strength member |
FRP rod (coated if necessary) |
|
Ripcord |
1x under outer jacket |
|
Outer jacket material |
UV resistant black HDPE |
|
Outer jacket thickness |
0.5 mm |
|
Number of fibres |
12 |
24 |
36 |
48 |
60 |
72 |
96 |
144 |
192 |
216 |
288 |
432 |
|
|
Number of fibres in tube |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
|
Tube count (layers) |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
12 |
5+11 |
6+12 |
9+15 |
6+12+18 |
|
|
Filler count |
4 |
3 |
2 |
1 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
Nominal outer diameter (mm) |
5.1 |
5.1 |
5.1 |
5.1 |
5.1 |
5.7 |
6.5 |
8.6 |
8.3 |
8.7 |
10.0 |
11.7 |
|
|
Calc. cable weight (kg/km) |
23 |
23 |
23 |
23 |
23 |
26 |
39 |
63 |
54 |
61 |
88 |
111 |
|
|
Short-term tensile strength (N) |
470 |
470 |
470 |
470 |
470 |
800 |
1800 |
2800 |
470 |
800 |
2900 |
800 |
IEC 60794-1-101 |
|
Long-term tensile strength (N) |
230 |
230 |
230 |
230 |
230 |
420 |
1100 |
2000 |
230 |
420 |
1800 |
420 |
IEC 60794-1-101 |
|
Crush resistance (N/100 mm) |
700 |
IEC 60794-1-103 |
|||||||||||
|
Max. impact loading (Nm) |
3 |
IEC 60794-1-104 |
|||||||||||
|
Min. bend radius not load (OD) |
10 |
IEC 60794-1-111 |
|||||||||||
|
Min. bend radius load (OD) |
20 |
IEC 60794-1-111 |
|||||||||||
|
Operating temperature range (°C) |
-30 to +70 |
IEC 60794-1-201 |
|||||||||||
|
Storage temperature range (°C) |
-40 to +70 |
IEC 60794-1-201 |
|||||||||||
|
Installation temperature range (°C) |
-15 to +50 |
IEC 60794-1-201 |
|||||||||||
|
Water tightness (1 m / 24 hrs.) |
No leakage |
IEC 60794-1-205 |
|||||||||||
|
Class of fire reaction |
Fca |
EN 50575, EN 13501-6 |
|||||||||||
|
Number of Fibers |
Cable Code (Ordering Code) |
Delivery length |
Packing |
|
12 |
OPK-O-MTFDM-12(5x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
24 |
OPK-O-MTFDM-24(5x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
36 |
OPK-O-MTFDM-36(5x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
48 |
OPK-O-MTFDM-48(5x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
60 |
OPK-O-MTFDM-60(5x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
72 |
OPK-O-MTFDM-72(6x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
96 |
OPK-O-MTFDM-96(8x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
144 |
OPK-O-MTFDM-144(12x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
192 |
OPK-O-MTFDM-192(16x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
216 |
OPK-O-MTFDM-216(18x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
288 |
OPK-O-MTFDM-288(24x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
|
432 |
OPK-O-MTFDM-432(36x1.5)LTP-xx-BK |
2100 m ± 5% , 4200 m ± 5% |
Plywood reel |
Print legend: Manufacturer - Cable type – lot number- length marking per 1 m (customer print legend available on request)
Note: Cable marking using the Hot-foil method is done in white. If overprinting is necessary, the color of the text is yellow.
0041_Outdoor Multitube Microcable 12-432F (CC)
