Fibreoptic cable with full protection against rodents for direct burial installation.

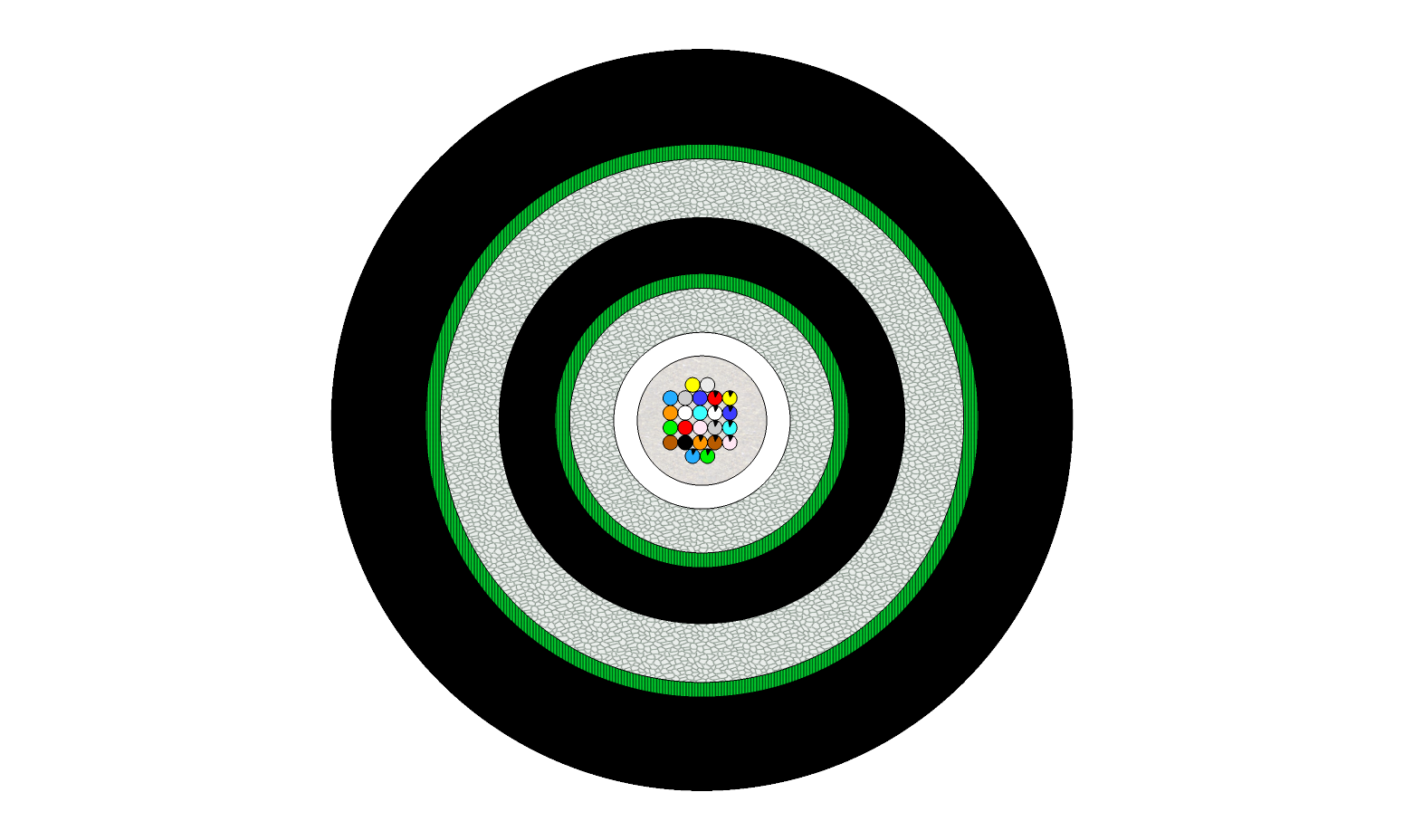

Outdoor Double CST armoured Unitube Cable (GC)
| Fiber count | Up to 24 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fiber colour | 1-12 Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| 13-24 BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS | (BS Black strip) |
| Tube | Gel-Filled PBT buffer tube |
| Tube colour | Natural / White |
| Filling compound | Low-viscosity filling gel |
| Inner peripheral strength members | Water-swellable Glass yarn |
| Inner Armouring | Corrugated steel tape, longitudinally under jacket |
| Inner jacket | UV resistant black HDPE |
| Inner jacket thickness | 0.9 mm |
| Outer peripheral strength members | Water-swellable Glass yarn |
| Outer Armouring | Corrugated steel tape, longitudinally under jacket |
| Outer jacket | UV resistant black HDPE |
| Outer jacket thickness | 1.6 mm |
| Cable outer diameter | 12.6 [mm] |
| Tube diameter | 3.0 [mm] |
| Max. Tensile Loading (Short Term) | 3000 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 700 [N] EN 60794-1-21-E1 |
| Max. Compressive loading | 5000 [N/10 cm] EN 60794-1-21-E3 |
| Max. Impact loading | 30 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | 240 [mm] EN 60794-1-21-E11 |
| Min. bend radius load | 350 [mm] EN 60794-1-21-E11 |
| Operating temperature range | -20 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -5 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Class of fire reaction | Fca EN 13501-6 |
0231_Outdoor Double CST armoured Unitube Cable (GC)
