The MMC connector is a Very Small Form Factor (VSFF) multi-fiber optical interface designed for the termination of single-mode and multimode fiber cables with outer diameters up to 2.5 mm. It includes TMT ferrule technology compatible with MT and MT-16 alignment functionality to ensure precise fiber positioning and stable optical performance. In high-density connectivity environments, individual connector access is enabled by the DirectConec™ push-pull boot mechanism, supporting efficient handling, installation, and maintenance.

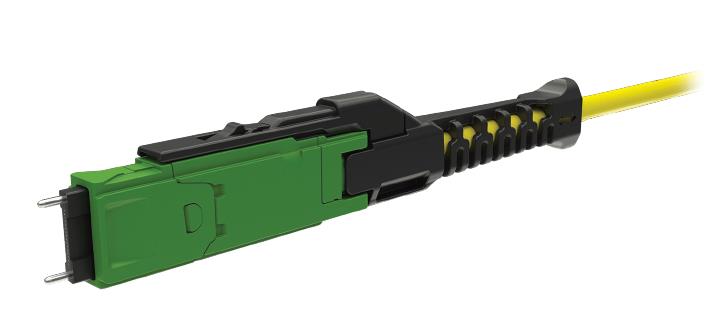

MMC Multifiber Patchcord
- 3x cabling port density over the MPO format
- DirectConec™ push-pull boot for in ODFs connection
- Proven MT and MT-16 mechanical and fiber alignment functionality
- Compatible with standard 250 micron OD and pitch optical fibers
- Low Insertion Loss,
- APC for both SM and MM applications
- Tested to Telcordia GR-1435
- Cables up to 2.5 mm OD
| Specifications: | Single mode, 8/16 fibers, low loss |
| Typical Insertion Loss (dB) | 0.25 dB (97%) |
| Typical Return Loss (dB) | ≥ 60 |
| Operating Temperature (°C) | – 40 to +75 |
| Durability | SM < 0.3 dB typical change, 50 matings |
- Transceivers
- On-board Optics
- Module Applications
CON_02-22_EN-MMC patchcord
