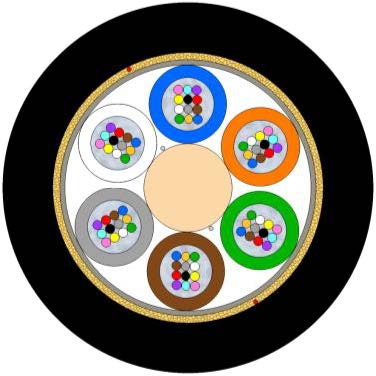

ADSS Multitube Cable 12-144F (SC)

All dielectric self-supporting (ADSS) cable for overhead installations

Fibre Type	G.652.D, G.657.A1, G.657.A2, OM1, OM2
Fibre colour	EIA/TIA-598A
Loose Tube	Gel-Filled PBT buffer tube
Tube colour	EIA/TIA-598A
Central strength member	FRP rod (PE coated if necessary)
Core wrapping	Water-swellable tape
Peripheral strength members	Water-swellable Aramid yarn
Ripcord	2x under outer jacket
Outer jacket material	UV resistant Black HDPE

Number of fibres	12	24	48	72	96	144
Number of fibres in tube	12	12	12	12	12	12
Tube count (layers)	1	2	4	6	8	12
Filler count	5	4	2	0	0	0
Nominal outer diameter (mm)	9.8	9.8	9.8	9.8	11.3	13.7
Outer jacket thickness (mm)				1.5
Calc. cable weight (kg/km)	69	70	71	72	100	135
Temperature coefficient (ppm/k)	25.3	25.3	25.3	25.3	19.0	14.3
Modulus (GPa)	5.95	5.95	5.95	5.95	8.89	13.81
Short-term tensile strength (N)				2400			IEC 60794-1-101
Short-term crush resistance (N/100 mm)				2000			IEC 60794-1-103
Long-term crush resistance (N/100 mm)				600			IEC 60794-1-103
Max. impact loading (Nm)				5			IEC 60794-1-104
Min. bend radius not load (OD)(mm)				10			IEC 60794-1-111
Min. bend radius load (OD)(mm)				10			IEC 60794-1-111
Operating temperature range (°C)				-40 to +70			IEC 60794-1-201
Storage temperature range (°C)				-40 to +70			IEC 60794-1-201
Installation temperature range (°C)				-15 to +50			IEC 60794-1-201
Water tightness (1 m / 24 hrs.)				No leakage			IEC 60794-1-205
Class of fire reaction				Fca			EN 50575, EN 13501-6
