The cable is suitable for aerial use, due to its high crush resistance is also suitable for direct burial installation into sand bed.
.jpeg "Flat Aerial Cable 24F (NC)")

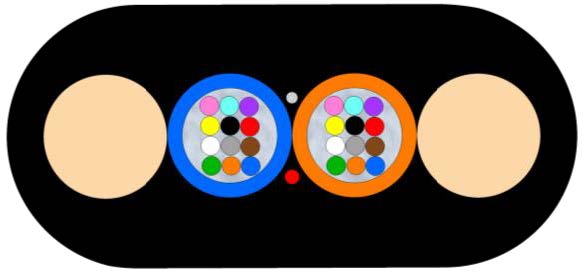

Flat Aerial Cable 24F (NC)
| Fibre Type | G.657.A1, G.657.A2 |
| Fibre colour | EIA/TIA-598A |
| Tube colour | EIA/TIA-598A |
| Strength members | FRP rod |
| Ripcord | 1x under outer jacket |
| Outer jacket material | UV resistant black HDPE |
| Number of fibres | 24 | |
| Number of fibres in tube | 12 | |
| Tube count (layers) | 2 | |
| Nominal outer diameter (mm) | 7.8 x 3.6 | |
| Calc. cable weight (kg/km) | 31 | |
| Maximum allowable tension (N) | 1300 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 2000 | IEC 60794-1-103 |
| Long-term crush resistance (N/100 mm) | 600 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 5 | IEC 60794-1-104 |
| Min. bend radius not load (OD) | 15 | IEC 60794-1-111 |
| Min. bend radius load (OD) | 20 | IEC 60794-1-111 |
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 |
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
| Recommended clamps | Type ODWAC (Manufacturer Telenco) | |
