Tight-buffered distribution cable suitable for direct burial installation with full protection against rodents
CST Armoured Distribution Cable
| Fibre Type | G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fibre colour | Natural |
| Buffer diameter | 0.9 mm |
| Buffer material | Halogen-free flame-retardant thermoplastic compound |
| Buffer colour | EIA/TIA-598A |
| Strength members | Water-swellable glass yarn |
| Ripcord | 1x under inner jacket |
| Inner jacket material | Halogen-free flame-retardant thermoplastic compound |
| Armouring | Corrugated steel tape, longitudinally under jacket |
| Outer jacket material | UV resistant black HDPE |
| Number of fibres | 4 | 6 | 8 | 12 | 24 | |
| Inner diameter (mm) | 6.1 | 6.5 | 7.2 | 7.8 | 9.4 | |
| Inner jacket thickness (mm) | 1.1 | |||||
| Nominal outer diameter (mm) | 10.4 | 11.4 | 11.4 | 12.4 | 13.9 | |
| Outer jacket thickness (mm) | 1.5 | |||||
| Calc. cable weight (kg/km) | 119 | 127 | 142 | 157 | 199 | |
| Short-term tensile strength (N) | 600 | 600 | 700 | 900 | 1000 | IEC 60794-1-101 |
| Long-term tensile strength (N) | 240 | 240 | 280 | 360 | 400 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 3000 | IEC 60794-1-103 | ||||
| Long-term crush resistance (N/100 mm) | 900 | IEC 60794-1-103 | ||||
| Max. impact loading (Nm) | 25 | IEC 60794-1-104 | ||||
| Min. bend radius not load (OD) | 15 | IEC 60794-1-111 | ||||
| Min. bend radius load (OD) | 20 | IEC 60794-1-111 | ||||
| Operating temperature range (°C) | -20 to +70 | IEC 60794-1-201 | ||||
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 | ||||
| Installation temperature range (°C) | -5 to +50 | IEC 60794-1-201 | ||||
| Water tightness (1 m / 24 hrs.) | No leakage (without armouring ) | IEC 60794-1-205 | ||||
| Class of fire reaction | Fca | EN 50575, EN 13501-6 | ||||

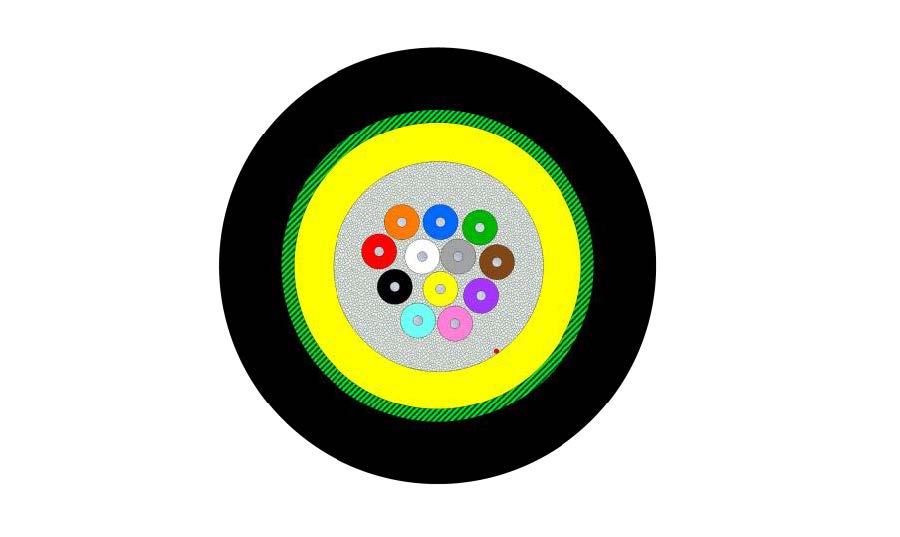

0367_CST Armoured Distribution Cable
