8x 1G WAN
16x LAN 10/100/1000Base-T, with 8x PoE

IMS-1608 is a rugged industrial managed Ethernet switch designed for reliable operation in harsh environments. It provides secure data, voice and video communication for industrial networks and supports advanced Layer 2 management, redundancy, security and PoE functionality.
The switch is suitable for industrial automation, transportation systems, surveillance networks and critical infrastructure applications. It can be mounted on a DIN rail or installed in a 19" rack.

  • Features
  • Specifications
  • Application
  • Documents
  • Industry design resistant to harsh environmental conditions and rough handling
  • 1G uplinks, 1G downlinks
  • WAN – 8x ports, SFP slots
  • LAN – 16x 10Base-T/100Base-TX/1000Base-T
  • Provides 8-port IEEE 802.3af / 802.3at PoE+ output (30 W per port, total 240 W)
  • Cable diagnostics, identifies opens/shorts distance
  • Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
  • Supports up to 5 rings in one device

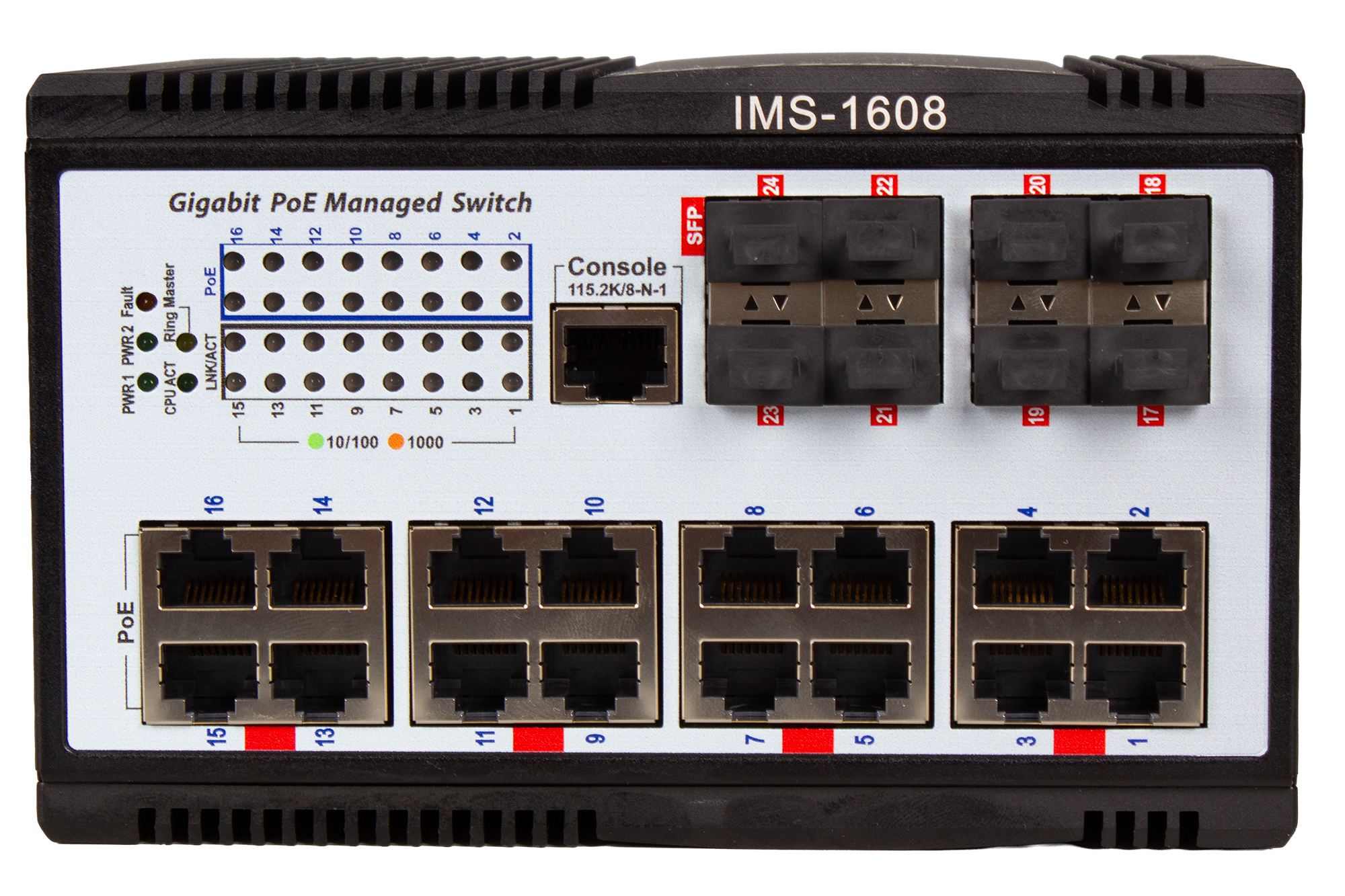

Network Interfaces
  • 24 ports total:
    • 16× 10/100/1000Base-T RJ-45 ports
    • 8× 100/1000Base-X SFP uplink ports
  • Auto-negotiation
  • Auto MDI/MDI-X support
  • Console management via RS-232
Power over Ethernet (PoE)
  • 8 × IEEE 802.3af/at PoE+ ports
  • Up to 30 W per port
  • Total PoE budget: 240 W
  • Automatic PoE device monitoring
Network Reliability
  • STP, RSTP and MSTP
  • ERPS (G.8032), EPS (G.8031)
  • Multiple μ-Ring topologies
  • Recovery times:
    • μ-Ring: <10 ms
    • ERPS: <50 ms
  • Up to 250 devices in a ring
Quality of Service (QoS):
  • 8 priority queues per port
  • DSCP, CoS and IP precedence classification
  • Bandwidth limiting and traffic shaping
  • Storm control
Management and Monitoring
  • Web GUI
  • Cisco-style CLI
  • Telnet / SSH
  • SNMP v1/v2c/v3
IPv6 Support
  • SNMP, HTTP and SSH over IPv6
  • IPv6 QoS
  • IPv6 ACL
  • IPv6 TFTP
  • IPv6 NTP/SNTP
Environmental and Compliance
  • Mechanical
  • Dimensions: 116 × 92 × 160 mm
  • Weight: 1.375 kg
  • DIN rail or wall mounting
  • Reliability: MTBF=439,881 hours
Industrial Design
  • Fanless metal housing (IP30)

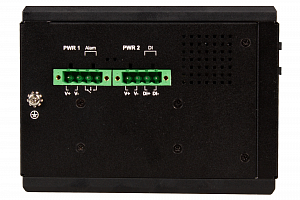

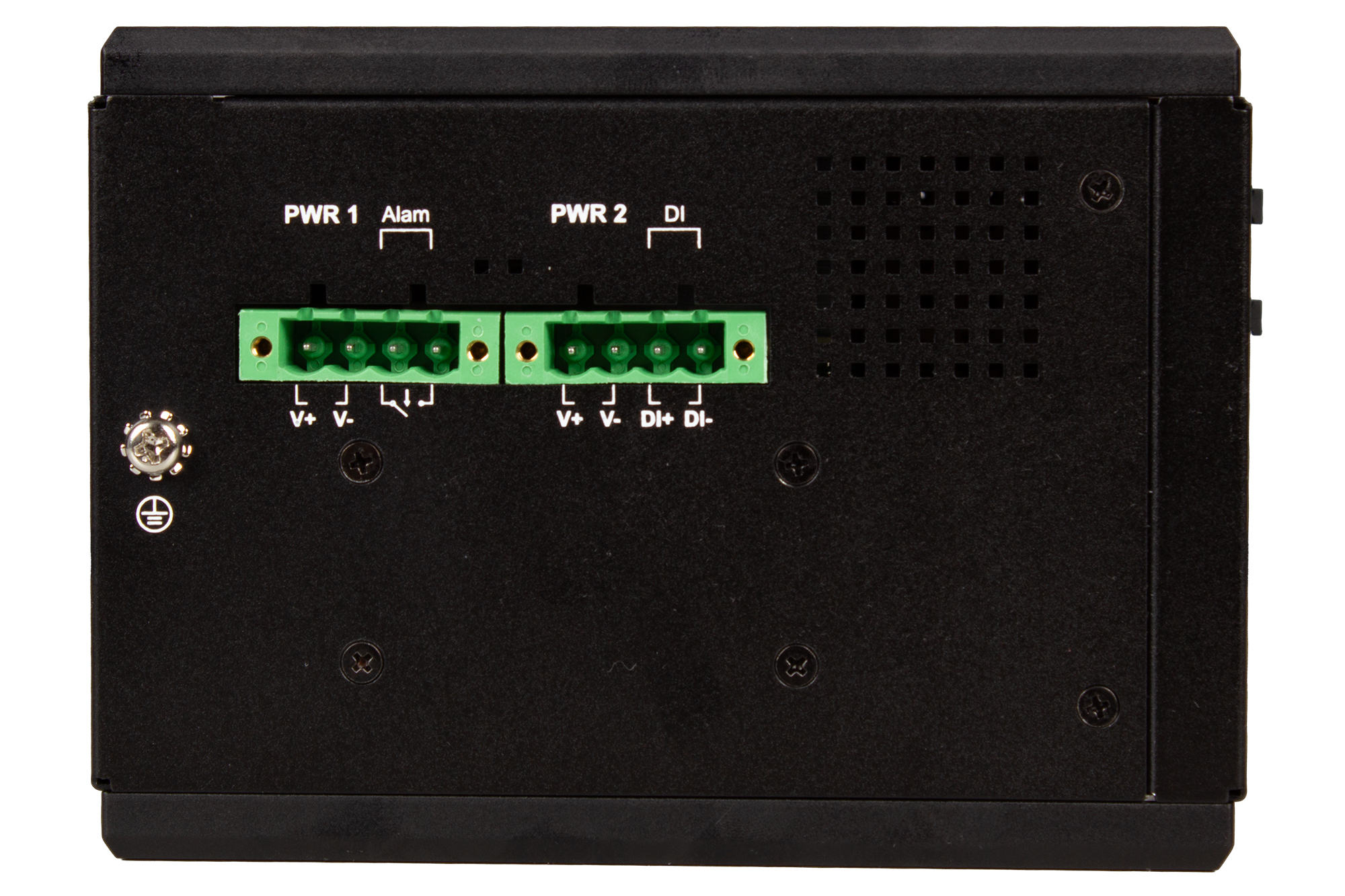

  • Redundant dual DC power (44–57 V DC)
  • Reverse polarity and overload protection
  • Wide operating temperature:
    • Standard version: -10 °C to +60 °C
    • Extended version: -40 °C to +75 °C
Performance
  • Switching capacity: 48 Gbps
  • Store-and-forward architecture
  • Jumbo frames up to 9.6 KB
  • MAC address table: 8K entries
  • Memory: 16 MB Flash, 128 MB RAM
Security
  • IEEE 802.1X authentication
  • RADIUS and TACACS+
  • Access Control Lists (ACL)
  • HTTPS, SSL and SSH v2
  • Management access filtering
  • Local and remote user authentication
VLAN and Traffic Management
  • IEEE 802.1Q VLAN
  • Q-in-Q VLAN
  • MAC-, IP subnet- and protocol-based VLANs
  • VLAN translation
  • Voice VLAN support
  • Link aggregation (static and LACP)
Monitoring and diagnostics:
  • Syslog
  • Port mirroring
  • LLDP / LLDP-MED
  • Cable diagnostics
  • Alarm relay
  • Email event notifications
  • IEEE 1588 PTP v2
  • NTP/SNTP time synchronization
Certifications
  • CE, FCC Class A
  • EN 62368-1, EN 50121-4 (Railway)
  • EN 61000-6-2 / EN 61000-6-4
Protection
  • 4 kV surge protection
  • ESD, burst and surge immunity
  • Shock, vibration and freefall resistance



  • Industrial Automation
  • Transportation Systems
  • Surveillance Networks
  • Critical Infrastructure Applications
