The MT-RJ connectors are designed to bring together the latest advances in precision molding and multi-fiber ferrule technology, providing the end user with an optical interface that is easier and more cost effective to install. At half the size of comparable duplex SC connectors, yet using the same space in patch panels and networking equipment as RJ-45 copper connectors, the MT-RJ connector doubles the capacity of existing networking infrastructures.

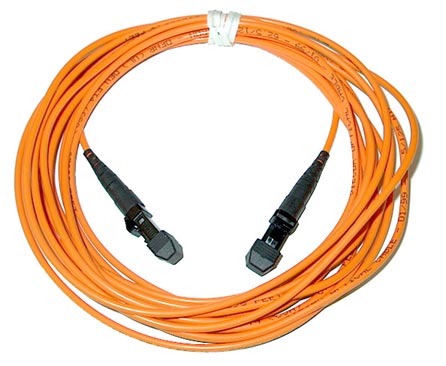

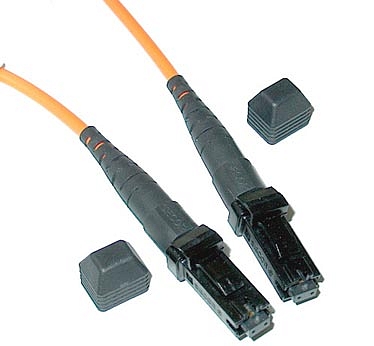

MT-RJ Patchcord
- MT-RJ connector is half the size of duplex SC and ST-Style connectors
- Installable in conventional RJ-45 faceplaces
- Multimode and single mode versions for existing and future network applications
- Easy termination - no epoxy or polishing
- Jack can be reterminated
- Intuitive RJ-45 type latching mechanism
- Plug and Jack design
- Developed by a consortium of leading electronics and connector companies, including Hewlet Packard, AMP, Siecor, Fujikura and US Conec
| Insertion loss (IL) | Single mode: typ. 0.20 dB, max. 0.5 dB Multimode: typ. 0.40 dB, max. 0.75 dB |
| Return loss (RL) | Single mode: ≥35 dB for jumpers up to 3 m Multimode: ≥26 dB for jumpers up to 3 m |
| Strain relief | 66 N |
| Operating temperature | -25 °C to +70 °C |
| Durability | min 500 cycles |
| Assembly procedure | glue and polish |
| Connection | physical contact |
| Lock mechanism | snap-on |
| Standards | ANSI/TIA/EIA-568-B, ISO/IEC 11801 and EN 50173 |
| Ferrule material | Thermo polymer |
| Connector material | thermoplastic (reinforced, flame retardant) |
- LAN, WAN
- “Fiber to the desk“
CON_04-01_EN-MT-RJ_Patchcord
