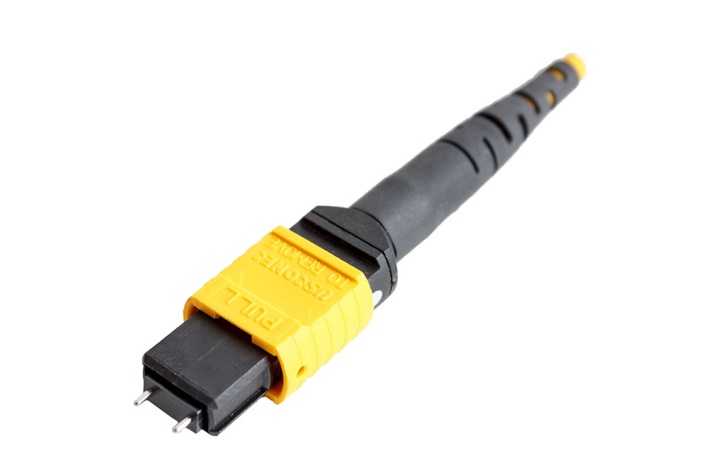

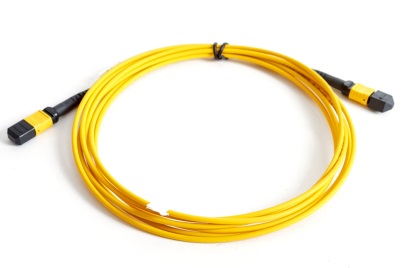

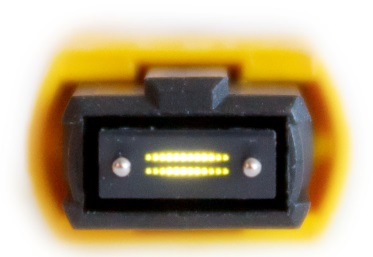

The MTP patchcord provides quick connection specifically for multifiber cable, up to 24 fibers. The MTP connectors are designed for termination of ribbon fiber or loose individual fibers. Connection integrity is provided by the spring action side latch housing and alignment is achieved with high precision guide pins. The housing are colored-coded to differentiate single mode and multimode. Removable housing allow for quick change of pin clamps, ferrule cleaning or connector repolishing. Available MTP trunk cables or fan-out from MTP to single fibers connectors: LC, SC, etc.
MTP Patchcord
- Multifiber cables termination
- Parallel optics transmission systems
- Single mode and Multimode applications
- Available angled and flat ferrule style
- Up to 24 fibers termination
- Push-on / Pull-off latching connector
- Easy connection and disconnection

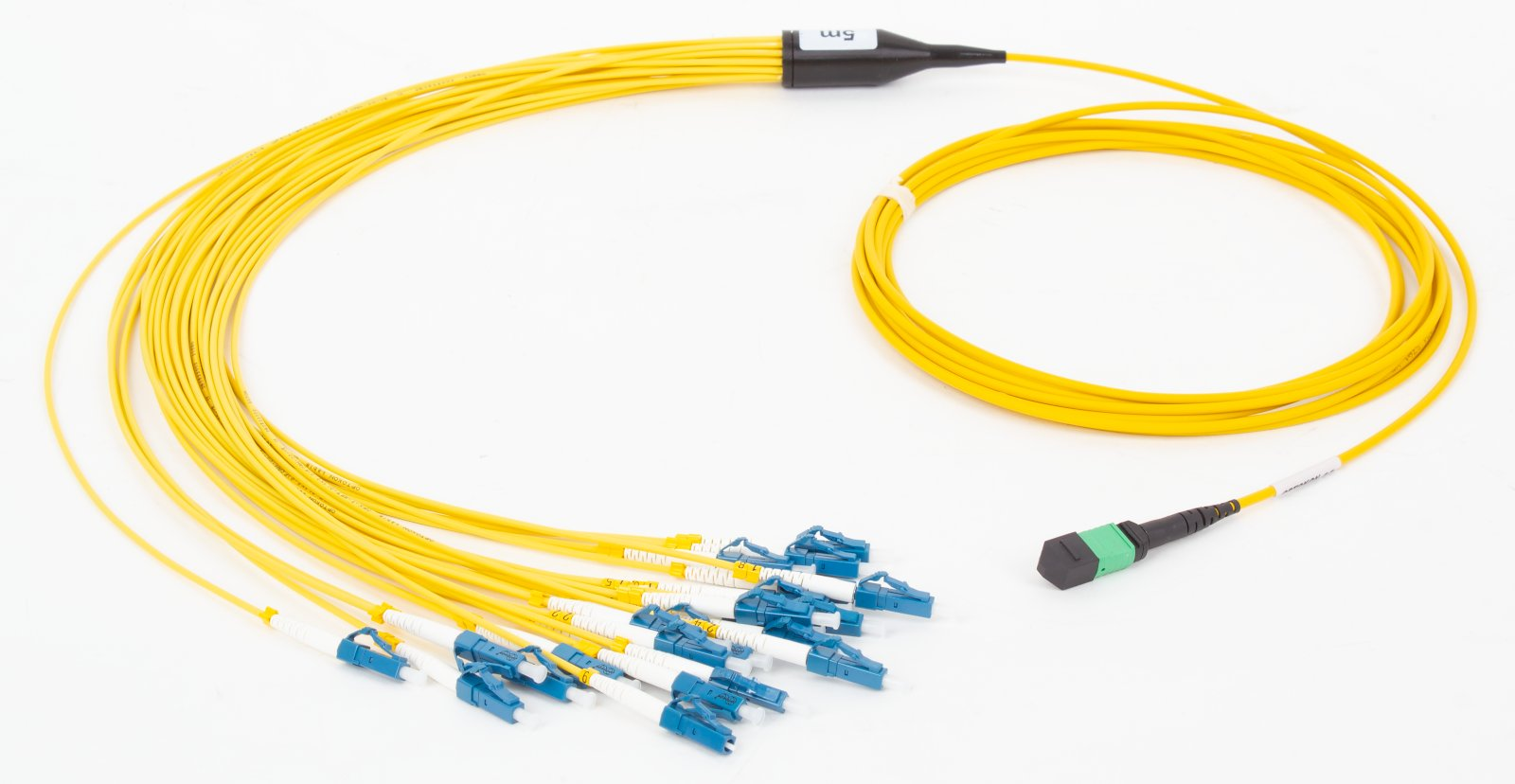

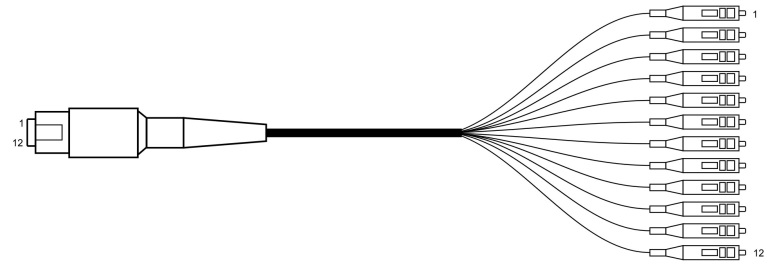

- Trunk cable or fan-out to single fiber connectors
- Fiber protrusion
- Low Insertion loss & Reflection
- Simple & Low cost
- IEC61754-7, TIA/EIA 604-5
| Single mode (angled 8°) | Multimode (flat) | ||
| Insertion Loss (dB) | Standard | 0.25 typ, 0.75 max | 0.20 typ, 0.60 max |
| Premium | 0.10 typ, 0.35 max | 0.10 typ, 0.35 max | |
| Optical Return Loss (dB) | > 60 | > 20 | |
| Operating Temperature1 (°C) | -10 to +60 | ||
| Durability | < 0.3 dB change (per EIA-455-21A)500 remates | < 0.2 dB change (per EIA-455-21A)1000 remates |
Note: 1) relative to controlled environment, uncontrolled environment -40 to +80 °C on request
- Patchcords: Bare fiber ribbon type, ruggedized cable type or loose individual fibers cable

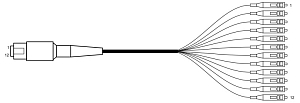

- Fan-out cord with single fiber connectors
- Parallel Optics transmission:
- 40G and 100G IEEE 802.3
- Optical Internetworking Forum (OIF) Compliant
- QSFP, CXP, CFP, PSM4 standards
CON_04-14_EN-MTP patchcord
