The D4 connector type patchcords are offered for SM applications with UPC – ultra PC polishing method. Two boot dimensions allow to use both cable or fiber diameters.

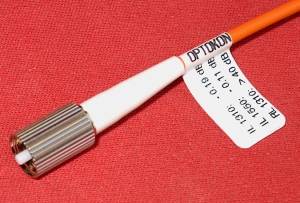

D4 Patchcord
- Singlemode application use
- Terminates up to 3.0 mm diameter cable jacket
- Ceramic ferrules are configured for easy hand or machine „Ultra" Polishing
- Optional boot colors available
- Protective dust cap included
- Hybrid patchcord version available
| Insertion loss (IL) | typ.: 0.25 dB |
| Return loss (RL) | > 50 dB |
| Strain relief | 100 N |
| Operating temperature | -40 °C to +80 °C, conditioned by cable type |
| Durability | min 500 cycles |
| Assembly procedure | glue and polish |
| Connection | physical contact |
| Lock mechanism | Coupling nut |
| Standards | UL 94 V-0 rated material |
| Ferrule material | full ceramic zirconia |
| Connector material | nickel plated brass, thermoplastic rubber |
- LAN, WAN
- Measuring Technique
- Utilities
- Railways
CON_01-04_EN-D4_Patchcord_SM
