SFT-P series 1xN Planar Optical Splitter

SFT-P series 1xN Planar Optical Splitter

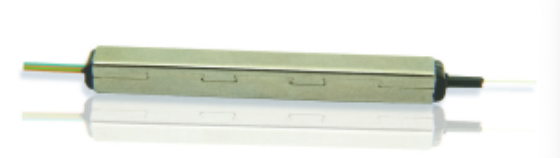

The SFT-P 1xN Planar Lightwave Circuits (PLC) Optical Splitters are high performance, reliable and compact devices for splitting optical power, specifically designed to meet the tough requirements of FTTH, PON and CATV networks. Based on unique waveguide technology of Ion-Exchange in glass, such splitters exhibit very low insertion loss and PDL, great channel uniformity and a wide wavelength operative range.
The SFT-P 1xN PLC Optical Splitters are available in 1x4, 1x8, 1x16, 1x32, 1x64 and custom configurations, and comply with Telcordia GR-1209, GR-1221, IEC 67153-031-3/-6 and IEC 60304 requirements. Various packaging types, input and output fibers are available according to the customer demand.

  • Features
  • Specifications
  • Application
  • Documents
  • Very low insertion loss
  • Ultra wide bandwidth (1250-1650 nm)
  • Polarization independent
  • Excellent channel uniformity
  • Compact size
  • Wide range of packaging
Configuration 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
Maximum Insertion Loss¹ (dB) 3.8 7.0 10.3 13.5 16.7 20.3
Uniformity (dB) ≤ 0.6 ≤ 0.6 ≤ 0.8 ≤ 1.1 ≤ 1.5 ≤ 1.8
Operating Wavelength (nm) 1260-1650
Maximum PDL (dB) ≤ 0.2 ≤ 0.3
Return Loss (dB) ≥ 55
Directivity (dB) ≥ 55
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Relative humidity up to 95%
Fiber Type G.657A
Dimensions (mm) BFS, BFF 40x4x4 50x7x4 60x12x4
Dimensions (mm) PON 40x4x4 60x7x4 60x12x4 80x20x6 100x40x6
Fiber Type: BFS type IN: Bare Fiber 250 μm / OUT: Bare Ribbon
PON type IN: Tight Buffer 900 μm / OUT: Tight Buffer 900 μm
Fiber length² (m) 1.5±0.2 m
Standards IEC 67153-031-3/-6, IEC 60304
Telcordia GR-1209-CORE & Telcordia GR-1221-CORE, UL94-V0, RoHS compliant

Note: 1) Without connectors, room temperature
          2) Other length on demand



  • Passive Optical Networks (PON)
  • Network expansion
  • CATV networks
  • OADM and ROADM
