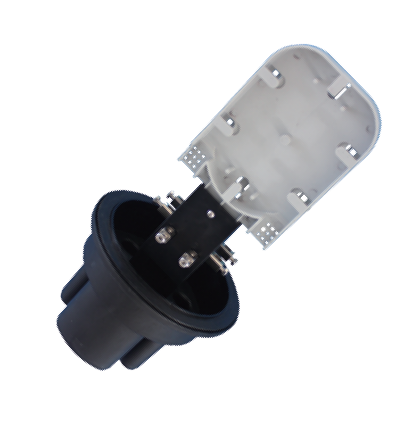

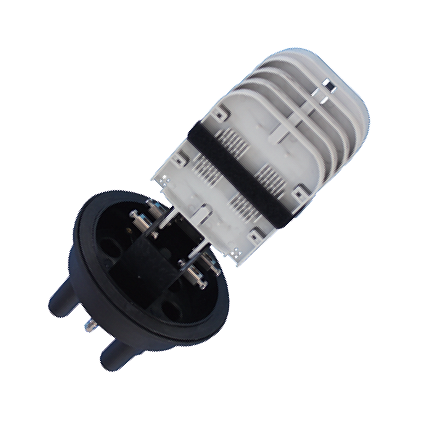

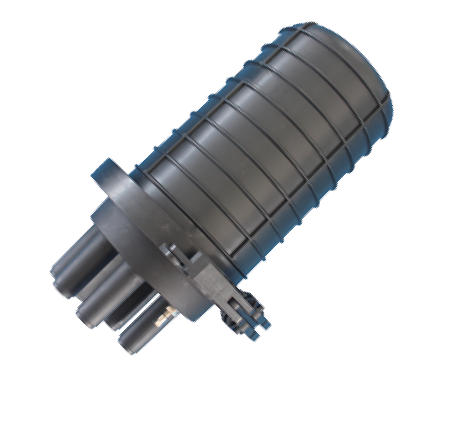

KSDT-218 Fiber Optic Splice Closure (Heat shrink sealing)
- May be used for cut, uncut and taut sheath applications
- May be used for all fiber optic cable
- Sheath retention & central strength member termination system included
- Ribbed closure construction and lightweight plastic provided strength and resistance to chemical and UV attack
- Installation and reentry with a minimum of tools, heat shrink sealing way
- All hardware are included
- Operating temperature: -40 to +65 °C
- Protection class IP68, RoHS compliance
|
Model No |
Splice Tray |
Spliced fiber storage capacity (single fusion) |
Size (mm) Height x diameter |
Cable ports |
Max. diameter of cable (mm) |
|
KSDT-218 |
Capacity: |
96 splices |
345 mm |
1 oval port |
1 oval port for 1 looped cable with max dia 22 mm). |
- Underground, Aerial, Vault, Pole Mounting and Wall Mounting
FOC_07-21_EN-KSDT-218
