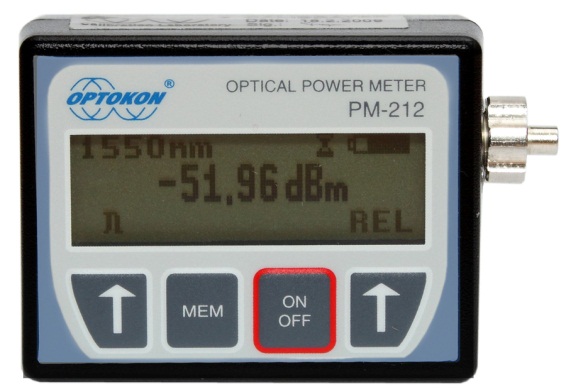

The PM-212-CWDM optical power meter is a small, pocket size low cost item. The small size does not prevent the optical meter fulfilling all technical requirements for field equipment. The tester can be used as pocket power meter or as USB probe, part of testing workstation. The unit can be easily carried in the pocket or on the belt. It allows simultaneous measurement of full CWDM band with 2 extra wavelengths for MM applications (850 and 1300 nm) and 1625 nm for SM. The Li-Pol rechargeable battery ensures long term working time with a minimum life time of 2 years. The unit is able to store 100 measurements which can be uploaded to PC and managed with SmartProtocol software or Data Exporter.
PM-212-CWDM Pocket optical power meter USB probe
- Two functions:
Portable power meter
USB probe – accesssory of Testing Workplace - 18 channels CWDM + 850, 1300 and 1625 nm
- Small size, light weight
- Absolute and Relative optical power measurement
- Internal two level memory structure
- Capacity up to 100 measurements
- SmartProtocol SW – test reports creating
- Data Exporter – data download to Excel sheet
- USB port for:
USB probe - full control via simple commands charging the battery
data upload to PC
firmware upgrade - Build-in Li-Pol rechargeable battery pack
- Auto Off
- Battery status indicator
|
Photo detector |
1 mm InGaAs |
|
|
Working wavelengths |
CWDM band (18 CH, 1270 nm – 1610 nm) + 850, 1300 and 1625 nm |
|
|
Uncertainty |
± 5% |
|
|
Resolution |
0.01 |
|
|
Dynamic range |
-60 dBm to +10 dBm -53 dBm to +10 dBm |
CWDM band; 1300 nm; 1625 nm 850 nm |
|
Dimensions |
24 x 47 x 71 mm |
including 2.5 mm universal adapter |
|
Weight |
Less than 90 g |
battery loaded |
|
Temperature operating storage Humidity (non cond.) |
-10 to +50 °C -40 to +70 °C 0 – 95% |
|
|
Operating temperature |
-10 to +50 °C |
|
|
Battery working time |
> 35 hrs |
between battery charging |
|
Battery life time |
> 2 years |
|
Compliant with RoHS-requirements (2002/95/EG, 27.01.2003)
- Optical components testing
- Optical networks measurement
- Test reports creating
