MOTB-X12 is designed for the FTTH application and widely used in Telecommunication networks, CATV Networks, Data communications networks and Local area networks. MOTB-X12 is suitable for wall-mounting and pole-mounting.

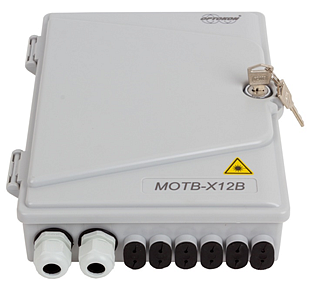

MOTB-X12 Termination Box
- Up to 12 drop cables
- Up to 12 simplex SC adapters
- Can accommodate 1:4, 1:8 PLC splitter
- Maximum capacity is 12F
- 2 main ports is for 1 loop cable or 2 cables with max Ø 12 mm
- The reserved port is for cables with max Ø 12 mm
- The 12 small ports, each port can hold 1 drop cable
- Bending radius > 30mm
- Indoor use (IP54)
- Designed for Wall and Pole mount applications
- Safety lock
- Rugged and durable construction for long term reliability (UV resistance)
- Design for small and medium volumes of fiber optic cables
- Reusable
- ROHS compliance
Basic technical specifications
IP Protection IP54
Spliced fiber storage capacity 12F
PLC splitter 1x4, 1x8
Adaptor capacity 12x SC, 12x LC duplex adaptor
Drop cable 12 drop cables with Ø 3 mm or 3 x 2 mm
Dimensions 258 x 207 x 64 (L x W x H) mm
|
Model No |
Cable Port |
Adaptors capacity |
Can be used for uncut cable (loop cable) |
|
MOTB-X12A |
2 rubber ports, each port for 1 cable with max Ø 12 mm. 1 reserved port for 1 cable with max Ø 12 mm. |
12 SC, 12 LC duplex adaptors |
Yes |
|
MOTB-X12B |
2 cable gland, each port for 1cable with max Ø 12 mm. 1 reserved port for 1 cable with max Ø 12 mm. |
12 SC, 12 LC duplex adaptors |
No |
- Telecommunication networks
- CATV Networks
- Data communications networks
- Local area networks
CMS_04-19_EN-MOTB-X12
