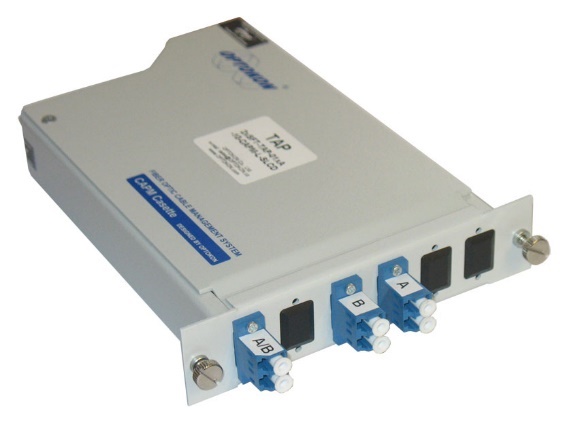

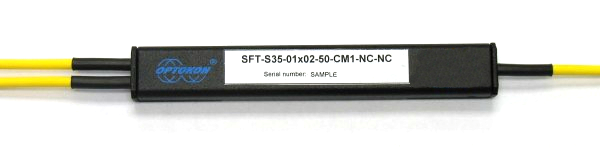

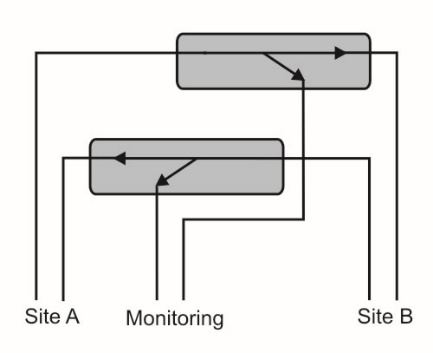

The OPTOKON SFT-TAP splitter is designed for optical network monitoring during operation. According to the operatotor request it allows bi-directional or uni-directional monitoring of optical fiber in full CWDM wavelength range. The splitting ratio of TAP port can be customized in 1% – 50% rate. Wide range of the packaging types allows easy implementation into optical network which would be monitored. The SFT-TAP splitter can be installed directly into the system of optical distribution frames or delivered separately in boxes according to the operator demand.
SFT-TAP Test Access Point splitter
- Passive access to fiber optic network
- Protocol and transmission speed independent
- High port isolation
- Custom defined specifications
- Environmentally stable
- Wavelength independent - full CWDM spectrum

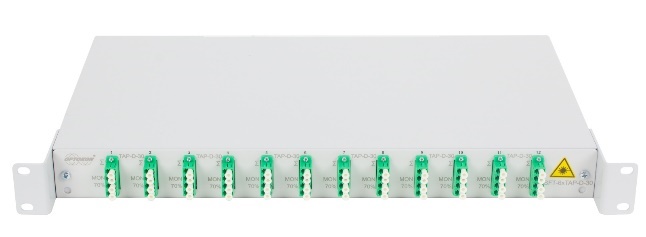

- Up to 12 TAP modules (6x Duplex) in 1U rack mount configuration
| ITEM | Test Access Point splitter |
| Operating Wavelength, nm | 1270 – 1630 (except 1350 – 1410) |
| Port Configuration | 2 x 2 or 2 x 1 |
| Coupling Ratio | 1:99 to 10:90, (on request other) |
| Insertion Loss¹), dB | Refer to the coupling ratio vs. Insertion loss chart |
| Directivity, dB | > 50 |
| Return Loss, dB | > 50 |
| Operating Temperature²), °C | -10 to +70 |
| Storage Temperature²), °C | -40 to +85 |
| Fiber type | G.652.D |
Note: 1) Without connectors
2) Conditioned by the cable type
- Optical Network Monitoring During Operation
CPL_02-07_EN-SFT-TAP
