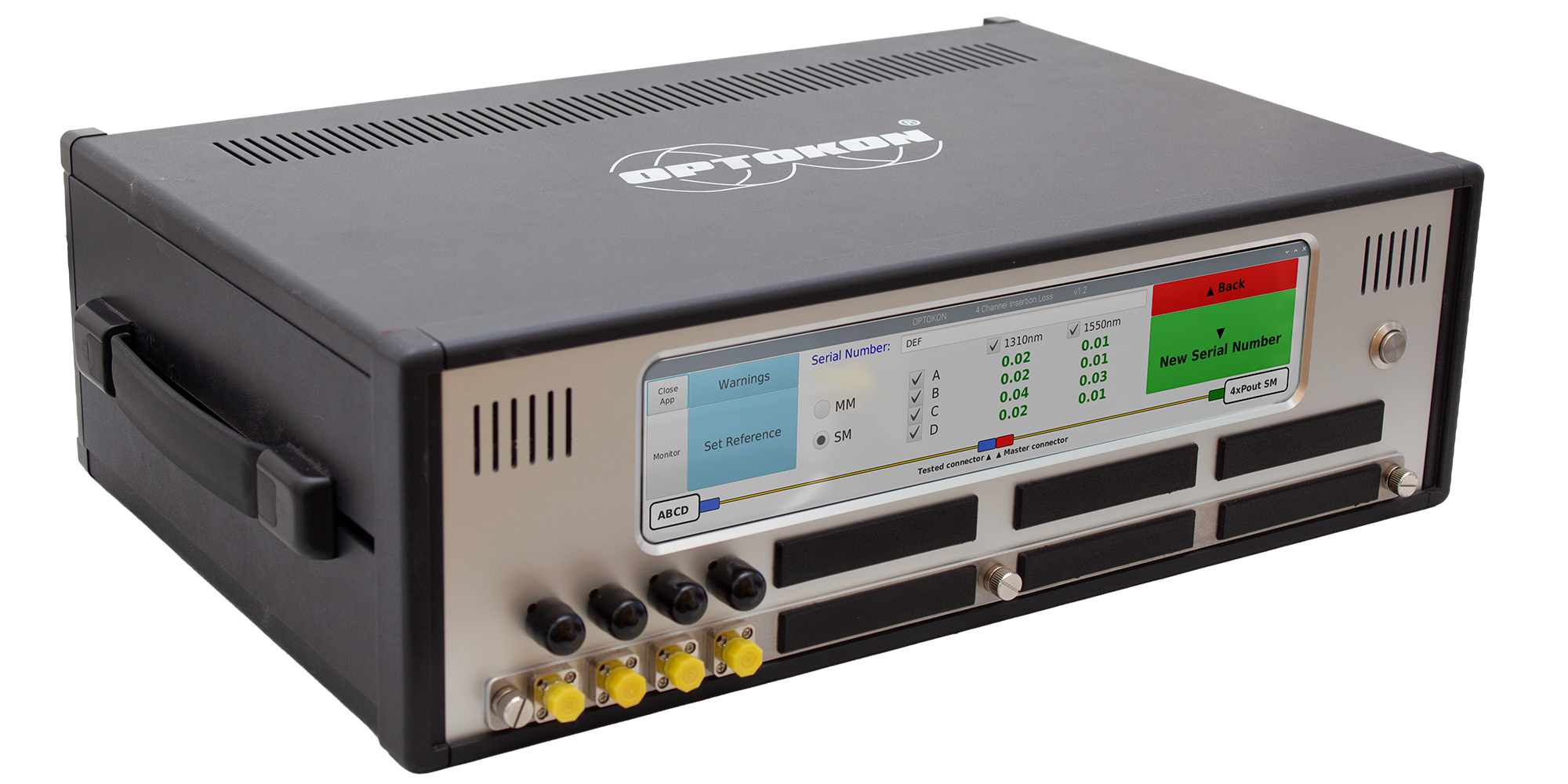

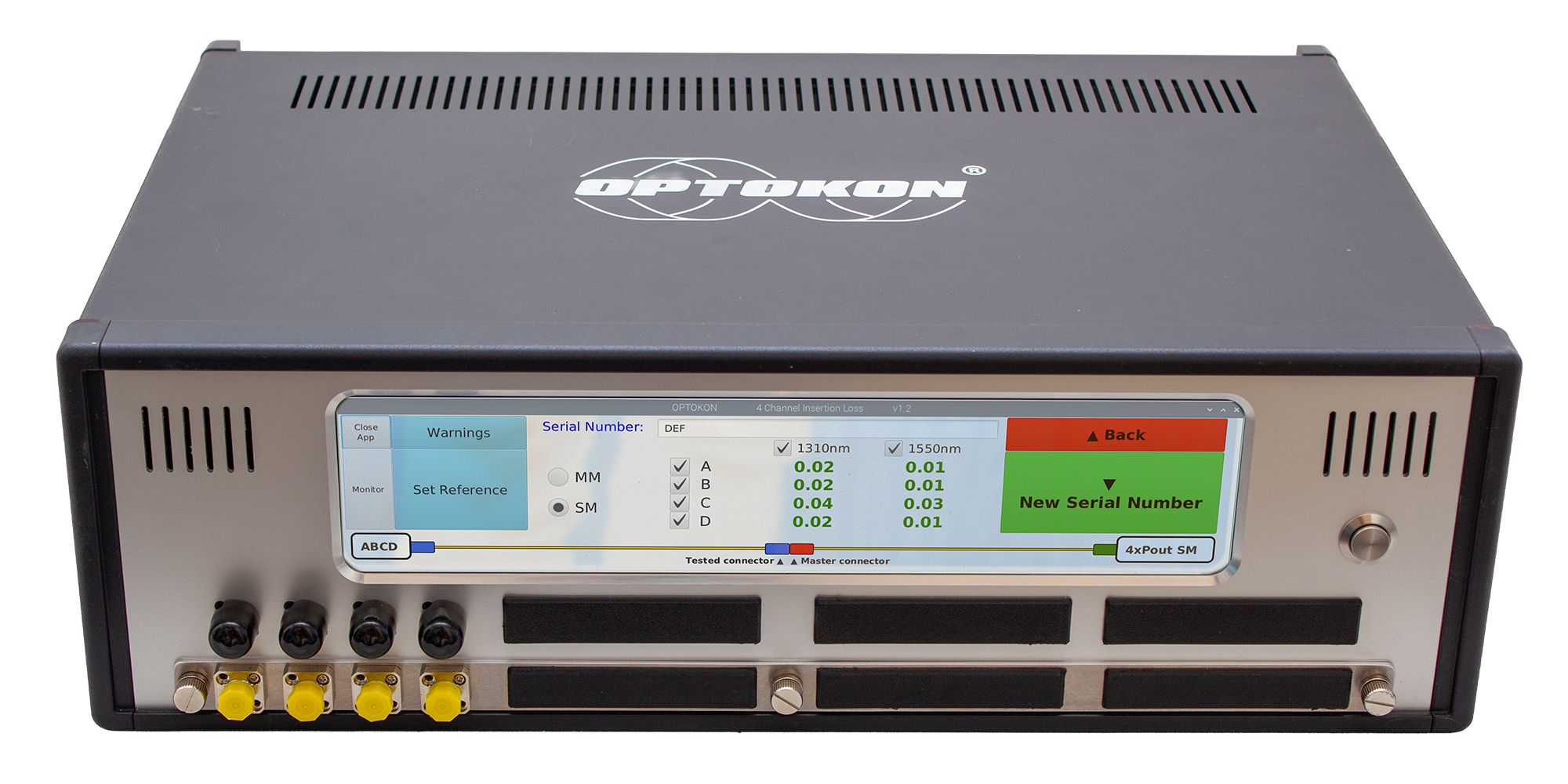

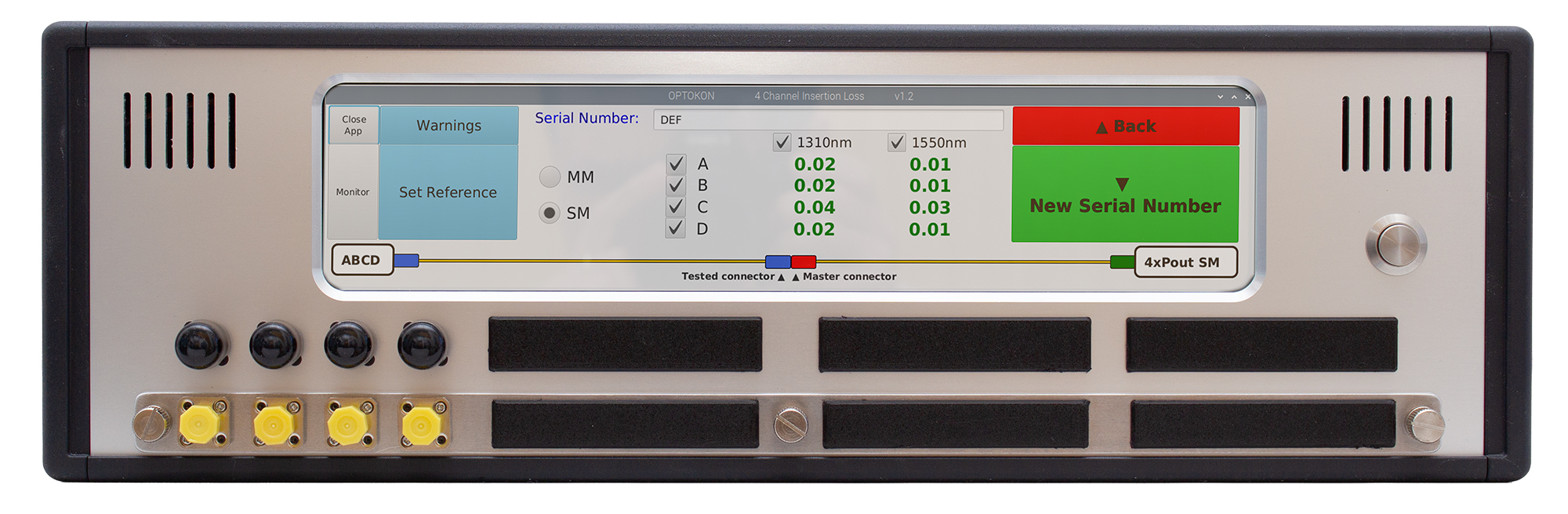

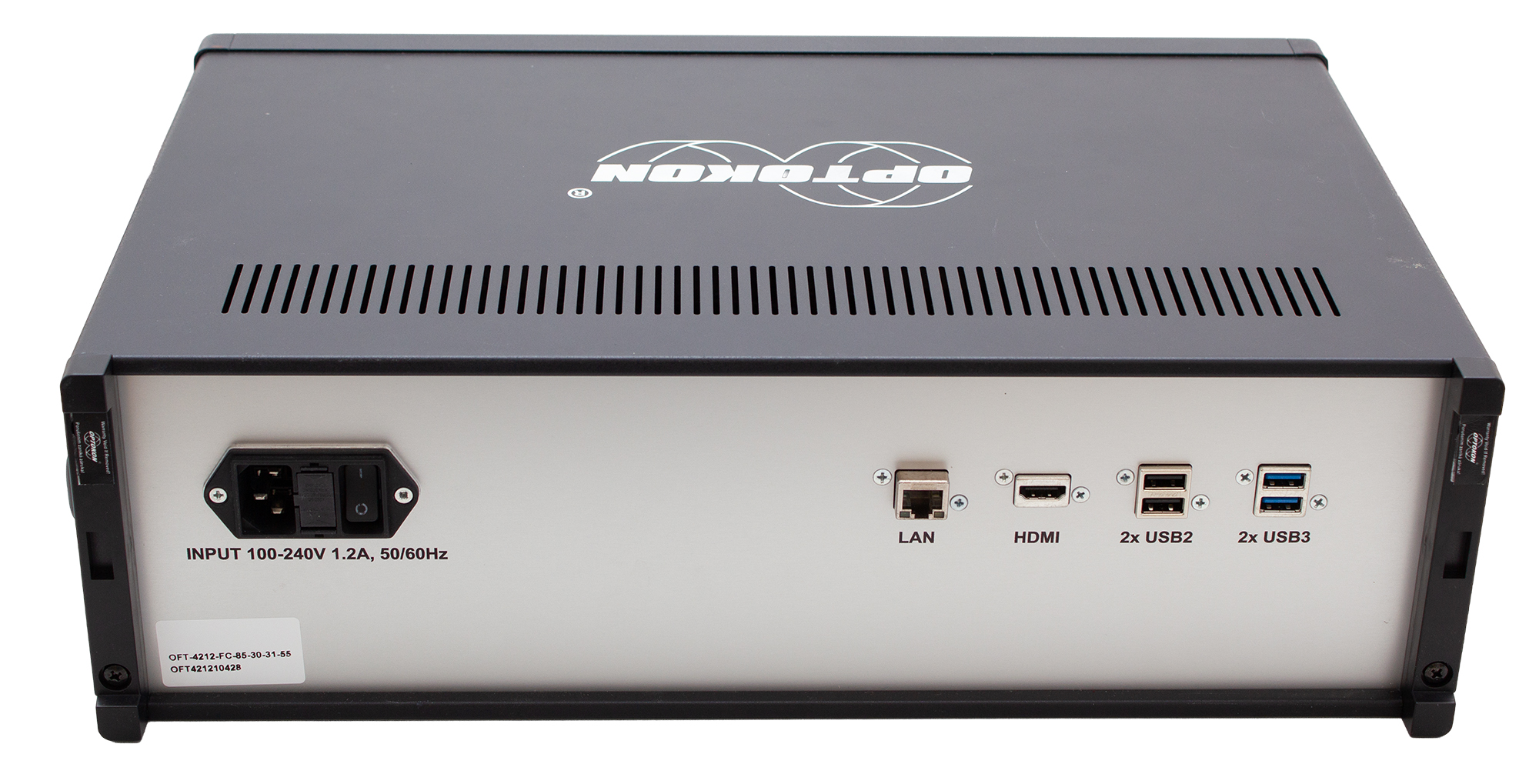

OFT-4212 is a connector assembly test station, equipped with set of Light sources, four channel power meter and control unit with touch display. This solution provides full automated test of up to four fiber connector with graphical guidance. Serial numbers of tested connectors can be entered manually or by code reader. Measured values are checked if they are within expected range, then displayed in GREEN or RED color as a warning. The automated test consists of three simple steps, Optical power referencing, Entering serial number and Insertion loss measurement. The measured data are automatically stored on local SSD.
OFT-4212 Fiber optic 4 channels optical test station
Accessories:
Standard:
- OFT-4212 Loss Test Set
- 4x FC/PC Output adapters
- 4x 2.5 mm universal Input adapters
- Manual
- Calibration certificate
- Hard carry case
- AC power cord, EU plug
Options:
- IN/OUT adapters
- Master patchcords
| Light source | |
| Interface | FC/APC |
| Working wavelengths | 850, 1300, 1310, 1550 nm |
| Wavelength accuracy | ± 2.0 nm |
| Wavelength stability, 24 hrs | ± 0.1 nm |
| Output power | 0 dBm |
| Accuracy | ± 0.2 dB |
| Power meter | |
| Interface | FC, SC, LC, universal 2.5 mm or 1.25 mm |
| Photodetector | InGaAs Ø 1mm |
| Spectral wavelength | 850-1700 nm |
| Calibrated wavelengths | 850, 1300, 1310, 1550 nm |
| Dynamical range | +10 dBm to -65 dBm |
| Uncertainty | ± 5 % |
| Resolution | 0.01 |
| Displayed units | dBm, dB |
| General | |
| Dimensions (W x D x H) | 455 x 290 x 135 mm |
| Weight | 5.6 kg |

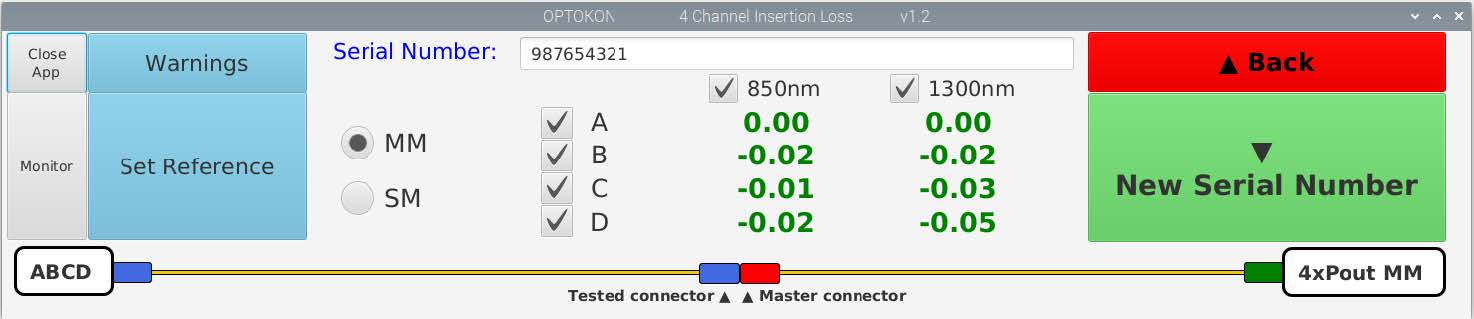

Automated connector test with Insertion loss at 850 nm and 1300 nm for Multimode, and 1310 nm and 1550 nm for Single mode fibers:

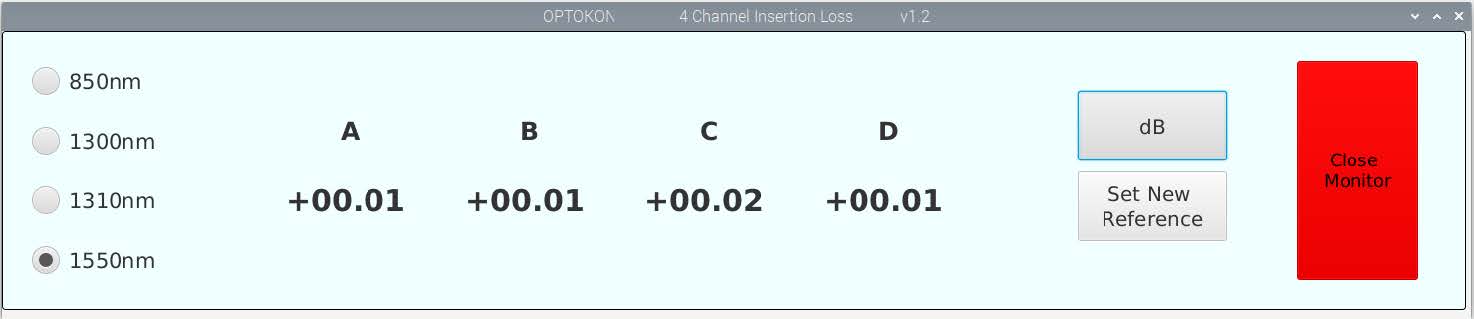

This device can also serve as a simple Light source and Optical power meter for absolute and relative monitoring:
