SFT-A In-Line attenuator Wavelength Independent

The SFT-A In-Line attenuators provide a fixed level of attenuation and feature excellent return loss in wide range of working wavelengths. Low cost and performance determine them for universal using in optical networks.

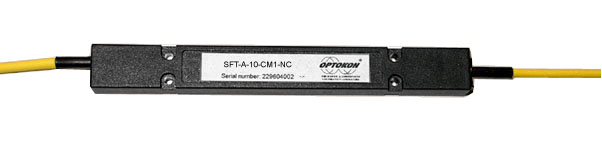

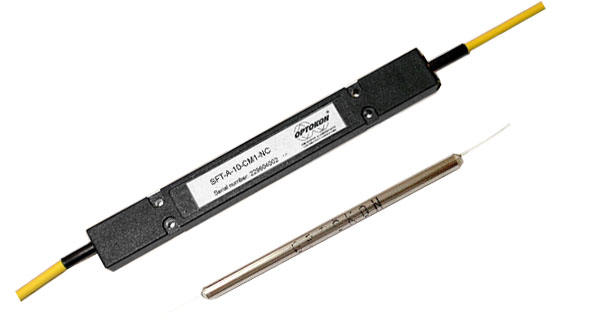

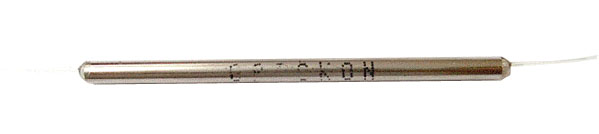

The SFT-A attenuator can be used as attenuation patchcord – cable 2.8 mm or secondary coated fiber 0.9 mm and primary coated fiber installed inside the splice cassette.

  • Features
  • Specifications
  • Application
  • Documents
  • Return loss
    • UPC > 50 dB
    • APC > 60 dB
  • Attenuation according to definition
  • Low ripple broadband design for operation at wavelength range 1250 to 1650 nm
  • Fiber (primary coated) or cable version
  • Patchcord with connector according to specification

ITEM



Operating Wavelength, nm

1250 – 1650

Attenuation range*, dB

1, 2, 3, 5, 10, 15, 20

Return Loss, dB

UPC > 50

APC > 60

Operating Temperature, °C

-40 to +85**

Storage Temperature, °C

-50 to +85**

Note:    *) Other attenuation on request

            **) Depends on the cable type

  • Fiberoptic systems
  • Receiver padding for optical receiver protection
  • Optical power equalization
  • Linearity and dynamic range testing in laboratory equipment

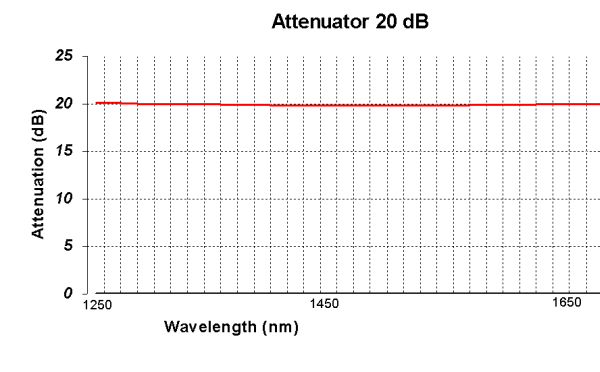

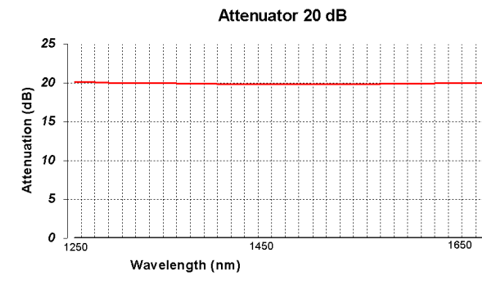

Wavelength characteristic of 20 dB Attenuator
