The In-Line attenuators provide a fixed level of attenuation and feature excellent return loss. Low cost and performance determine them for universal using in optical networks.

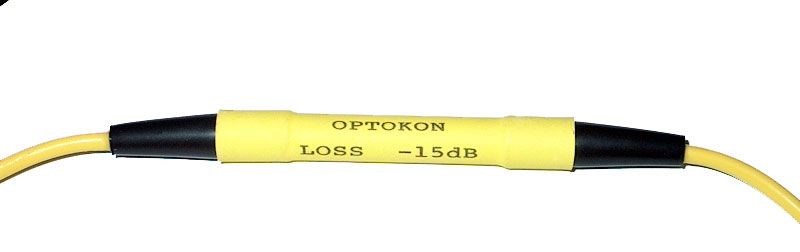

In-Line Attenuators
- Return loss > 50 dB
- Insertion loss on customer´s demands

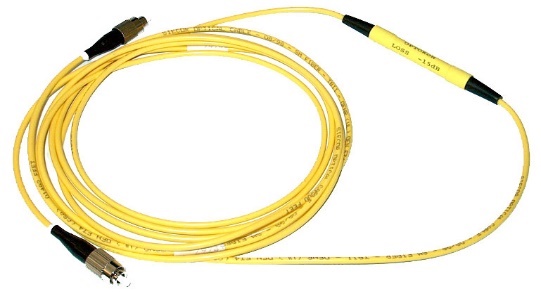

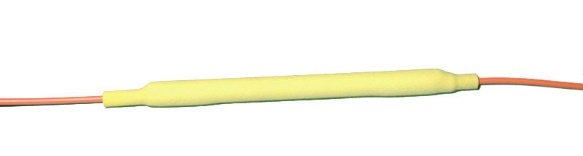

- Fiber or cable version

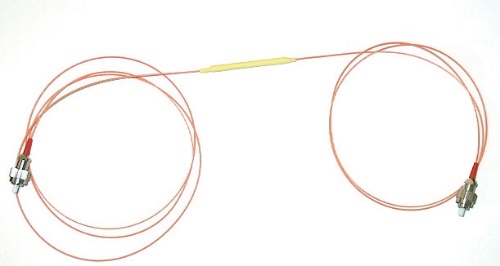

- Pigtail with connector by specification
| Loss | 5, 10, 15, 20, 25, 30 dB ±10% |
| Wavelength SM | 1310 nm, 1550 nm, 1625 nm |
| Wavelength MM | 1300 nm, 850 nm |
| Return loss | > 50 dB |
| Type | Fiber, Cable |
| Length | by specification |
| Operation temperature1 | -40 to 75°C |
Note: 1) conditioned by cable type: standard -5 to +50°C, extended on request
- Fiber optic systems
- Receiver padding for optical receiver protection
- Optical power equalization
- Linearity and dynamic range testing in laboratory equipment
