The Visible Pen is used to check or identify singlemode and multimode optical fibers & components. The universal adapter is suitable for every 2.5 mm or 1.25 mm fiber optic connector. The small, compact and handy housing makes the device suitable for daily use.

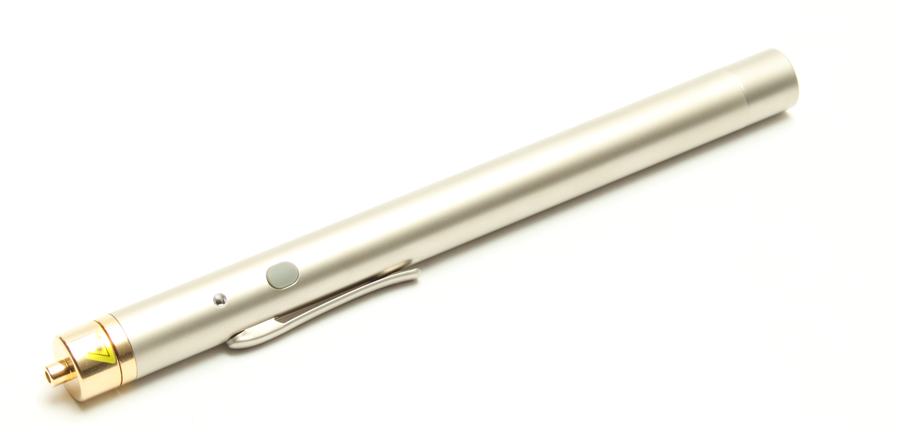

VSP-03 Visible Pen - Laser Diode
- Suitable for every 2.5 mm or 1.25 mm fiber optic connector
- Suitable for daily use
- Singlemode and multimode optical fibers & components
| Wavelength | 630 - 680 nm |
| Output power single mode | ≥ 0.3 mW |
| Output power multimode | ≥ 1.0 mW |
| Distance | up to 5 km |
| Operation Mode | CW, Pulse, ON/OFF |
| Laser Class | 3R |
| Dimensions length | 168 ± 2 mm |
| Dimensions diameter | 13.5 mm |
| Batteries | Alkaline AAA , 2 pcs |
| Suitable fiber optic connectors VSP-03-250 | E2000, FC, SC, ST, LSA, … standard 2.5 mm ferrule |
| Suitable fiber optic connectors VSP-03-125 | LC, MU, LX5, …SFF 1.25 mm ferrule |
| Operating Temperature | -10 °C to +50 °C |
| Storage Temperature | -40 °C to +70 °C |
The Visible Pen is used to check or identify singlemode and multimode optical fibers & components.
TEQ_01-11_EN-VSP-03
