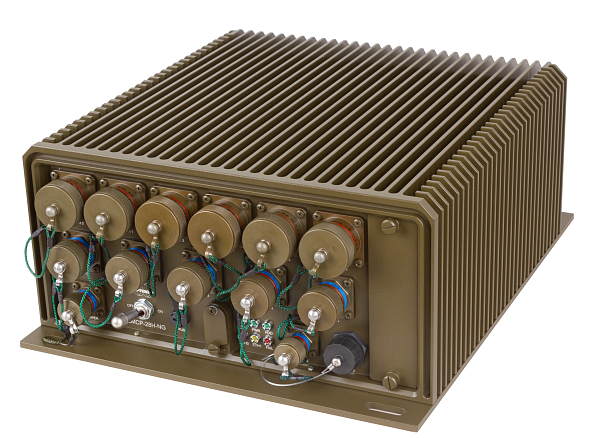

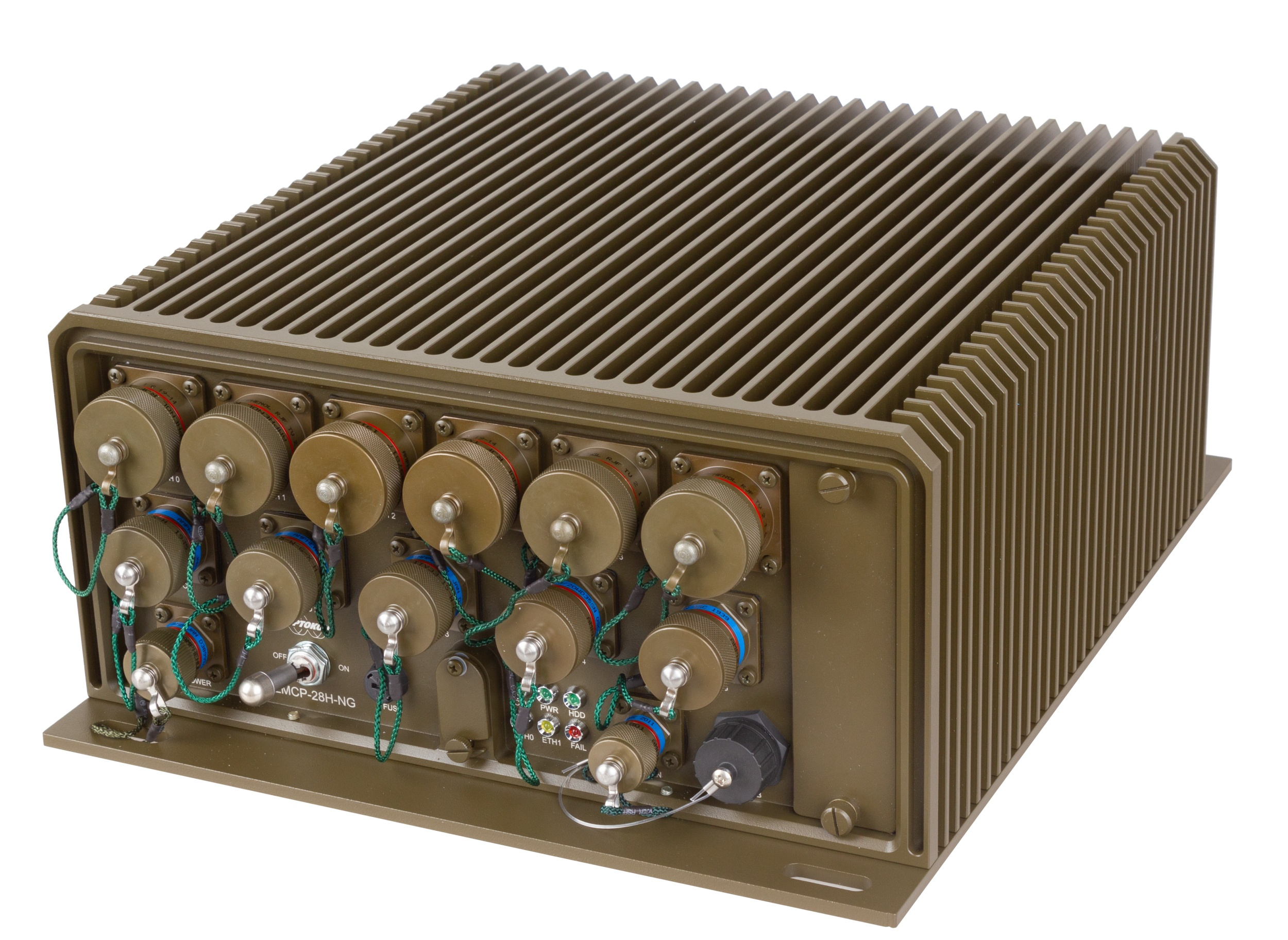

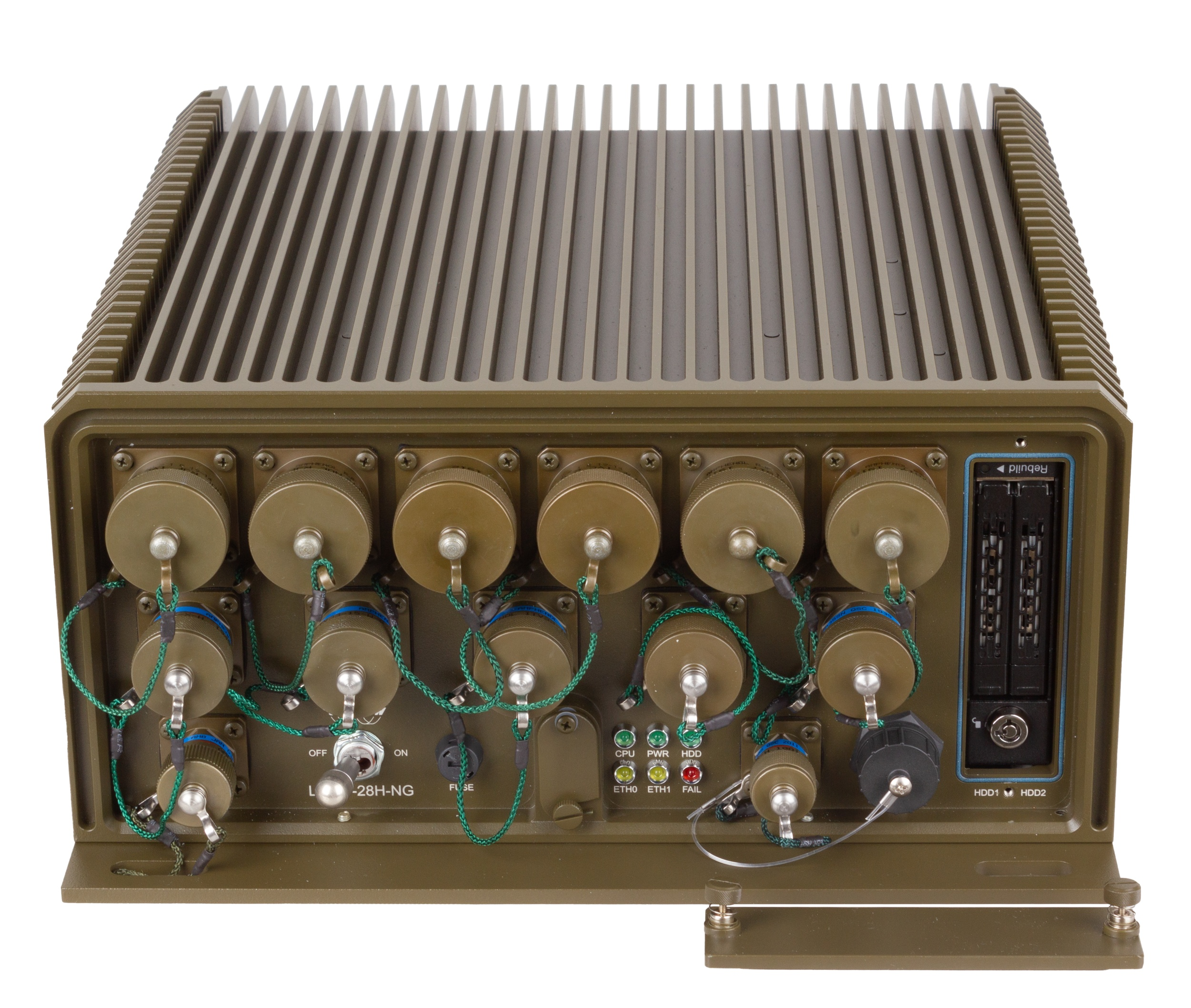

LMCP-28H-xxC-NG

OPTOKON introduces the new generation of the highly versatile LMCP-28H-NG mobile computer platform, which provides a powerful and rugged network router, network switch, server, and VoIP PBX in a compact form factor. As the central node of a mobile data network, it delivers an integrated and versatile communication server for military, security, C4ISR, and other network-centric communication systems.

The system is equipped with a powerful processor, offering exceptional value and unmatched performance-per-watt density in an SoC package, high-capacity RAM, two removable SSD drives, and a wide range of connectivity ports for both fiber-optic and copper-based connections. The LMCP is available in a rugged enclosure that meets all requirements for a communication system used in demanding climatic conditions. The fiber-optic port is fitted with a robust HMA connector based on Expanded Beam technology, enabling all the benefits of high-speed data transmission to be fully utilized in field conditions.

  • Two removable SSDs
  • 2× tray-less hot-swap SATA mobile rack
  • iData Guard for abnormal power failure

I/O

  • Up to 7 routed 1G ports, one of them 10G WAN
  • Linux-based router with RIP v1/v2 and OSPF v2 support
  • 9× USB 2.0 and 1× USB 3.0
  • 8× RS-232 serial interfaces
  • CAN bus, high-speed CAN transceiver 82C251
  • VGA video port

Switch

  • 8× 1G LAN with PoE+, multi-connector
  • 1× 1/10G

Management & Monitoring

  • IPMI with dedicated LAN; supports Intelligent Platform Management Interface v2.0 with virtual media over LAN and KVM-over-LAN
  • Hardware monitoring (CPU, temperature, voltage, errors, …)
  • Hardware notifications via email and SNMP traps
  • Power Consumption
  • Nominal: 75 W
  • Maximum load: 120 W + PoE consumption 60 W

For more specifications, please contact us. Due to the sensitive nature of these systems we do not publish full technical data online.

Our solutions keep people and data connected where standard gear gives up. Built for extreme temperatures, dust, moisture, vibration, and electromagnetic stress—ready for rapid field deployment and long-term operation in critical infrastructure.
